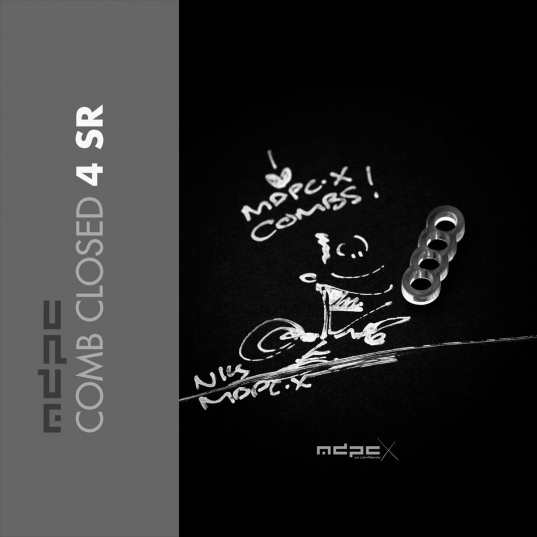

Product information "Cable-Comb TRANSPARENT C-4-SR"
4-pin Single-Row (SR) CLOSED cable-combs in transparent are made by Garett Fraser in South Africa. CLOSED cable combs can only be applied to your cables by passing through an open end of your cable through the cable comb. The CLOSED cable comb will hold your sleeved cables absolutely secure. Transparent cable combs in the CLOSED version work best if you mainly use cable sleeving in real colors (not only black or white). With colored cable sleeves, the transparent cable comb will always be the least distracting choice.
Only the most advanced, latest generation acrylic materials are used to achieve an amazing strength at a thickness of only 2.9 mm. This reduced cable comb thickness is the key for our cable comb philosophy that the obtrusion of the cable sleeving flow is minimized by the application of combs. Cable combs should only serve the function to guide your cables only as much as absolutely necessary and be used as minimal as possible.
The CLOSED cable comb holes have a diameter of 3.8 mm, which naturally limits your sleeved cables to an outer diameter of 3.8 mm in order to fit into the cable comb. MDPC-X cable sleeving adds 1.1 mm to 1.2 mm to the outer diameter of your wire. Combined with MDPC-X 15 AWG wire (2.50 mm OD), you have a perfectly matching diameter of ~3.7 mm. Combined with MDPC-X 17 AWG wire (2.0 mm OD), you have a the minimum necessary diameter of 3.2 mm. With standard wire sizes found on today’s power supplies (16 AWG or 18 AWG between 2.1mm and 2.6mm) in combination with MDPC-X cable sleeves, you will also be in the needed diameter range for our cable combs.
ATTENTION: Our cable combs are sometimes delivered with protective foil on one side of the cable comb. Make sure to peel the protective foil off.
