Crimping & Connectors
We only offer crimp terminals and connectors made by the world's leading manufacturers: MOLEX, Amphenol and WST. These manufacturers don't compromise. These products are all about precision, function, safety and performance.
Originally created for computers, ATX / EPS / PCI-E (Mini-Fit-Jr) connectors and housings can be used in many other electrical situations and applications. The Mini-Fit-Jr series is specified for up to 600 Volt and 9 Ampere per crimp terminal (!) connection. With these, you can create (modular) custom cables to power objects only limited by your imagination.
Example: Modification of a cable for any device (charger etc.) by using ATX connectors / housings, while keeping the original plugs (power plug, device plug etc.) on both ends:
- You could cut away a section of an existing power cable between both connectors.
- Keep about (e.g.) 10 cm of the original cable (which has multiple wires inside) on both original connectors!
- Strip about (e.g.) 5 cm of the cable ends' outer insulation to get access to the multiple inner wires.
- Strip about 0.3 cm of each inner wire for the crimp terminal connection.
- Crimp the FEMALE ATX crimp terminals onto all inner wires for the use in ATX connectors.
- Insert the crimped wires into the ATX connectors.
- Now you can create a custom extension cable between both ATX connectors: Use MALE ATX crimp terminals and ATX housings on both ends of the custom cable.
- Make sure to not accidentally change the original electrical function of each wire (+, -, ground, etc.) on your final power cable. Plan well and test with a multimeter.

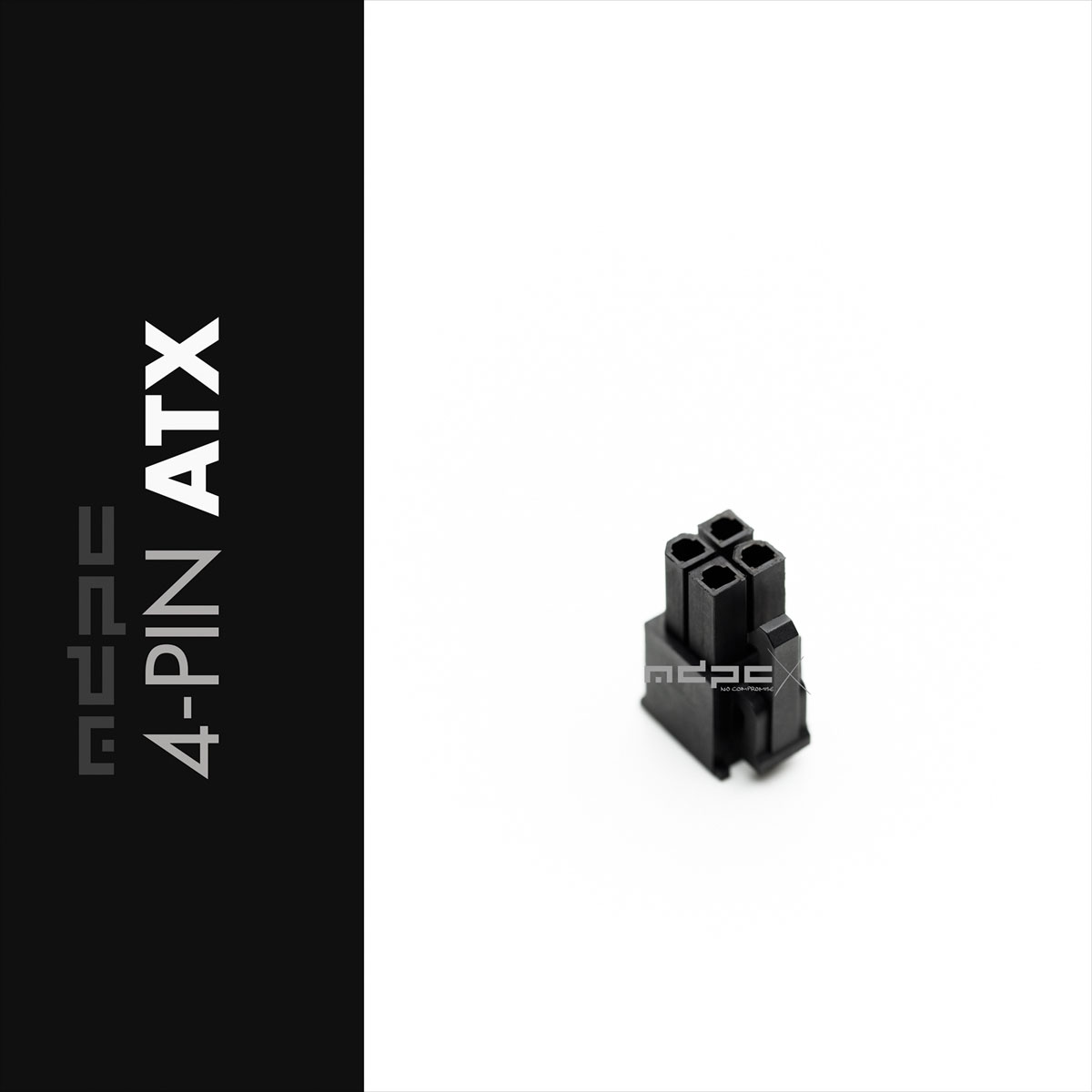

4-pin Connector ATX
This black 4-pin connector for ATX (and of course EPS, which is the same) is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. If you need a matching housing for this connector, you can also pick a 6-pin housing or bigger, because they are all compatible. You can use these ATX 4-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 4-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

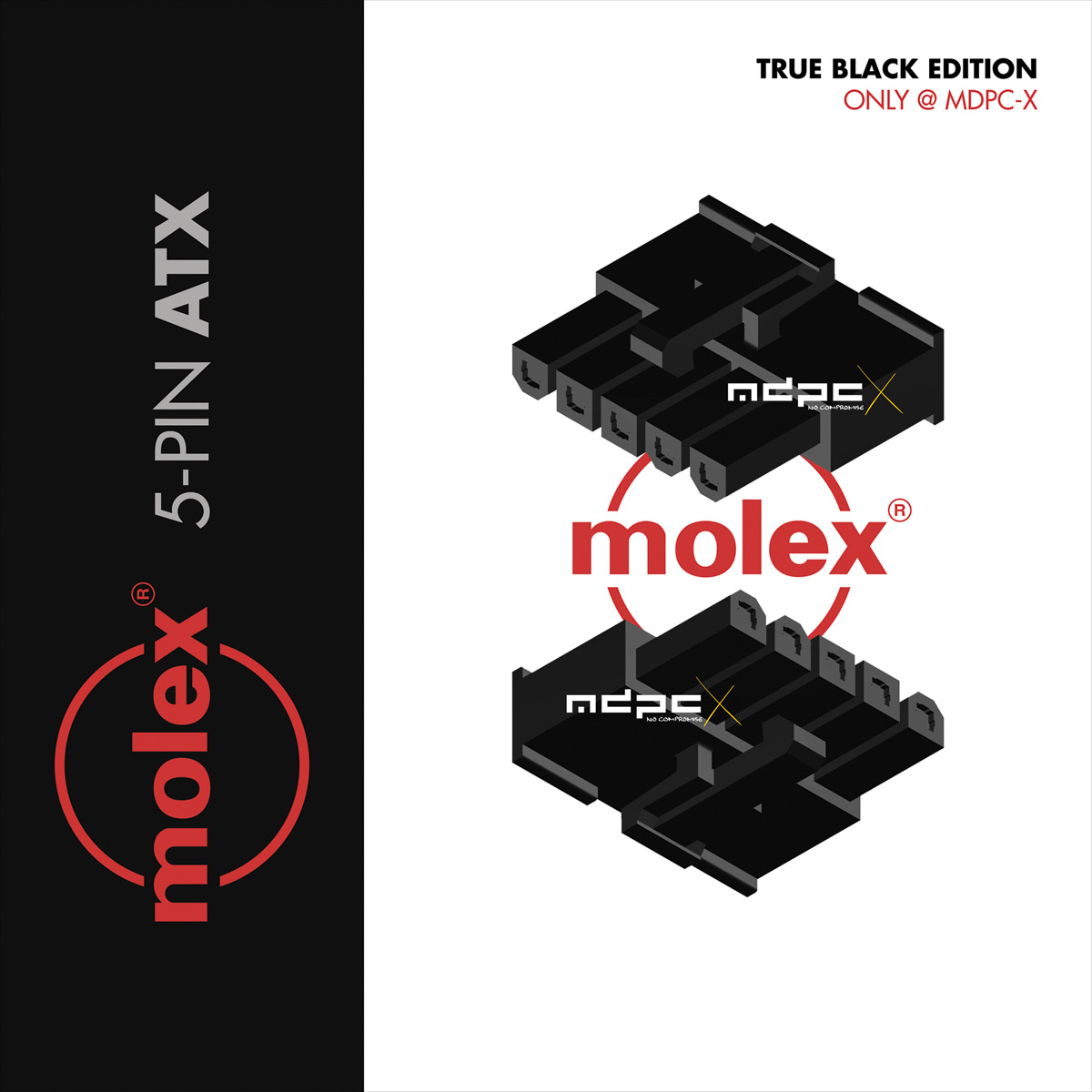

5-pin SR CM ATX Connector by MOLEX
The 5-pin SR CM (single row, center mount) ATX connector by MOLEX is the holy grail of unmatched precision and zero tolerance production in the world of connectors. This version of a 5-pin single row ATX connector has a center mount locking latch. If the latch is incompatible with your power supply, you can easily remove it or buy our other version of a single row 5-pin ATX connector with a side mounted latch. This is the highest grade in existence and a level clearly above the rest in this industry. MOLEX typically manufactures a dark blue shade as "black". The MDPC-X specific production is always black, which makes this offering a globally unique one. Manufactured in the USA and Italy at uncompromising material grades and precision levels, there is a clear difference to the compromising China manufacturers who need to compete on price. You will experience what happens when all specifications are exactly met in all components: Connectors by MOLEX, crimp terminals by MOLEX and the original Pin Remover by MOLEX. These three components in combination show you how a perfect setup works in an ideal world. You will recognize how perfectly the terminals go into the connector, how easily the Pin Remover extracts the terminals (you will be so surprised!) and how perfectly the connectors go into their counterparts. This is what originals are all about! No compromise in a different league, which you immediately feel when you combine these original products. MOLEX is the company which creates the specifications of such products and is the only company who will not compromise in any aspect when manufacturing these. You can use these 5-pin ATX connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this connector with our original ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. Enjoy the original!

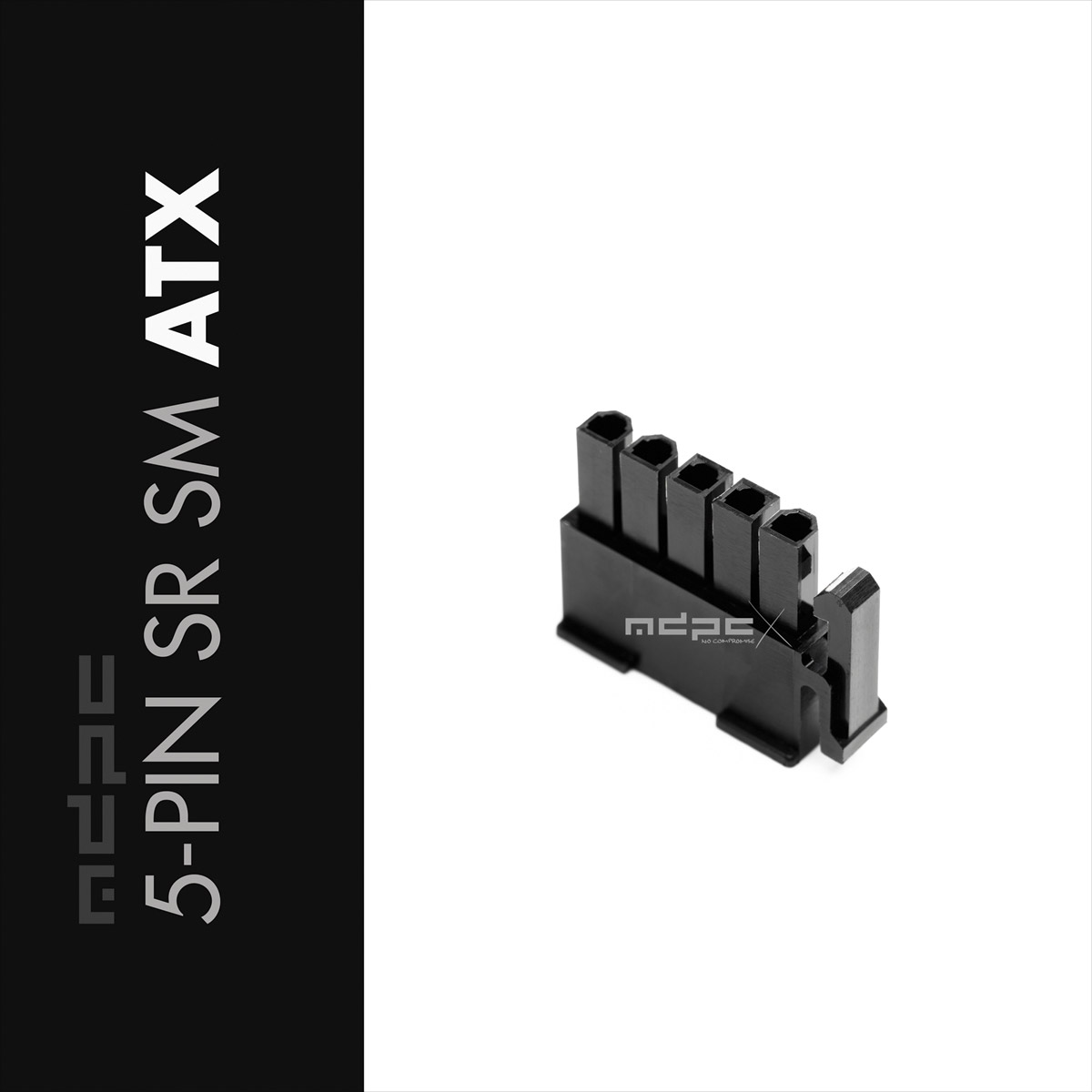

5-pin SR SM Connector ATX
This black 5-pin SR SM (single row, side mount) connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The locking latch on this version is on the side. If you need the 5-pin single row connector with the latch on the center instead, have a look at our other offering. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 5-pin single row ATX connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 5-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

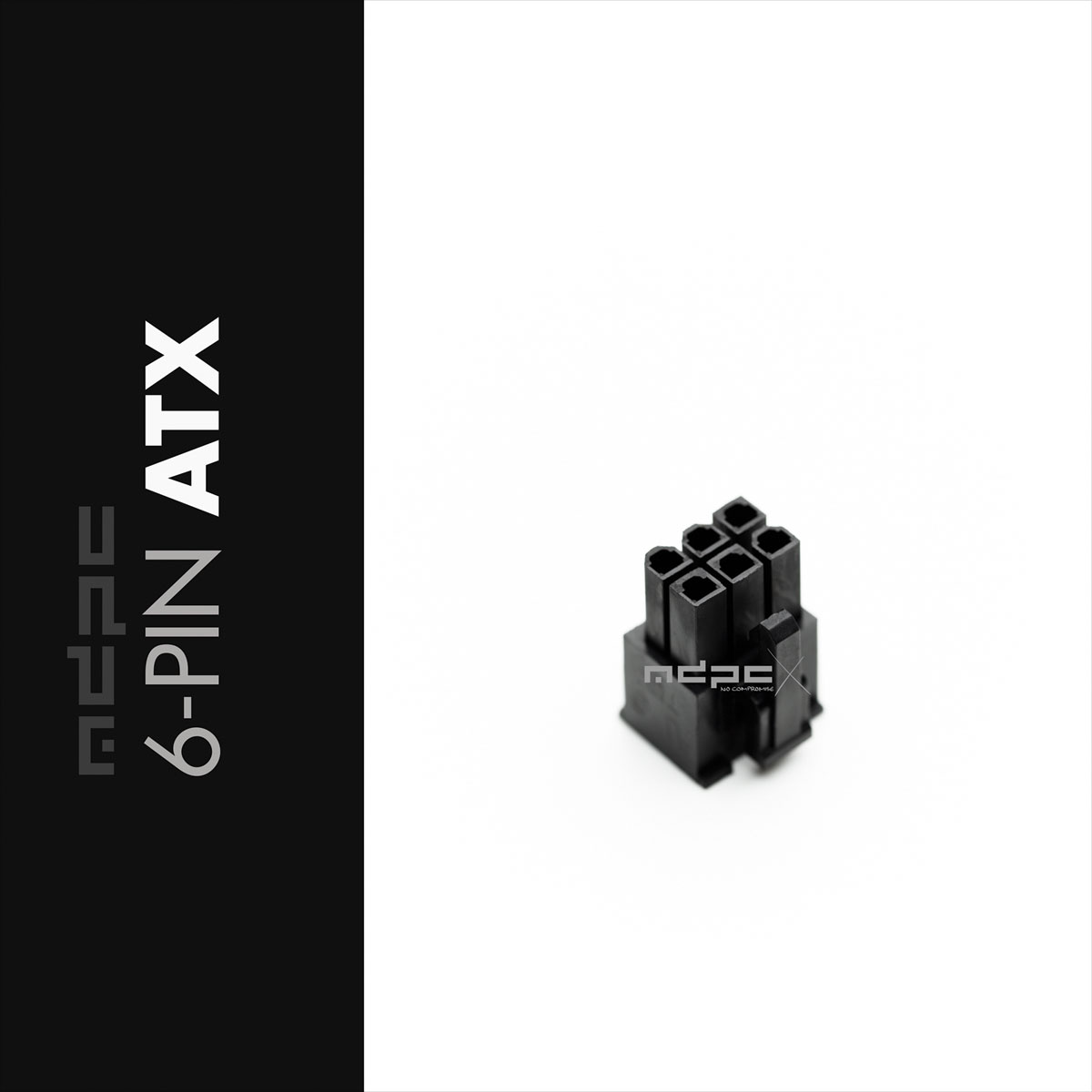

6-pin Connector ATX
This black 6-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 6-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 6-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.
8-pin Connector ATX / EPS
This black 8-pin connector for ATX (and of course EPS, which is the same, it's also a compatible replacement for 2x 4pin motherboard EPS power connectors) is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 8-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 8-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

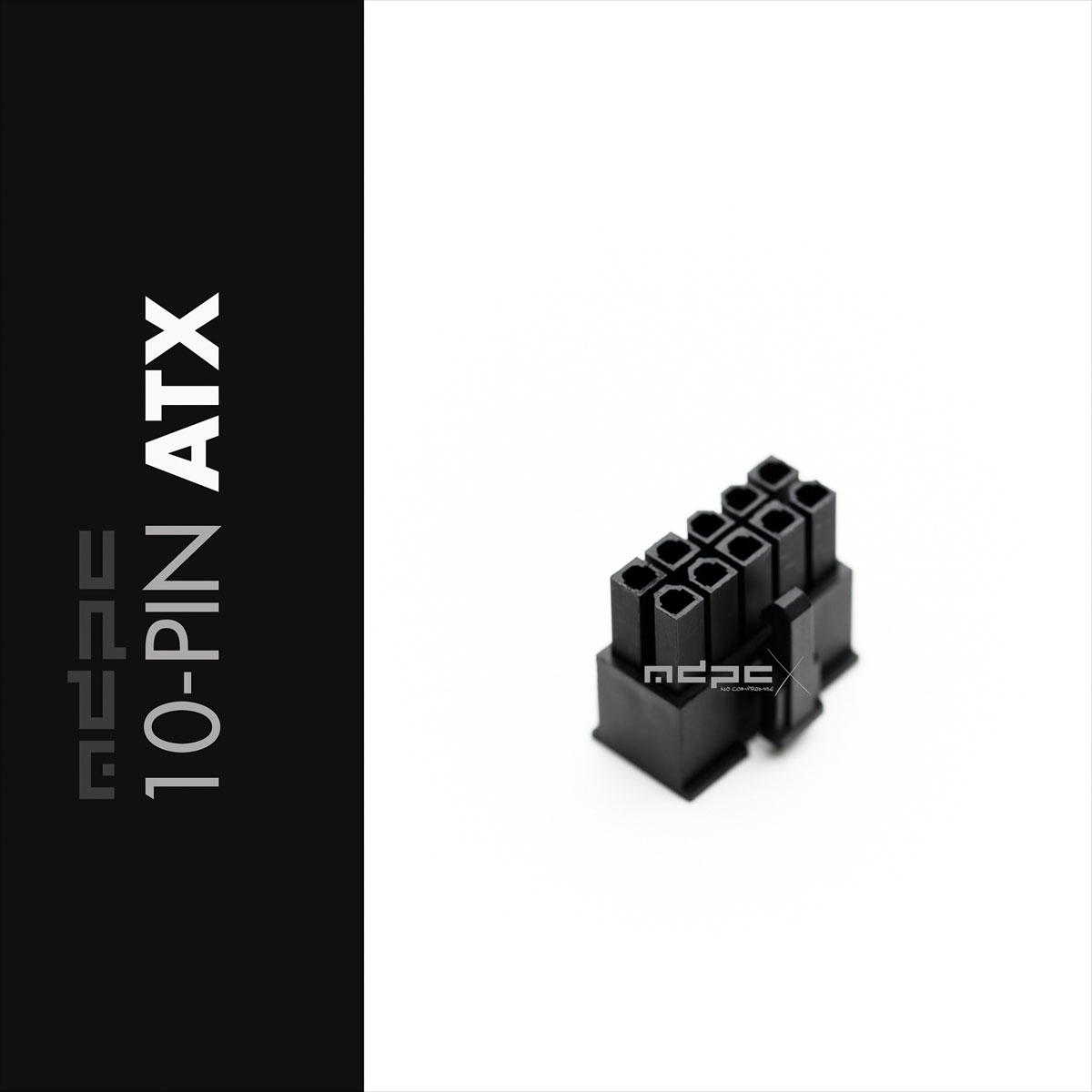

10-pin Connector ATX
This black 10-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 10-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 10-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

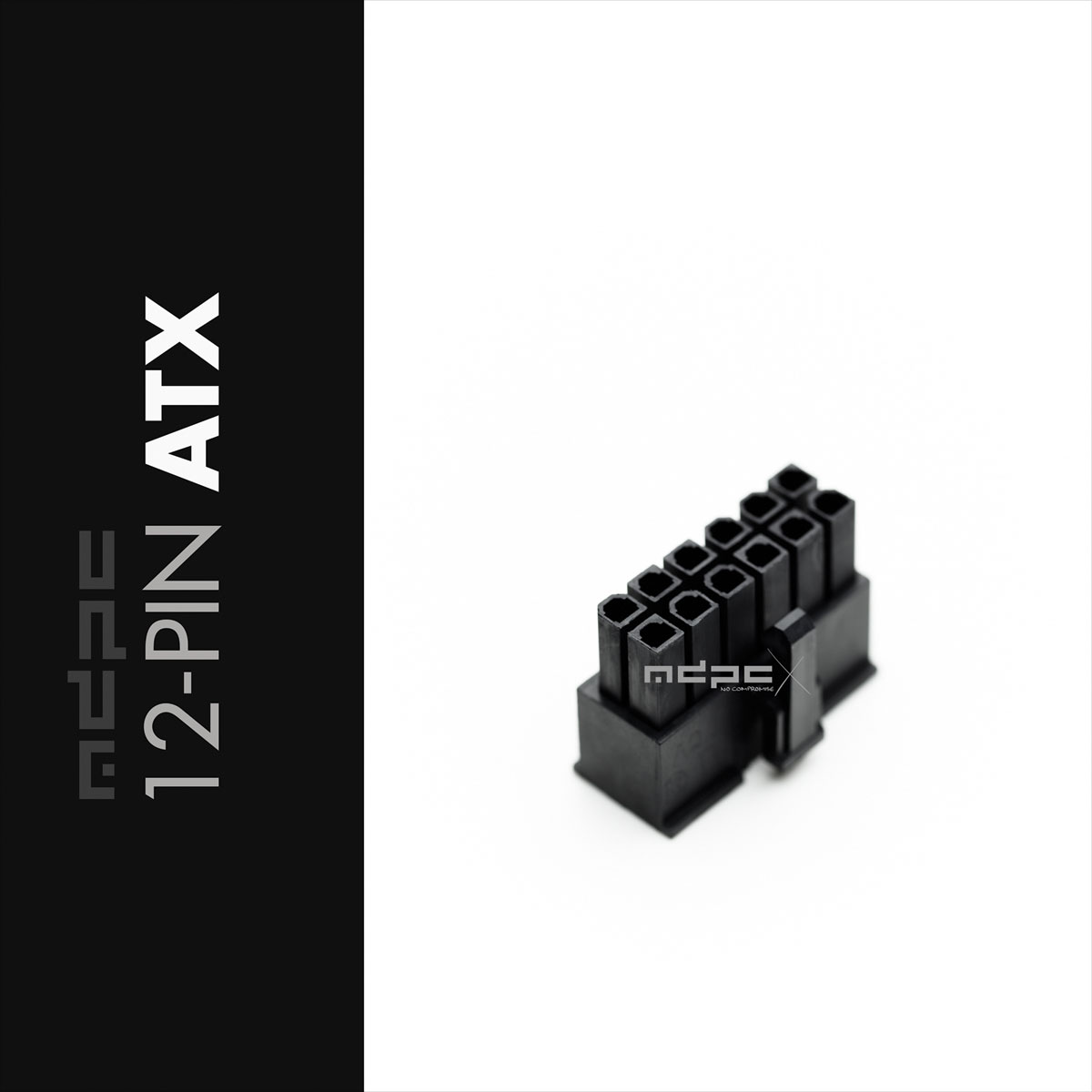

12-pin Connector ATX
This black 12-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 12-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 12-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

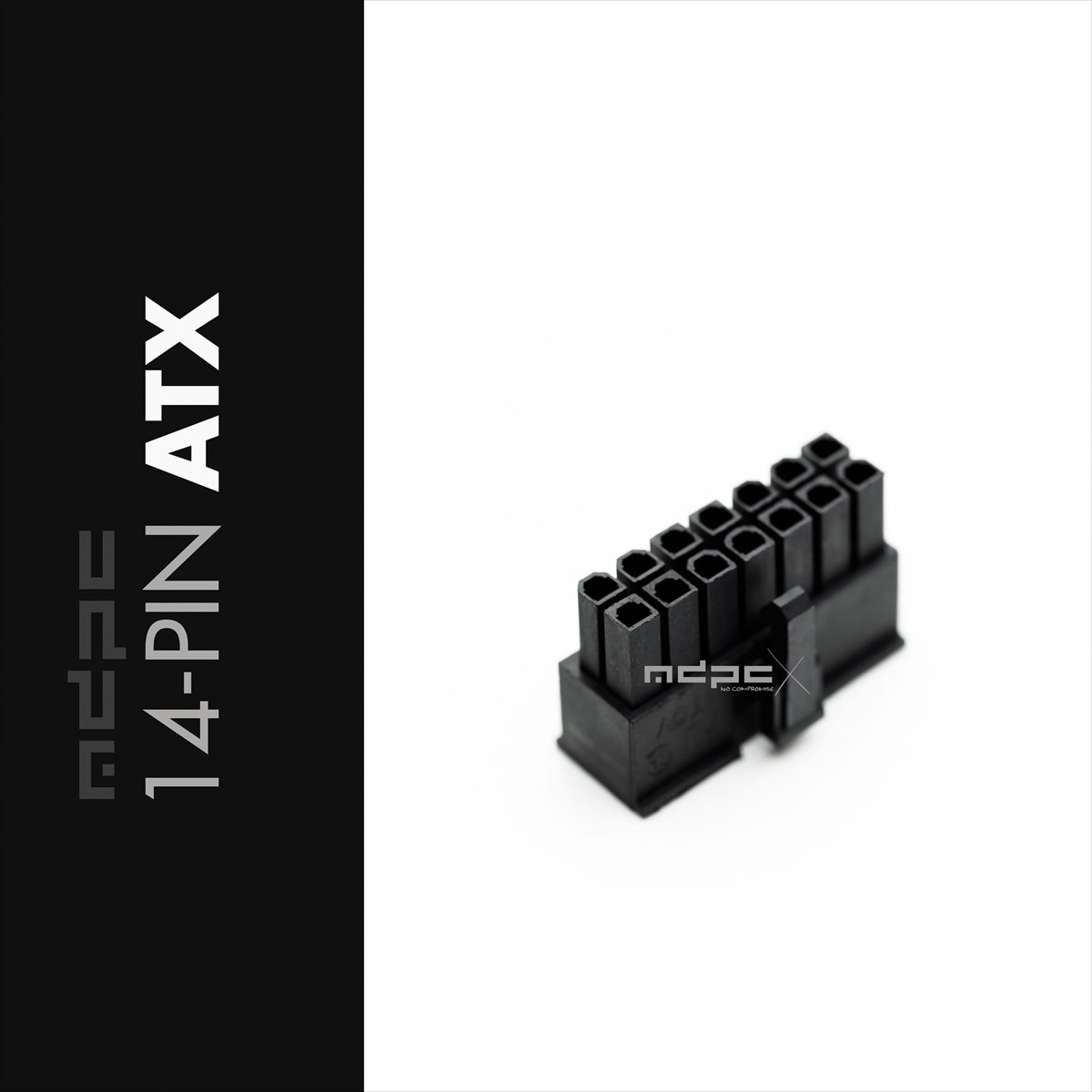

14-pin Connector ATX
This black 14-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 14-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 14-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

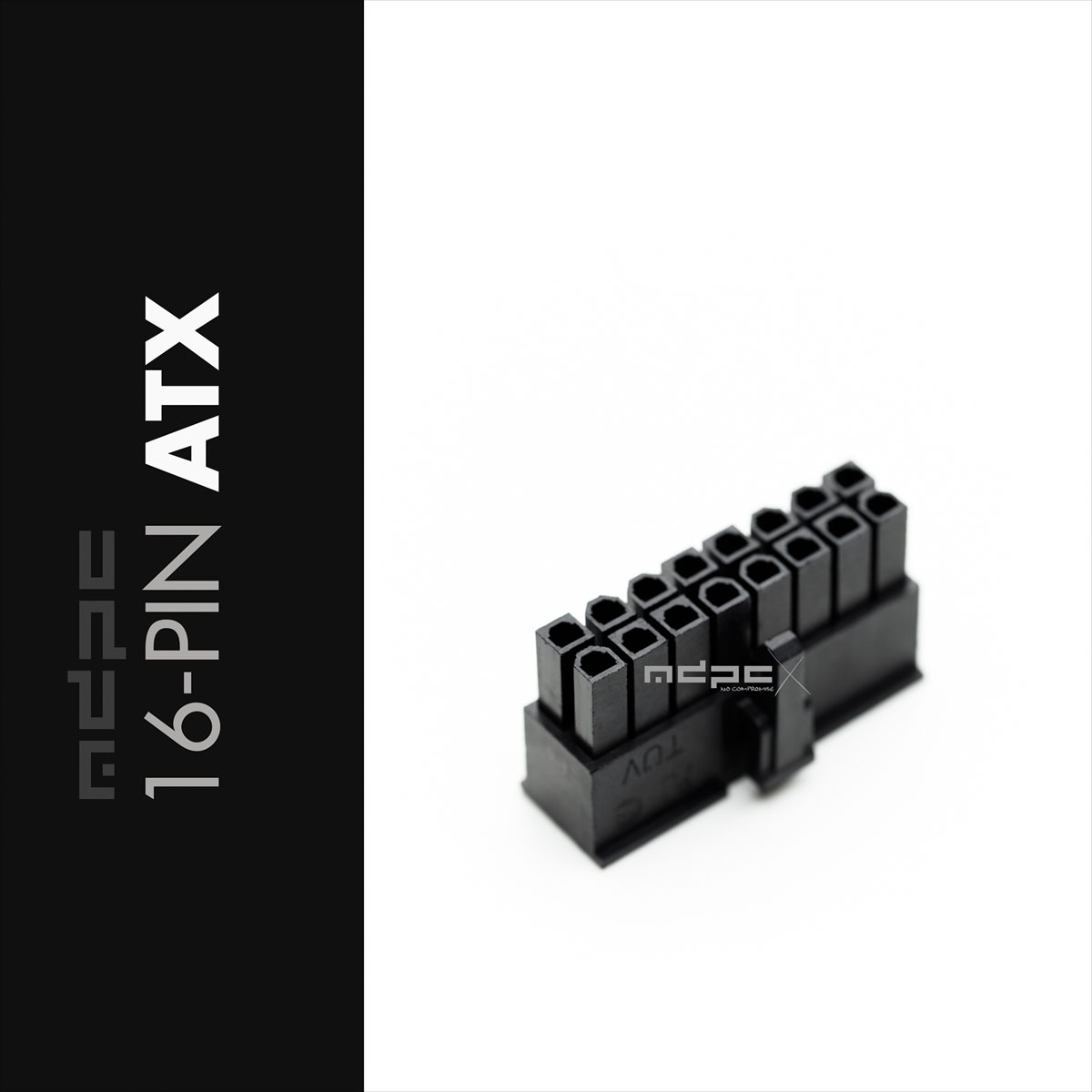

16-pin Connector ATX
This black 16-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 16-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 16-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

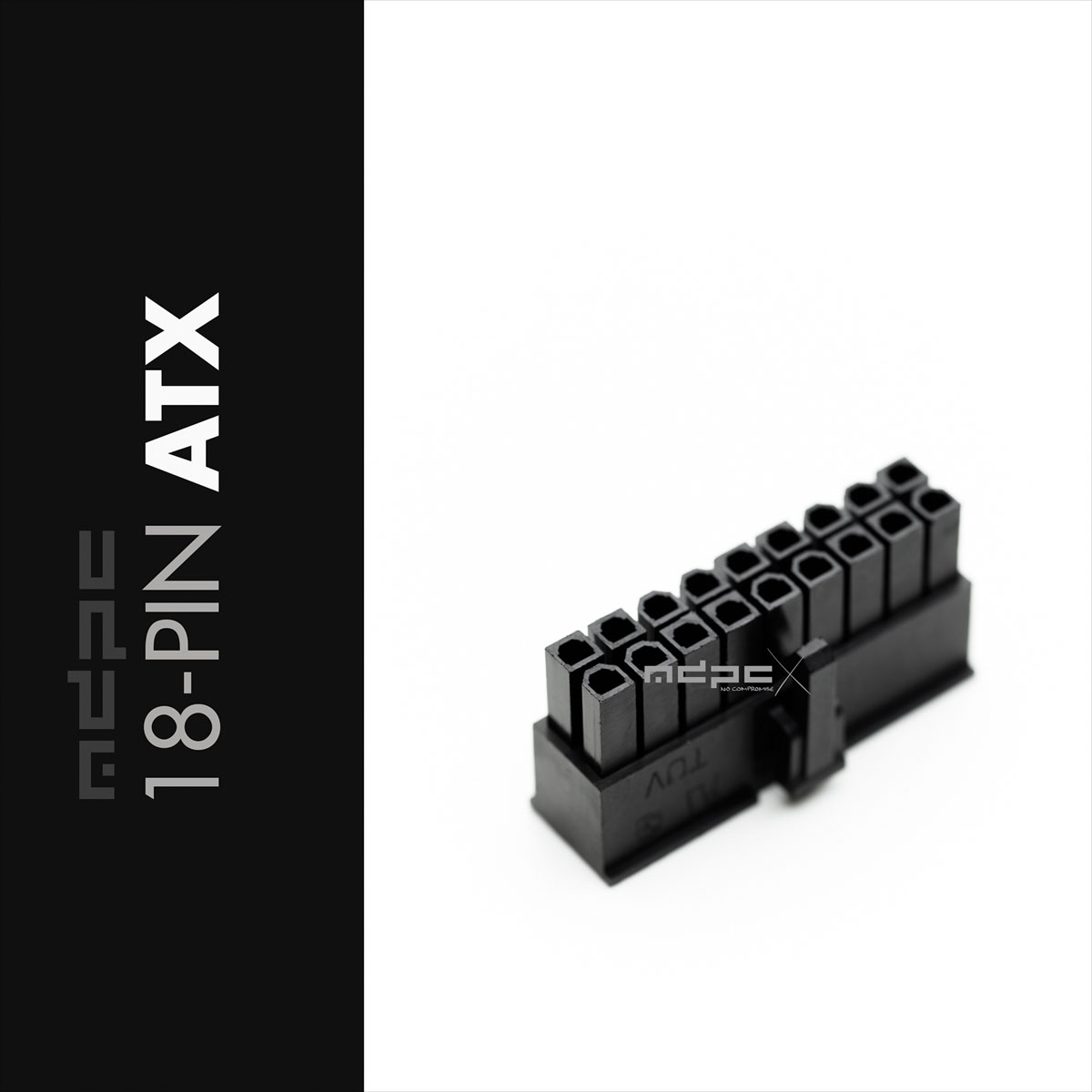

18-pin Connector ATX
This black 18-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 18-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 18-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

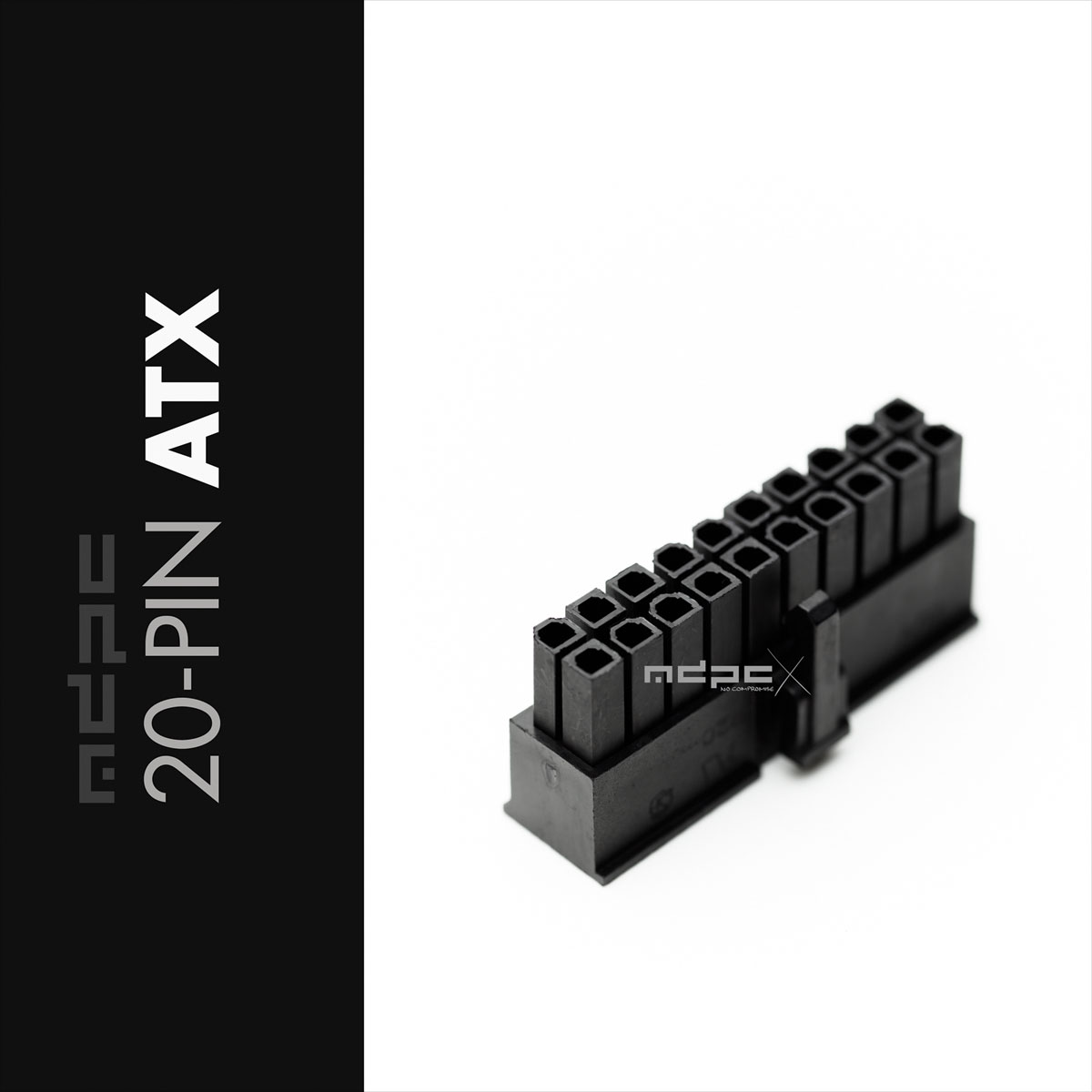

20-pin Connector ATX
This black 20-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 20-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 20-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

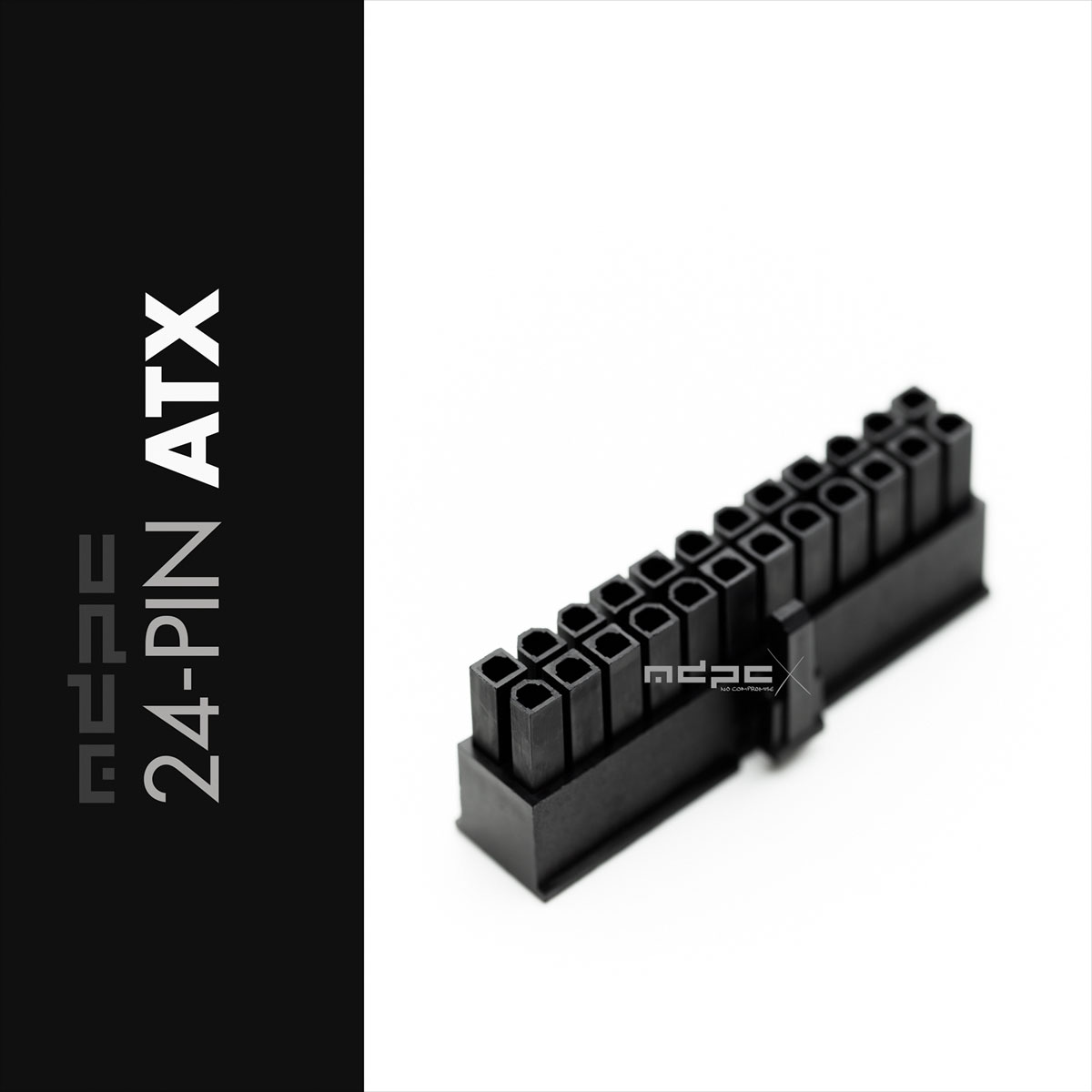

24-pin Connector ATX
This black 24-pin connector for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these connectors is extremely easy and a league above almost every connector which you find on your existing power supply. You can use these ATX 24-pin connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 24-pin connector with our original MOLEX ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

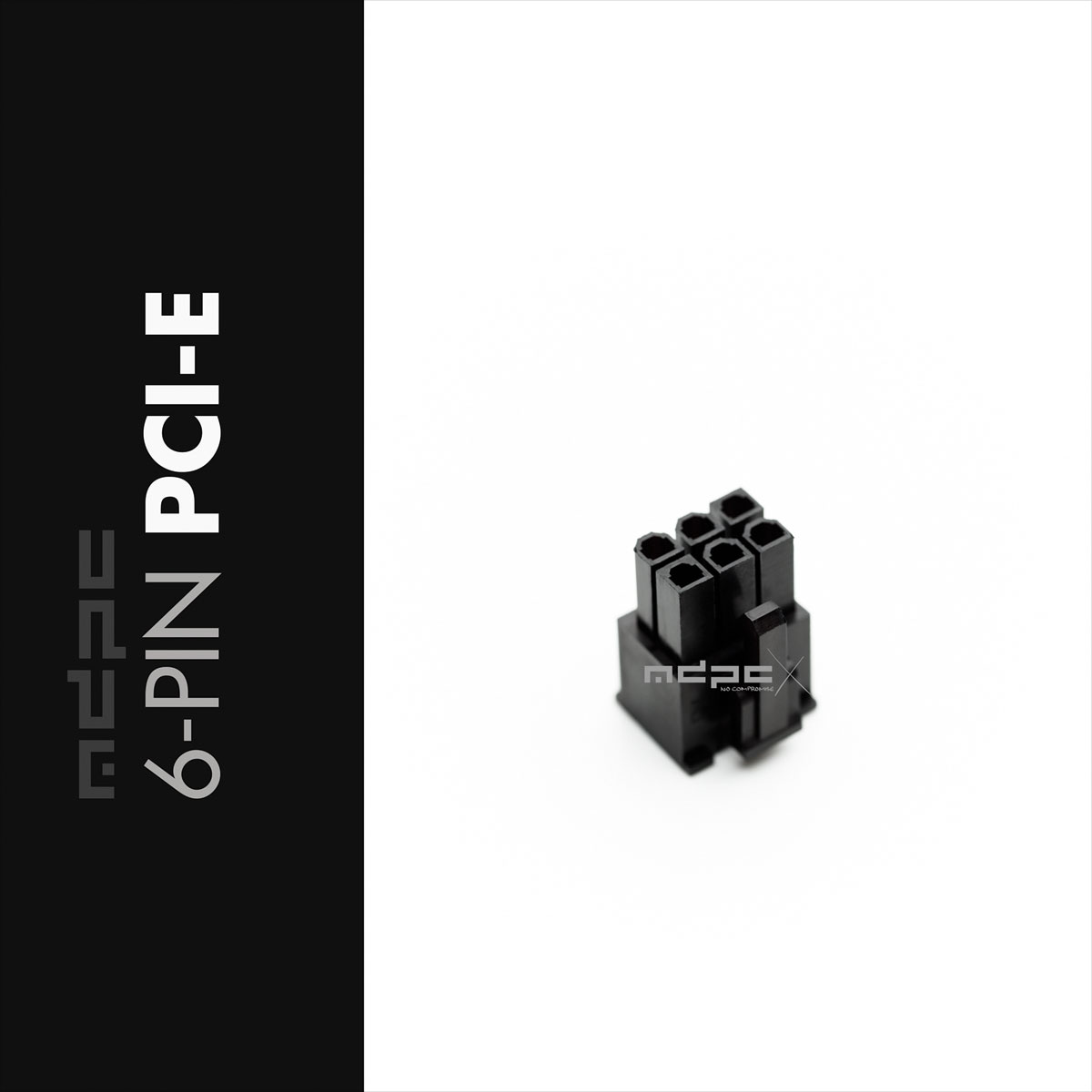

6-pin Connector PCI-E
This black 6-pin PCI-Express (PCI-E) connector is made for us in Taiwan by the second best manufacturer after MOLEX. If you need a 6-pin connector on the power supply side of a modular PSU, make sure to check if you need this 6-pin PCI-E or the 6-pin ATX version. You can use these 6-pin PCI-Express (PCI-E) connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this 6-pin PCI-E connector with our original ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

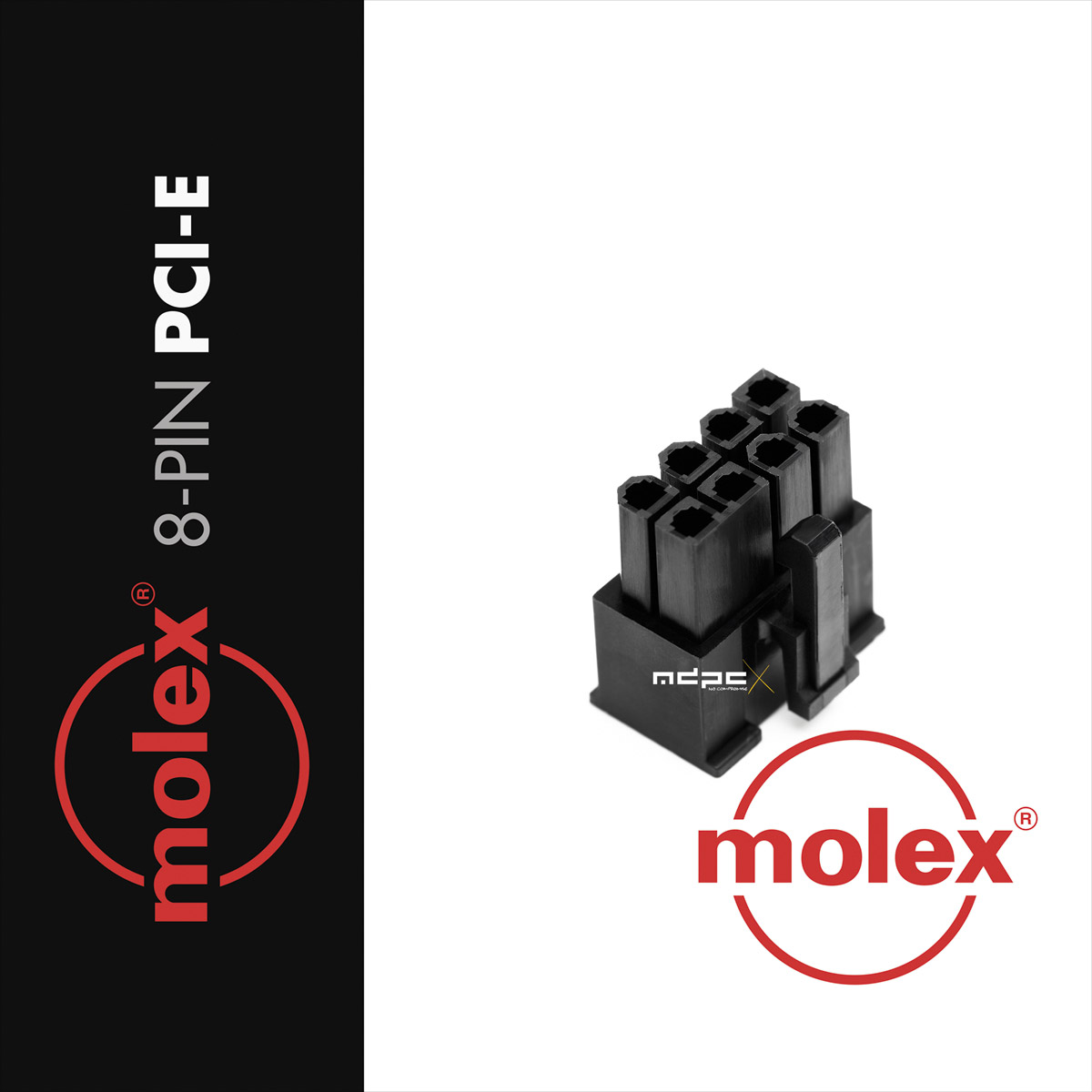

8-pin PCI-E Connector by MOLEX
The 8-pin PCI-Express (PCI-E) connector by MOLEX is best in class in the world of connectors. This is the highest grade in existence and a level clearly above the rest in this industry. If you want to create a PCI-Express cable, and use a 8-pin connector on the power supply side of a modular PSU, make sure to check if you need this one OR the 8-pin ATX version: Typically it's the ATX version on the PSU side and PCI version on the GPU side. The PCI version has a bridge between 2 of the pins-positions. ATX does NOT have this bridge between 2 pin-positions. You can use these 8-pin PCI-Express (PCI-E) connectors with existing crimp terminals already found on your wire. For absolute perfection you combine this connector with our original ATX crimp terminals FEMALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG FEMALE. Enjoy the original by MOLEX!

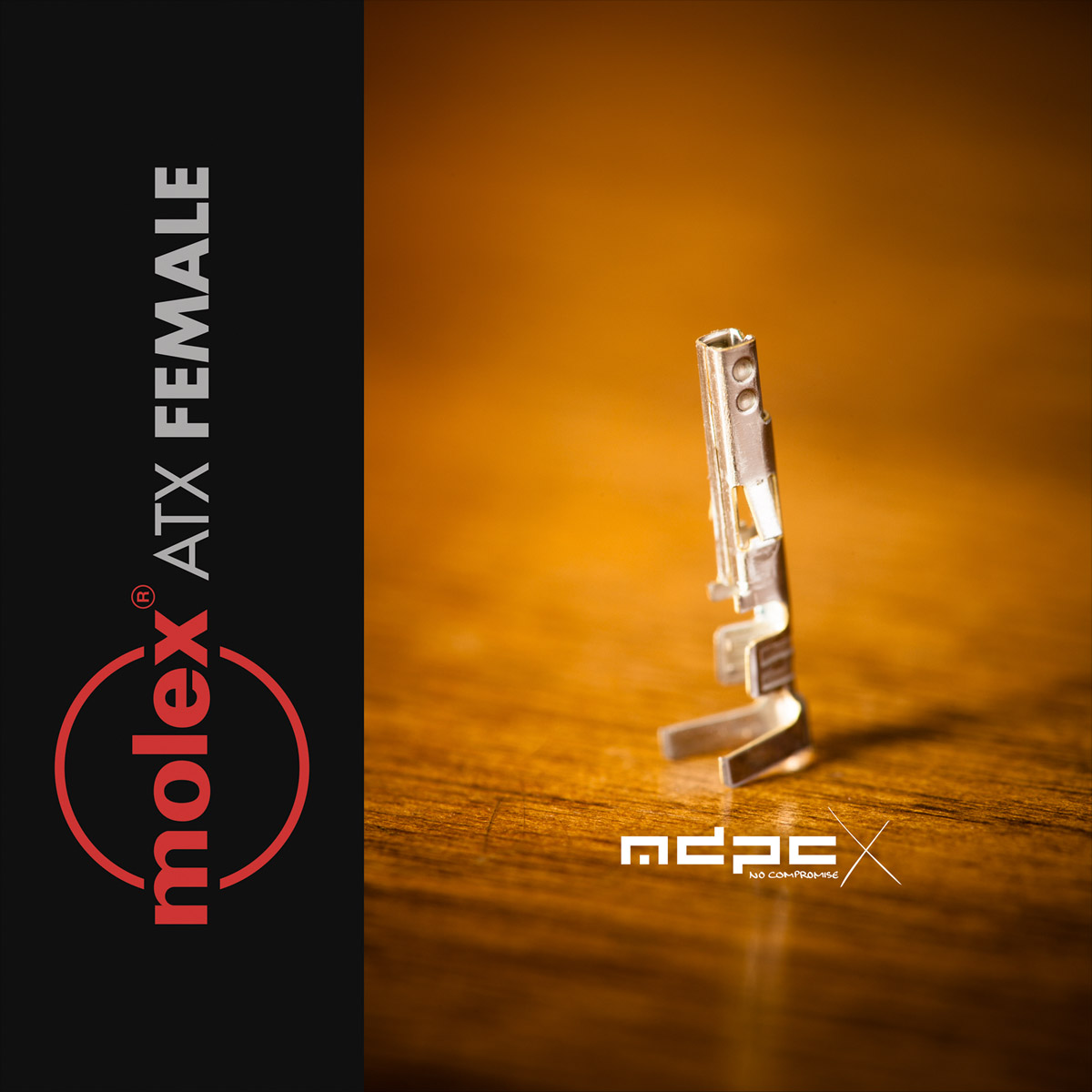

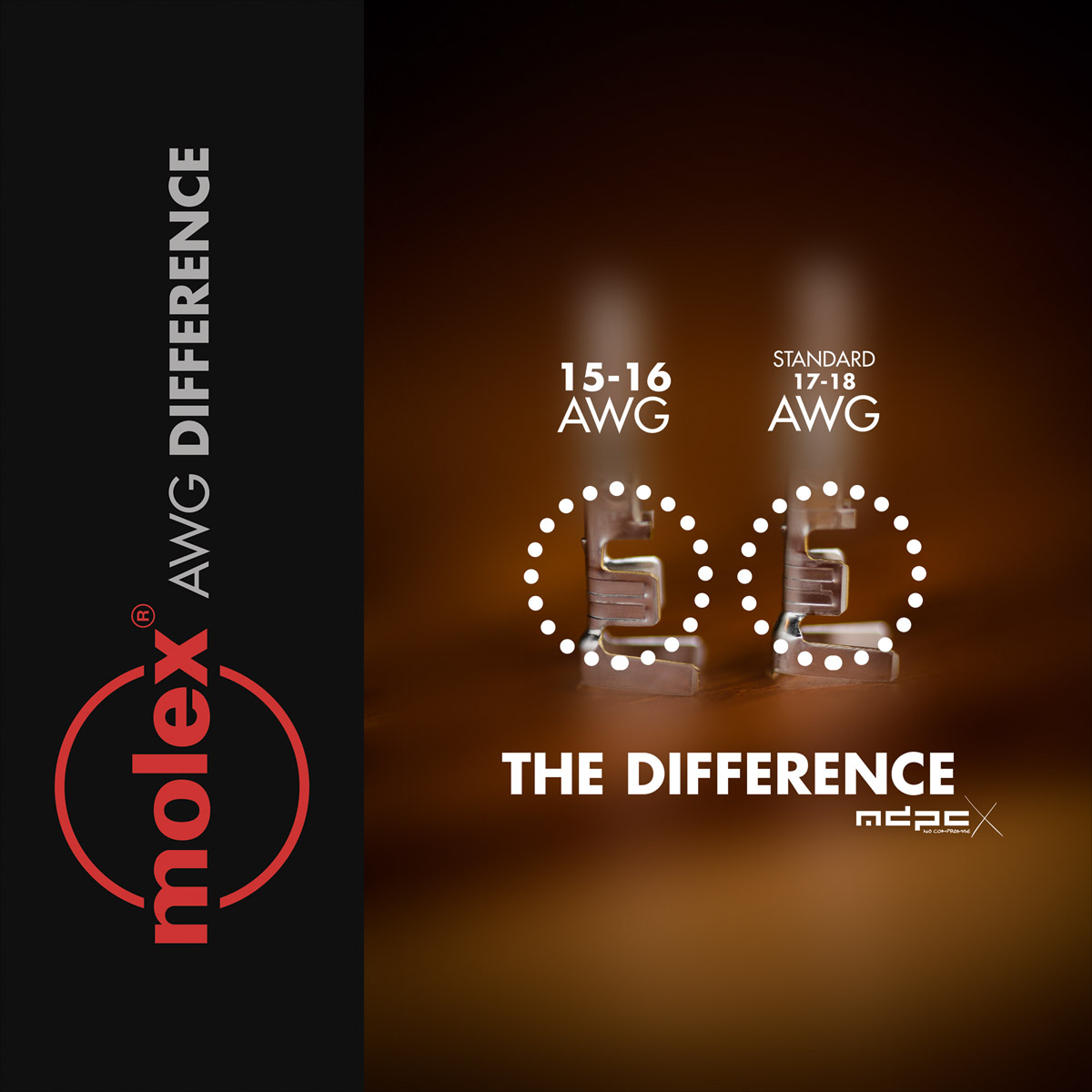

Crimp Terminal ATX FEMALE
If you buy CONNECTORS, you need these: 50x ATX crimp terminals FEMALE Mini-Fit-Jr for ATX, PCI-E and EPS, made for 18 AWG and 17 AWG (1.00mm²). The difference to the 15-16 AWG FEMALE ATX version can be seen in the second photo. The only difference is the length of the conductor "wings", which wrap around the conductor of the wire when crimped, otherwise both size versions are 100% compatible with all connectors and mating terminals. FEMALE crimp terminals are always used for CONNECTORS. These are the best female crimp terminals for ATX, PCI-E and EPS connectors manufactured in the USA by the MOLEX company. You can use these Mini-Fit-Jr crimp terminals on all common wire sizes, which you find e. g. in PC / computer systems on PSU / power-supplies. Crimping of these female ATX crimp terminals on 18AWG (0.8 mm²) and 17AWG (1.00 mm²) electrical wire will be perfect when the electrical wire has the common outer diameter (including insulation) between 1.7 mm to 2.4 mm. MDPC-X recommends electrical wire with PVC insulation for crimping female ATX crimp terminals. You can find electrical wire here at MDPC-X and at some of our MDPC-X Stores around the world or in shops for electrical supplies. Combine these female ATX crimp terminals with our legendary Crimping Tool for ATX Mini-Fit-Jr crimp terminals by MDPC-X plus the original Pin Remover / Extraction Tool for ATX crimp terminals by the MOLEX company and you will have the full joy of shortening or building your own cables and removing cables. A relatively small investment into absolute freedom in the world of creativity, cable sleeving and technology.
Content: 50 piece (€0.09 / 1 piece)

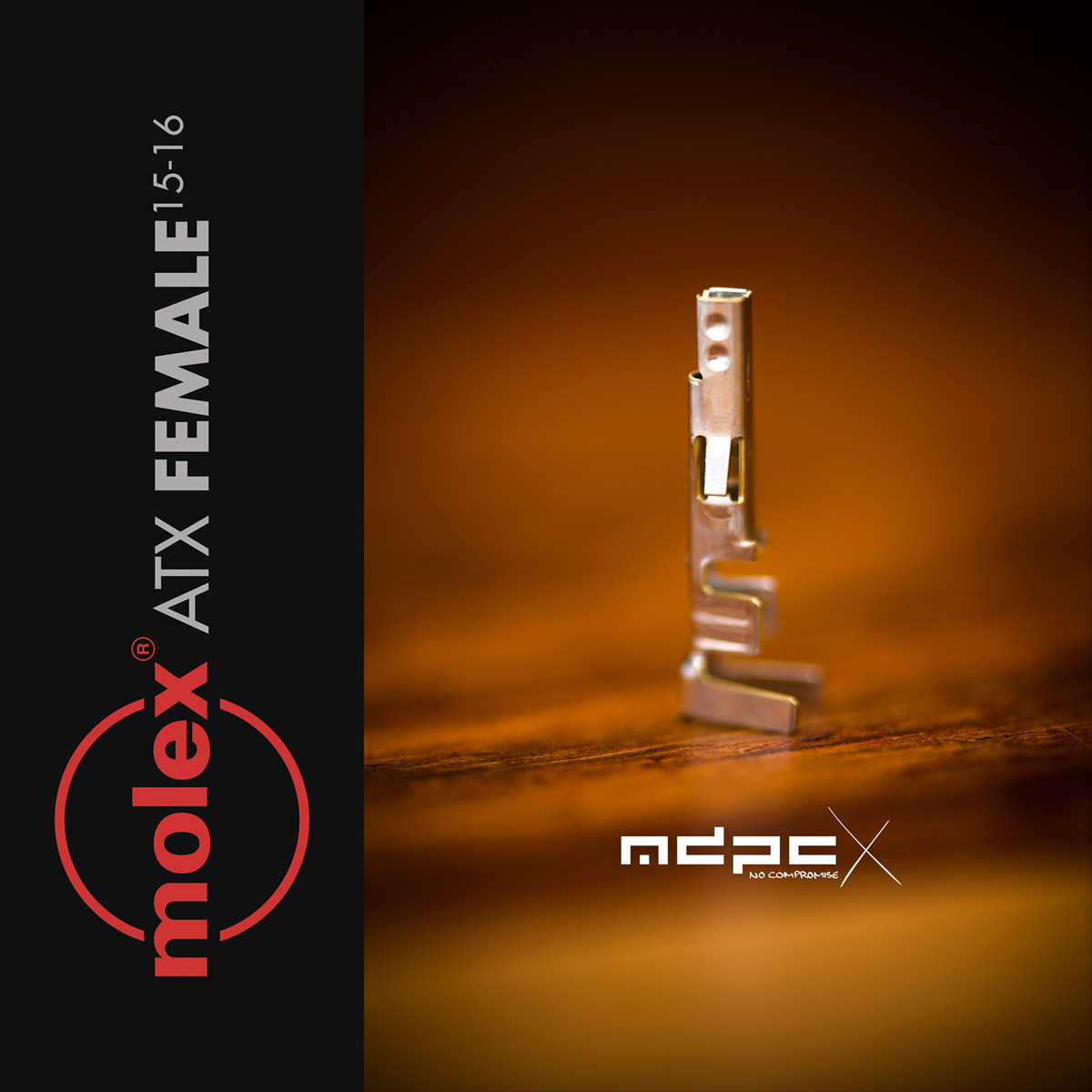

Crimp Terminal ATX 15-16AWG FEMALE
If you buy CONNECTORS, you need these: 50x ATX crimp terminals FEMALE Minifit-Jr for ATX, PCI-E and EPS, made for 16 AWG and 15 AWG (1.50mm²). FEMALE crimp terminals are always used for CONNECTORS. The difference to the standard Minifit-Jr AWG (17-18) FEMALE version can be seen in the second photo. The only difference is the length of the conductor "wings", which wrap around the conductor of the wire when crimped. Both size versions are 100% compatible with all connectors and mating terminals.
Content: 50 piece (€0.09 / 1 piece)

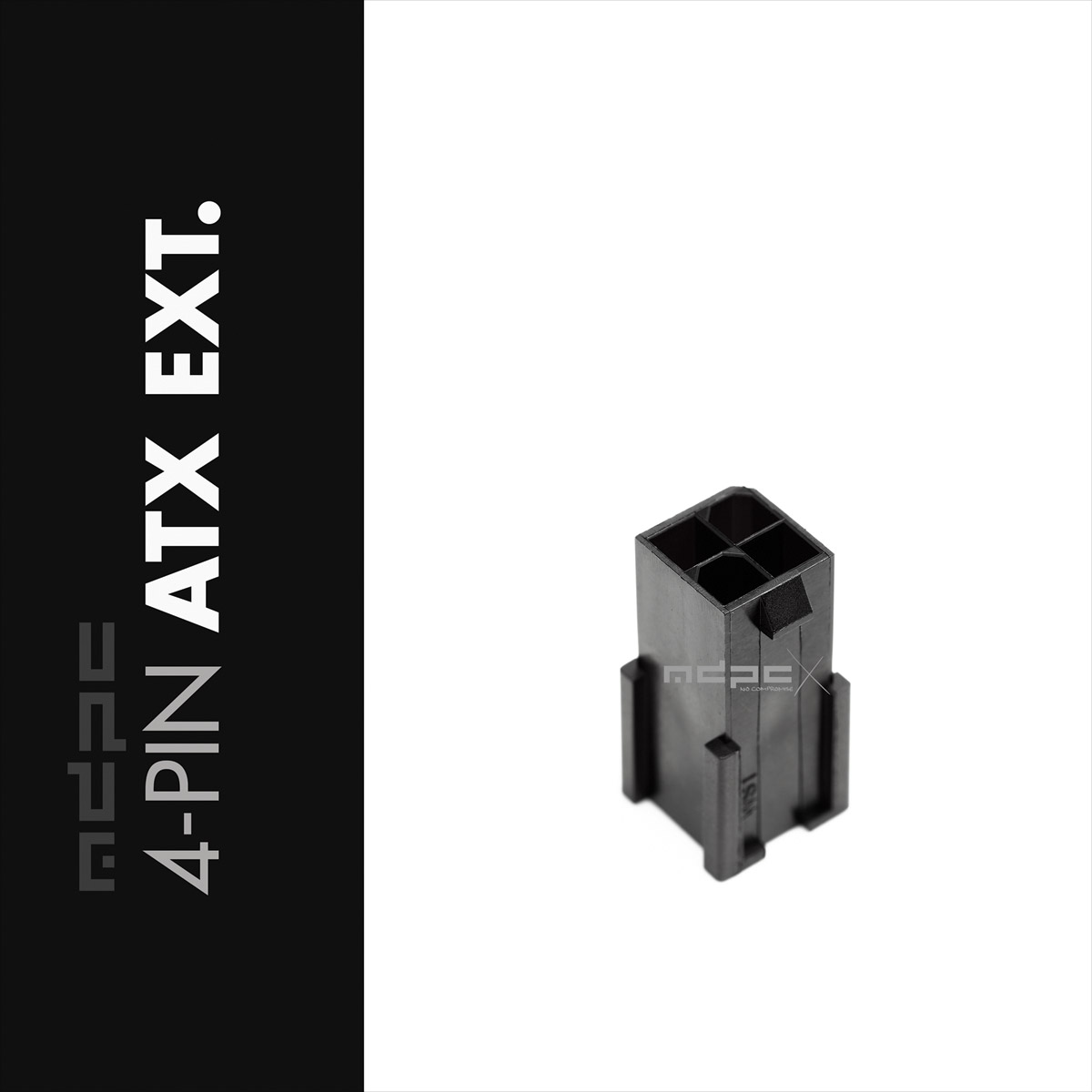

4-pin HOUSING ATX
This black 4-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 4-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 4-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

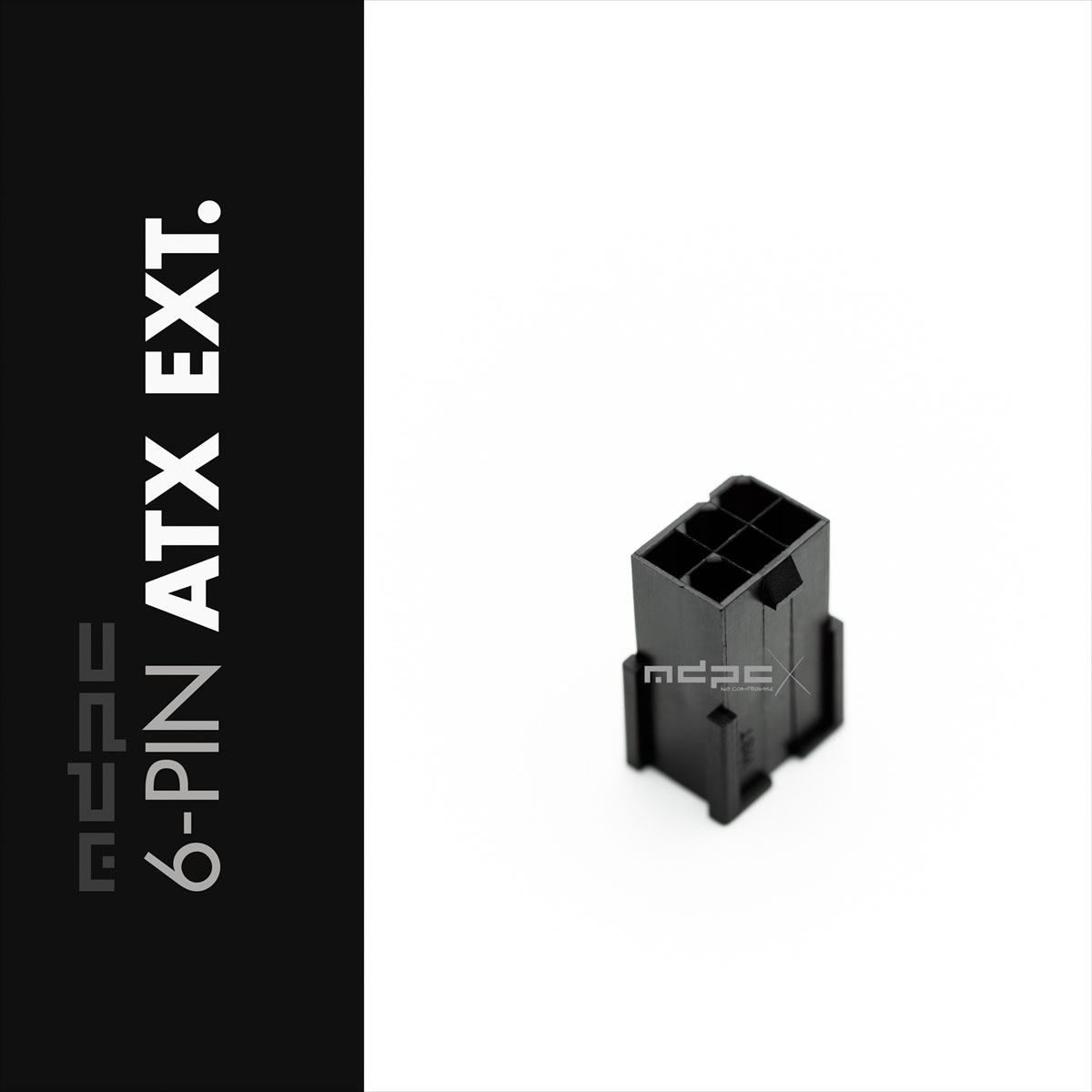

6-pin HOUSING ATX
This black 6-pin housing for ATX (it is also compatible with 6-pin PCI-E connectors) is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 6-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 6-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

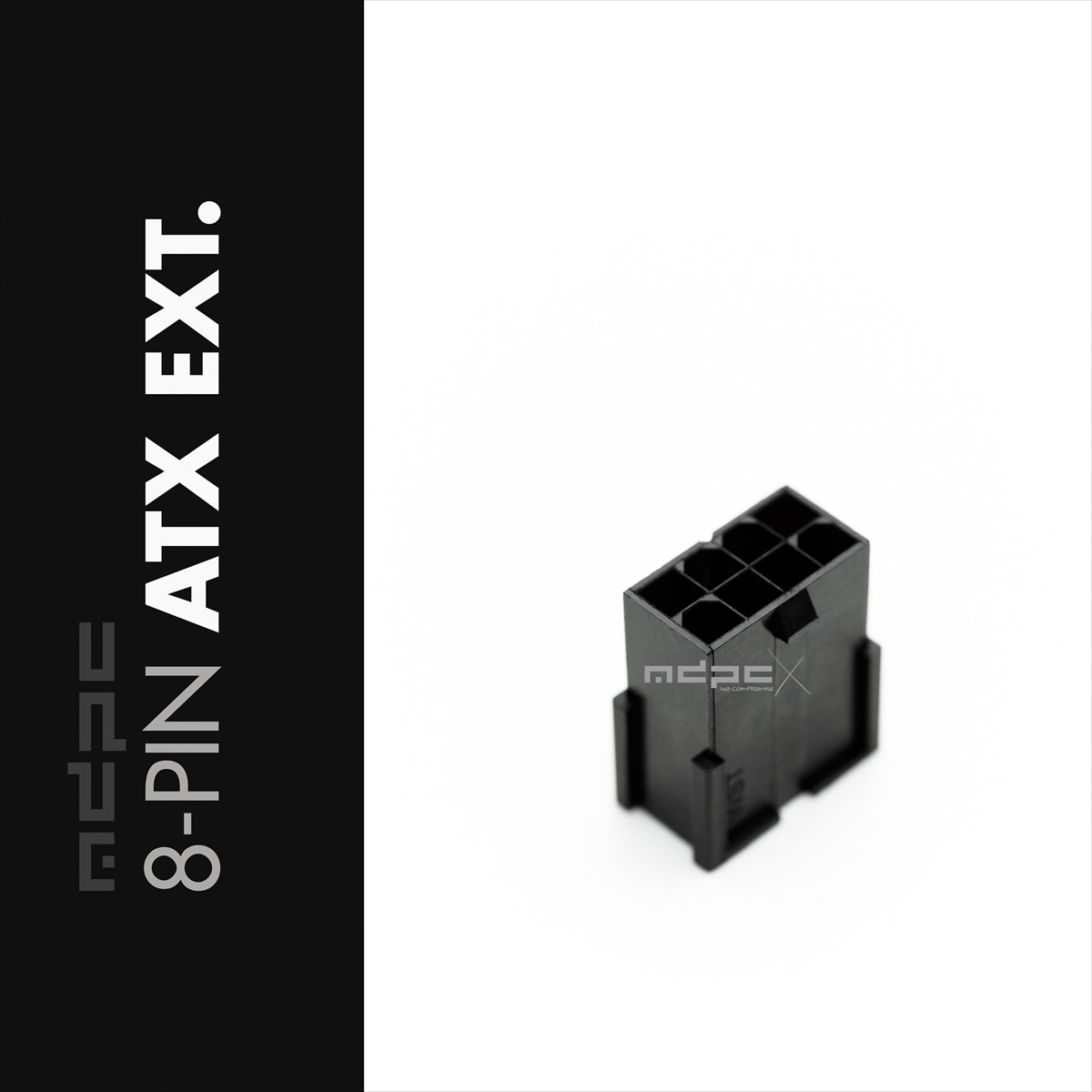

8-pin HOUSING ATX / EPS
This black 8-pin housing for ATX and EPS is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 8-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 8-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

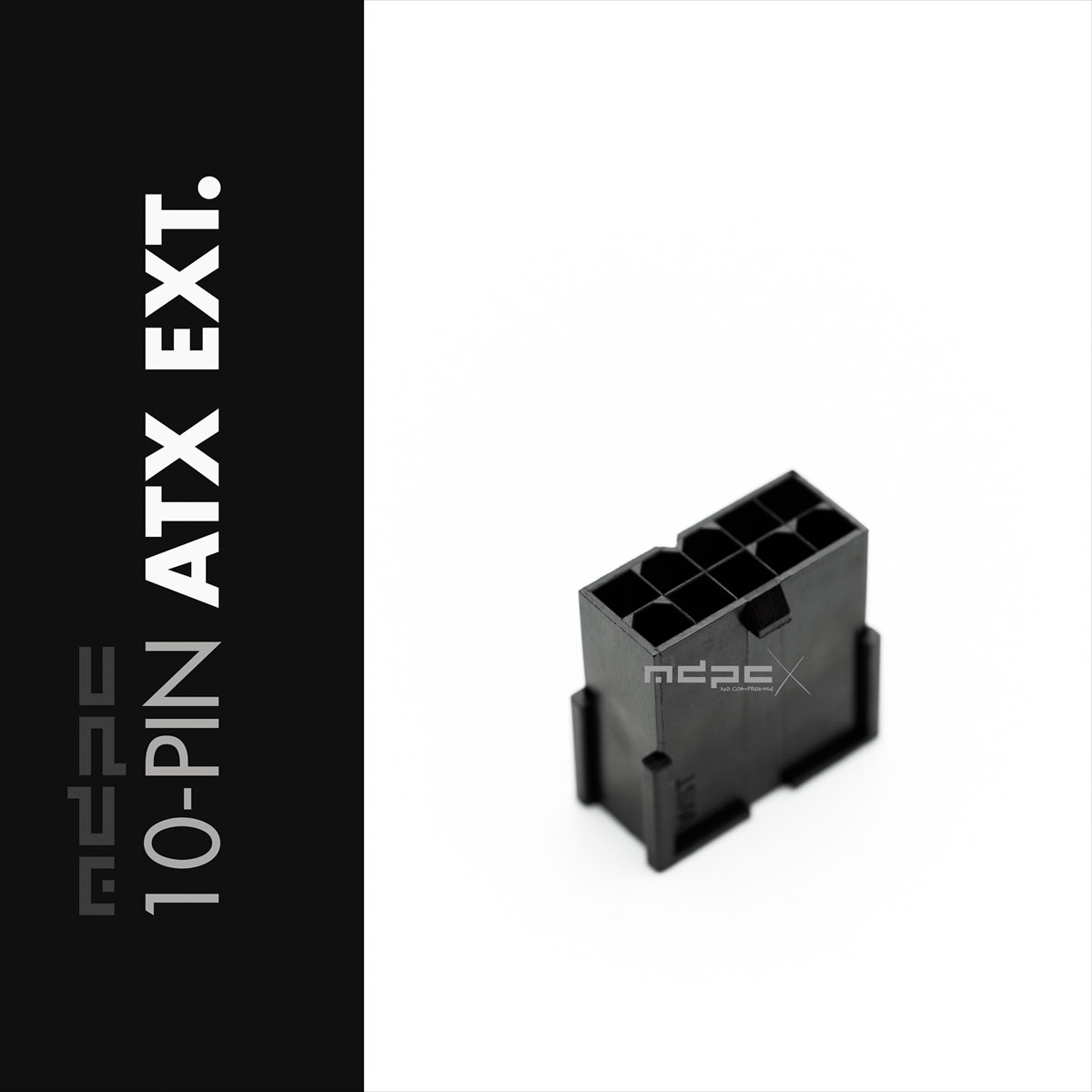

10-pin HOUSING ATX
This black 10-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 10-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 10-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

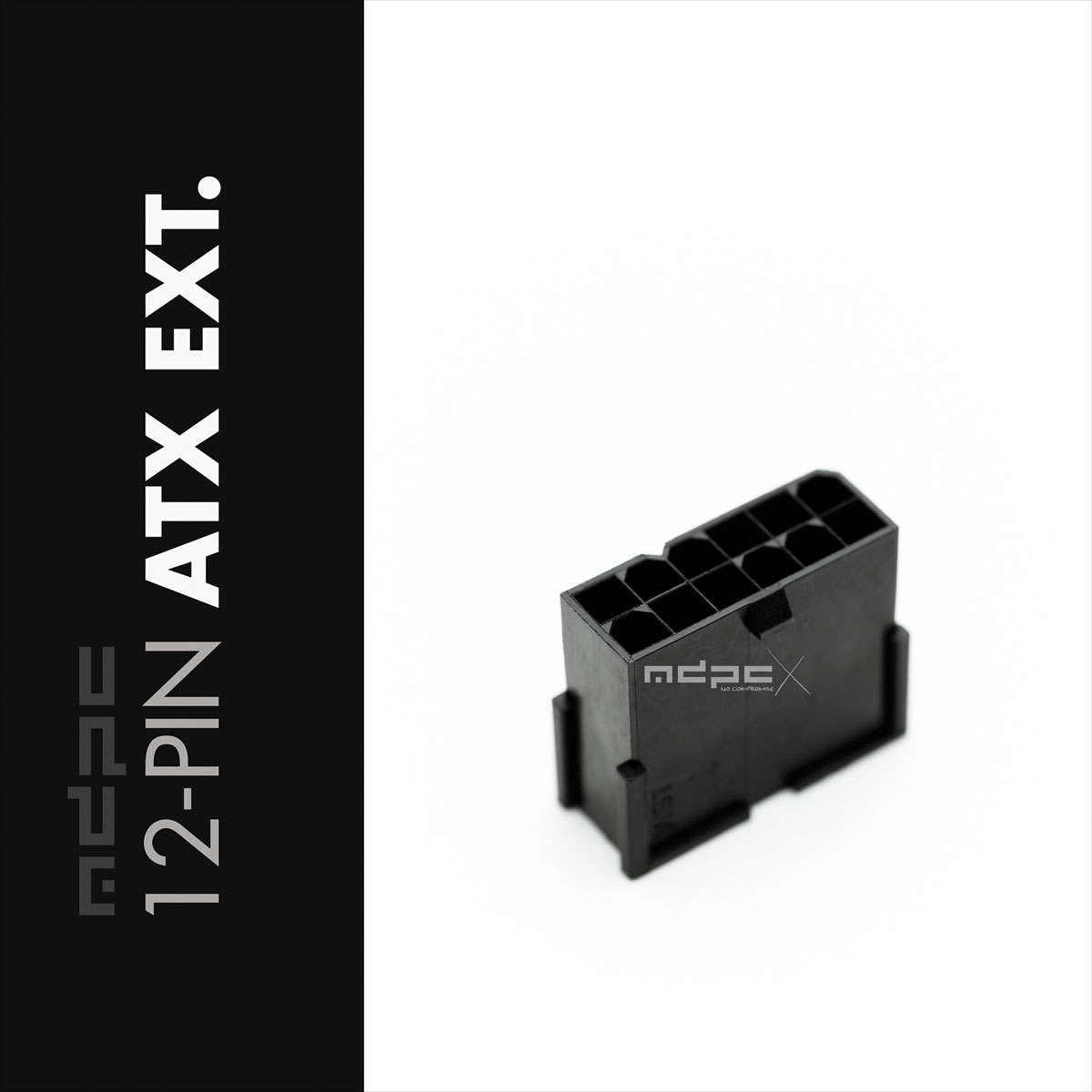

12-pin HOUSING ATX
This black 12-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 12-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 12-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

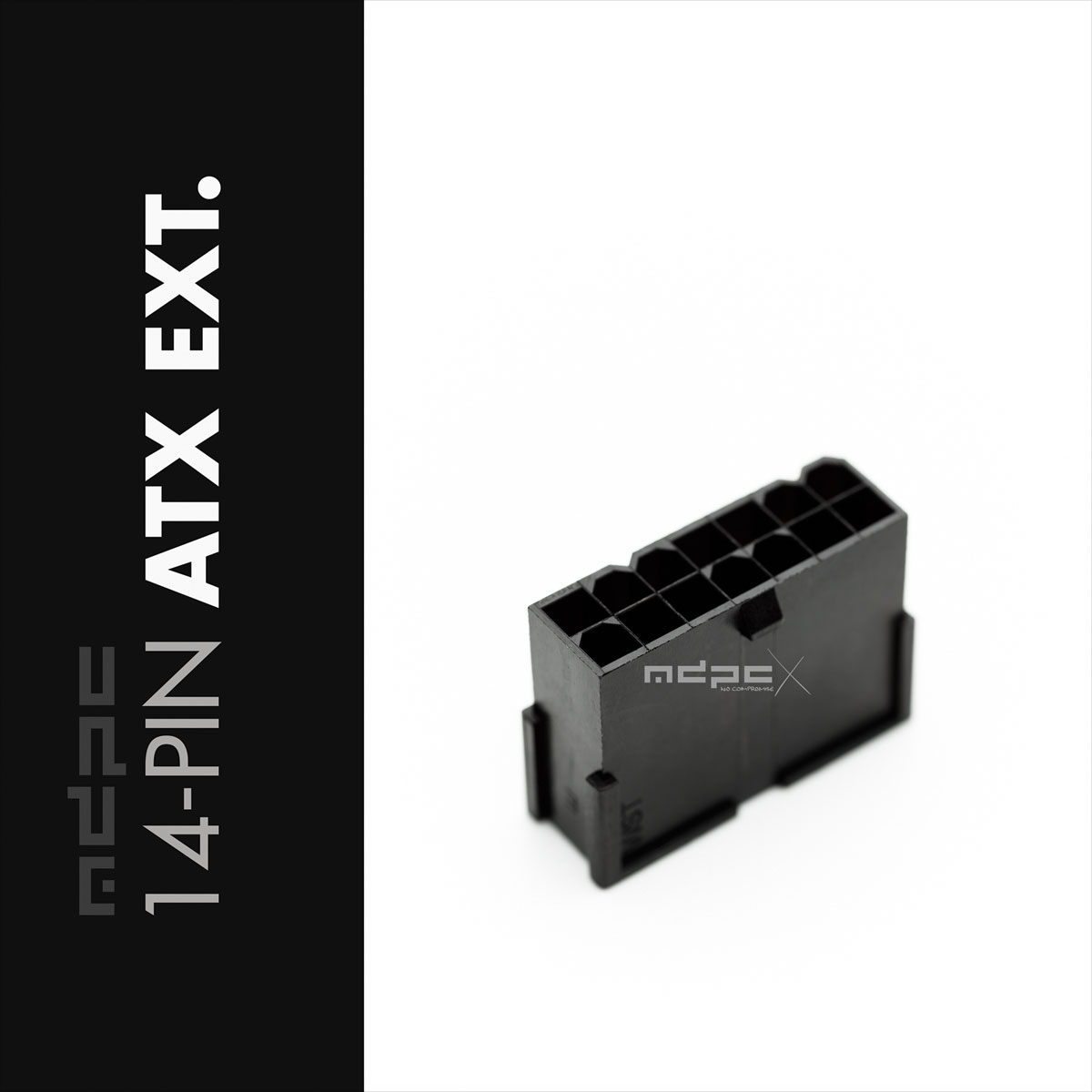

14-pin HOUSING ATX
This black 14-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 14-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 14-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

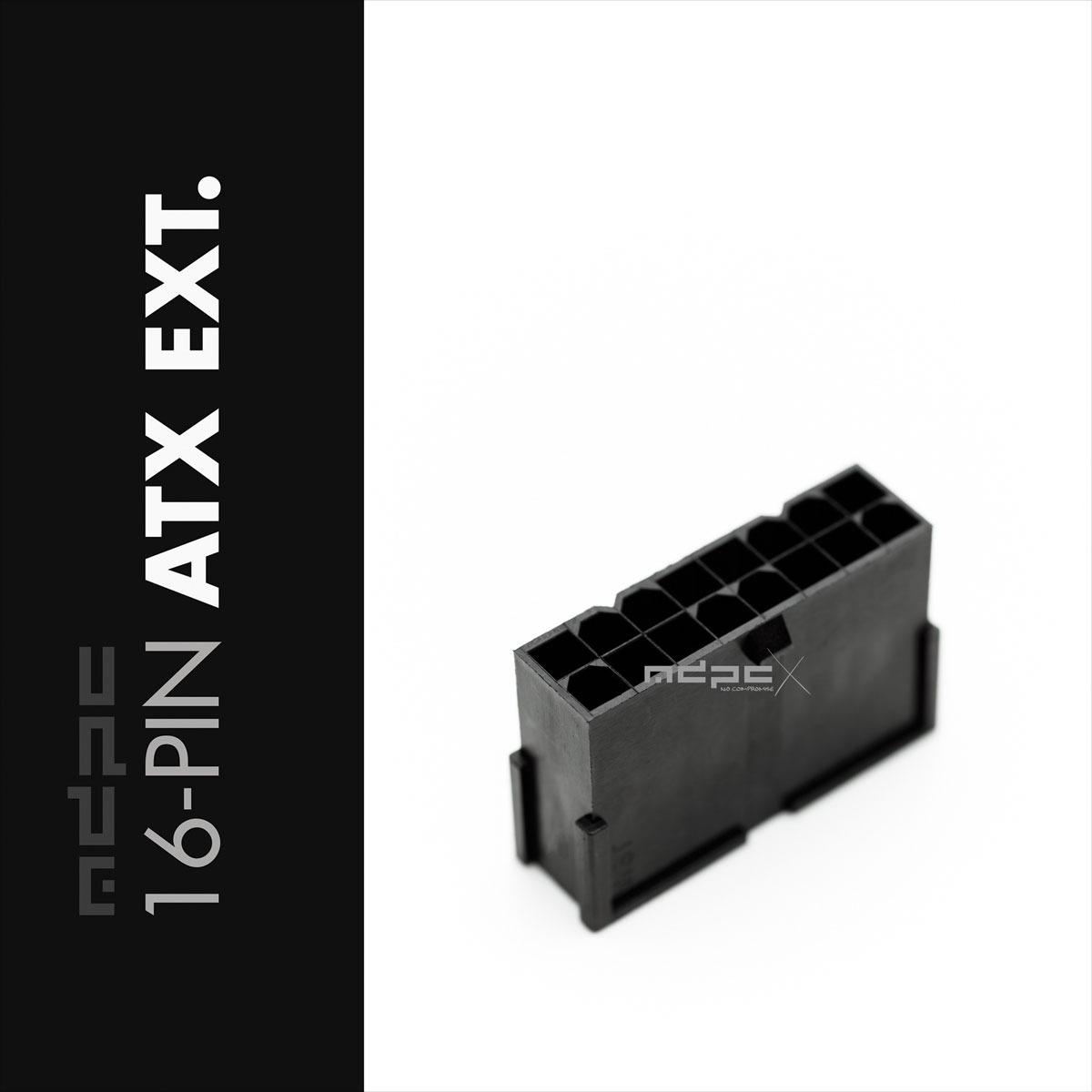

16-pin HOUSING ATX
This black 16-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 16-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 16-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

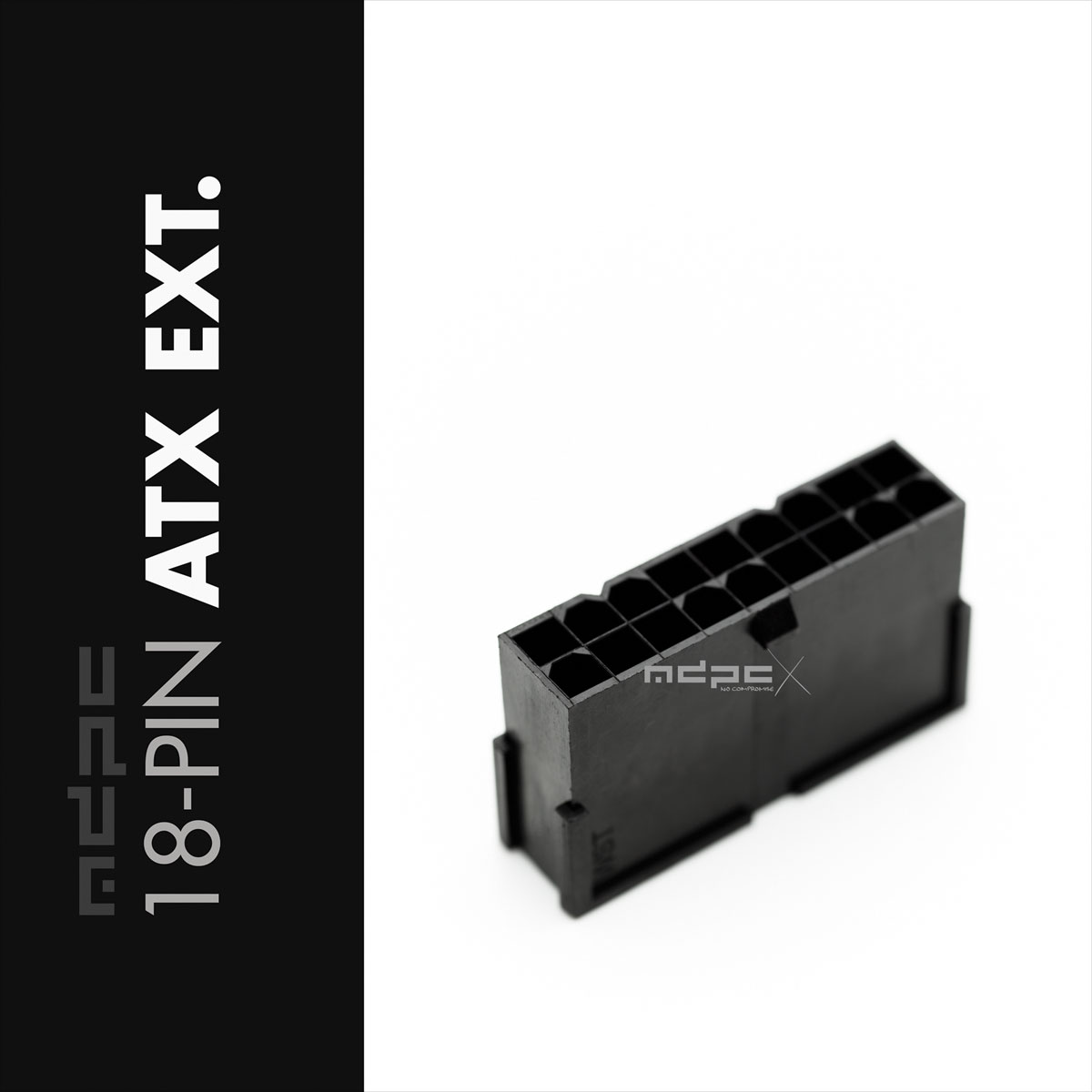

18-pin HOUSING ATX
This black 18-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 18-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 18-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

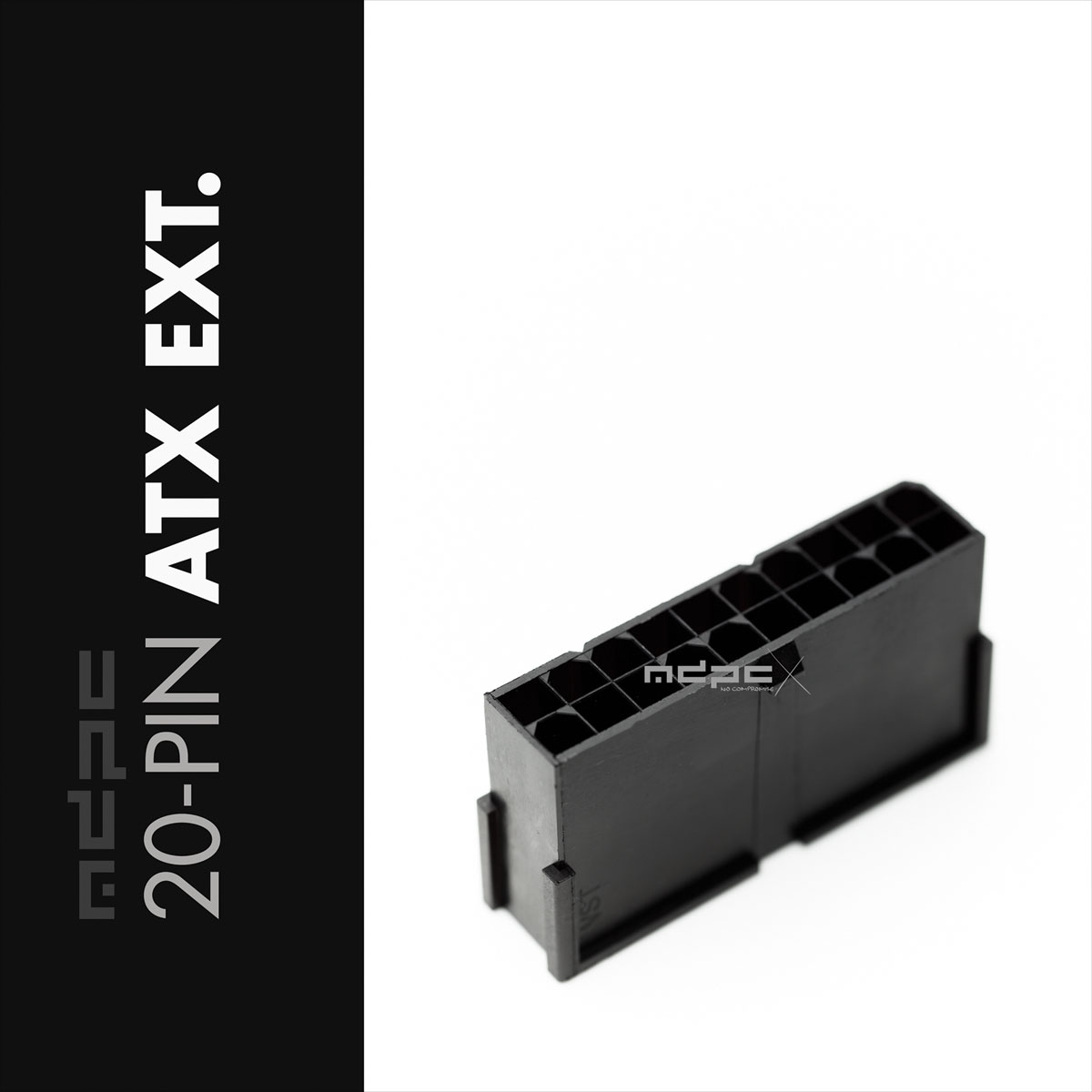

20-pin HOUSING ATX
This black 20-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 20-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 20-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

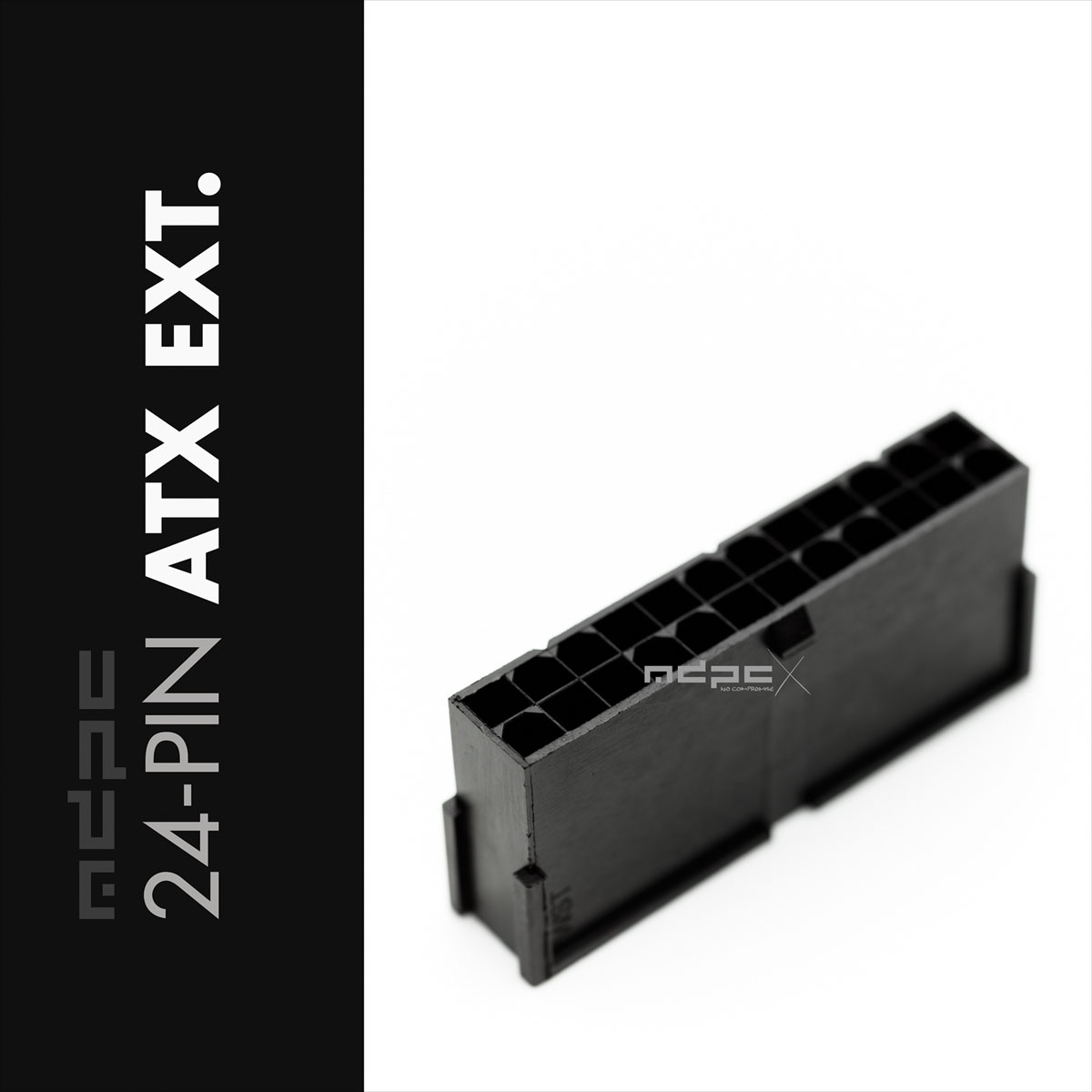

24-pin HOUSING ATX
This black 24-pin housing for ATX is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these ATX 24-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 24-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

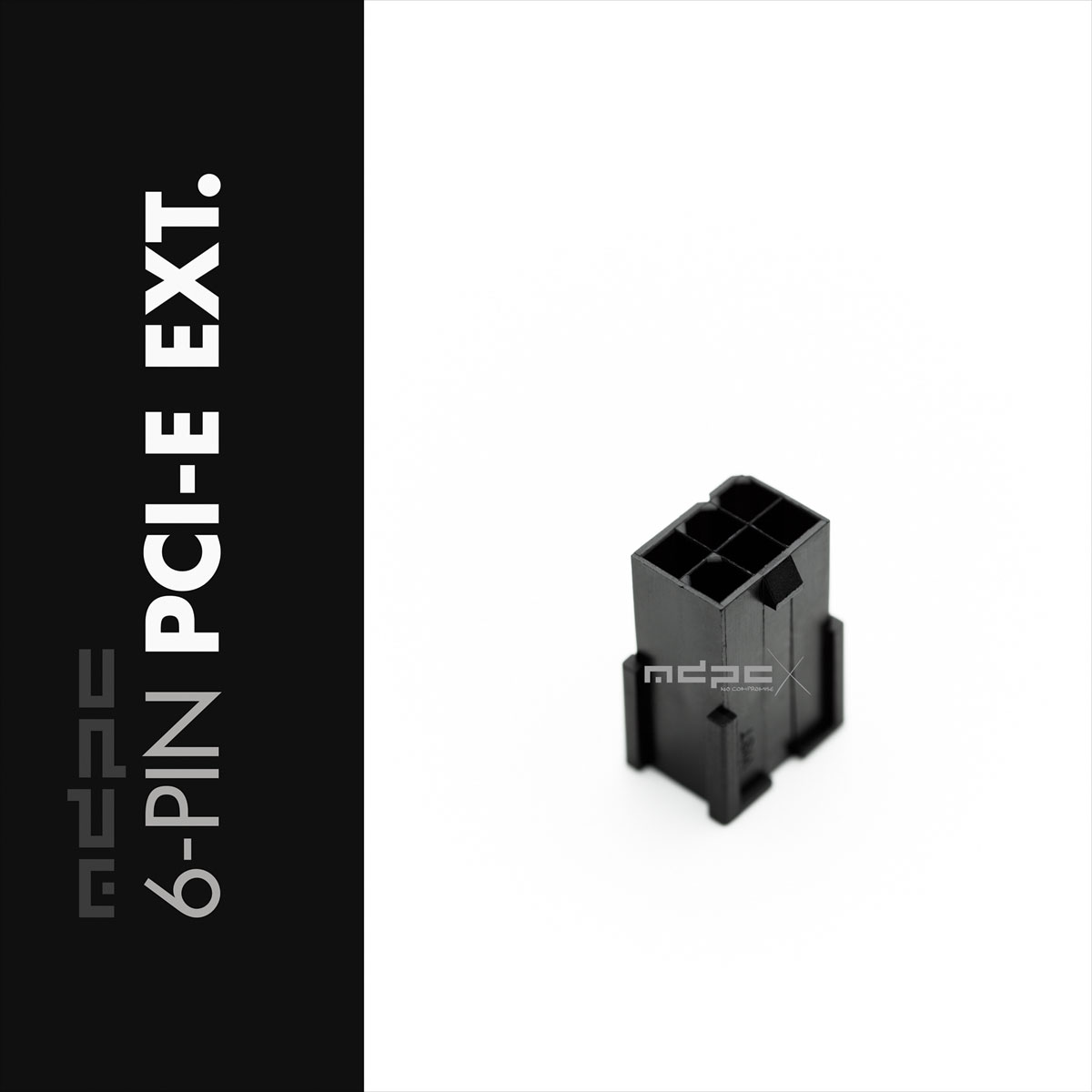

6-pin HOUSING PCI-E
This black 6-pin housing for PCI-E (it is also compatible with 6-pin ATX connectors) is made for us in Taiwan by the second best manufacturer after MOLEX. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these PCI-E 6-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 6-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

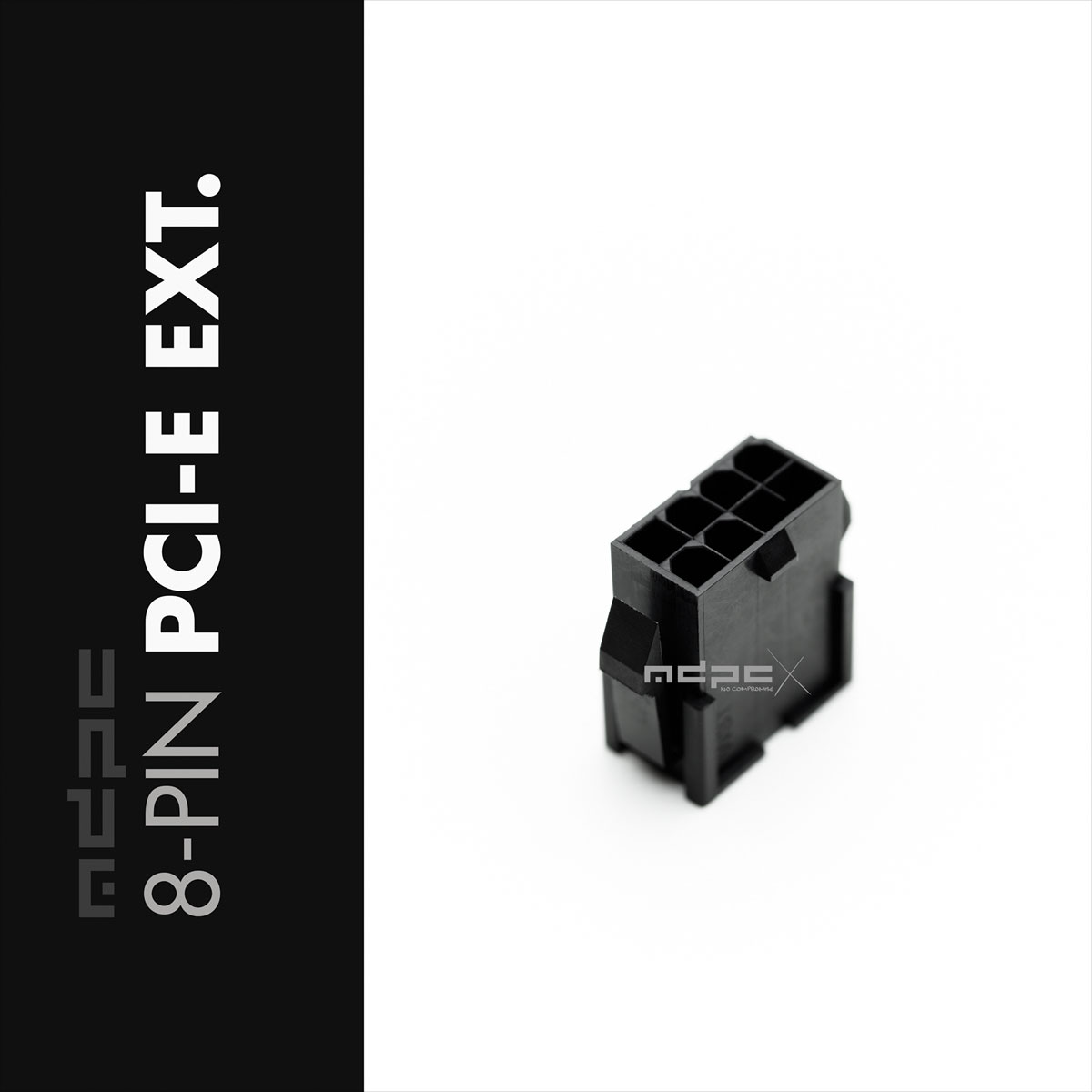

8-pin HOUSING PCI-E
This black 8-pin housing for PCI-E is made for us in Taiwan by the second best manufacturer after MOLEX. If you do not need the handles on the sides of the connector, you can break or cut them off with ease. The insertion and extraction of crimp terminals with these housings is extremely easy and a league above almost every housing which you find on your existing cable extensions. You can use these PCI-E 8-pin housings with existing crimp terminals already found on your extension cables. For absolute perfection you combine this 8-pin housing with our original MOLEX ATX crimp terminals MALE or of course the version for 15-16 AWG wire, ATX crimp terminals 15-16 AWG MALE. The extraction of crimp terminals is best achieved by using the original Pin Remover by MOLEX.

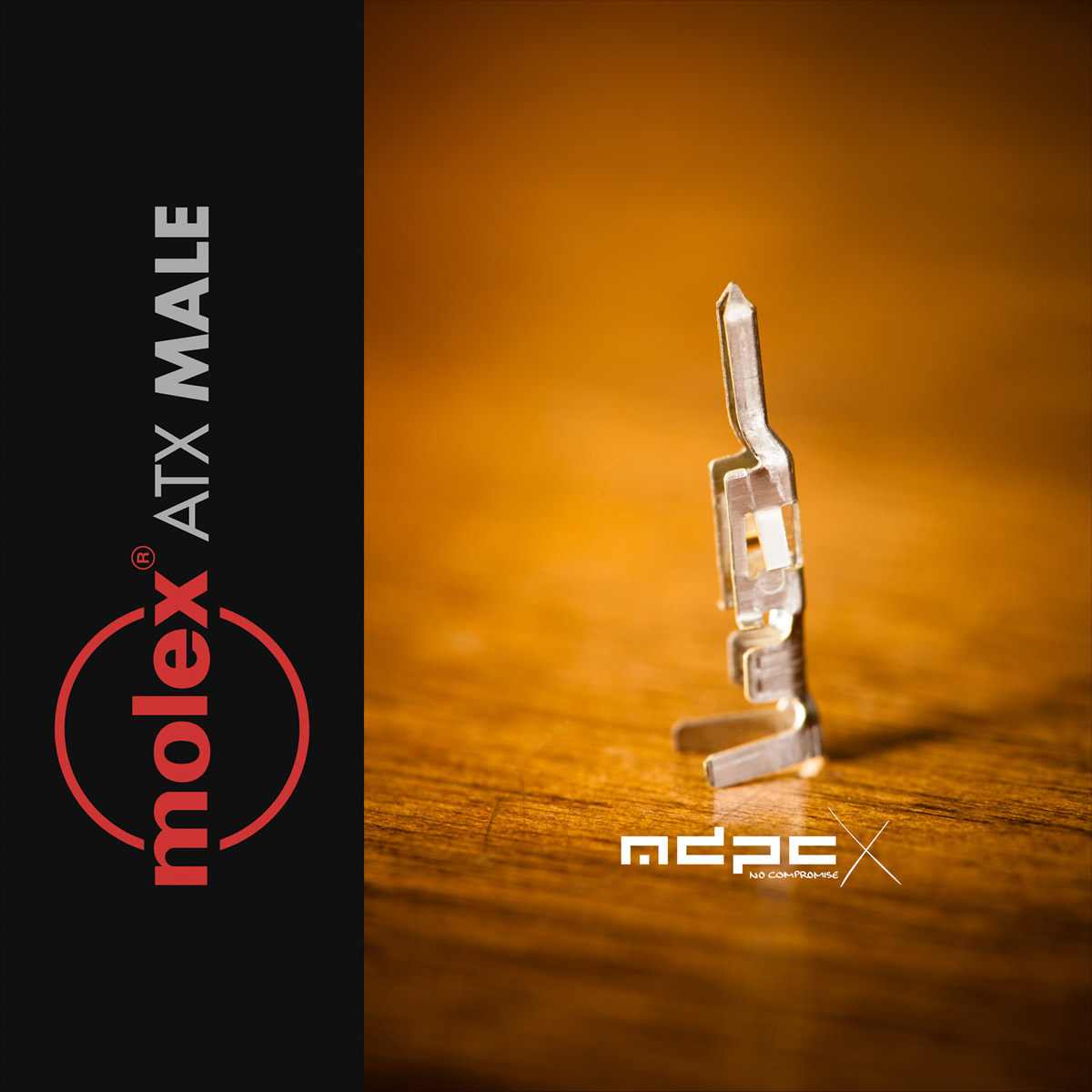

Crimp Terminal ATX MALE
If you buy HOUSINGS, you need these: 50x ATX crimp terminals MALE Mini-Fit-Jr for ATX, PCI-E and EPS, made for 18 AWG and 17 AWG (1.00mm²). The difference to the 15-16 AWG MALE ATX version can be seen in the second photo. The only difference is the length of the conductor "wings", which wrap around the conductor of the wire when crimped, otherwise both size versions are 100% compatible with all housings and mating terminals. MALE crimp terminals are always used for HOUSINGS. These are the best male crimp terminals for ATX, PCI-E and EPS housings manufactured in the USA by the MOLEX company. You can use these Mini-Fit-Jr crimp terminals on all common wire sizes, which you find e. g. in PC / computer systems on PSU / power-supplies. Crimping of these male ATX crimp terminals on 18AWG (0.8 mm²) and 17AWG (1.00 mm²) electrical wire will be perfect when the electrical wire has the common outer diameter (including insulation) between 1.7 mm to 2.4 mm. MDPC-X recommends electrical wire with PVC insulation for crimping male ATX crimp terminals. You can find electrical wire here at MDPC-X and at some of our MDPC-X Stores around the world or in shops for electrical supplies. Combine these male ATX crimp terminals with our legendary Crimping Tool for ATX Mini-Fit-Jr crimp terminals by MDPC-X plus the original Pin Remover / Extraction Tool for ATX crimp terminals by the MOLEX company and you will have the full joy of shortening or building your own cables and removing cables. A relatively small investment into absolute freedom in the world of creativity, cable sleeving and technology.
Content: 50 piece (€0.09 / 1 piece)

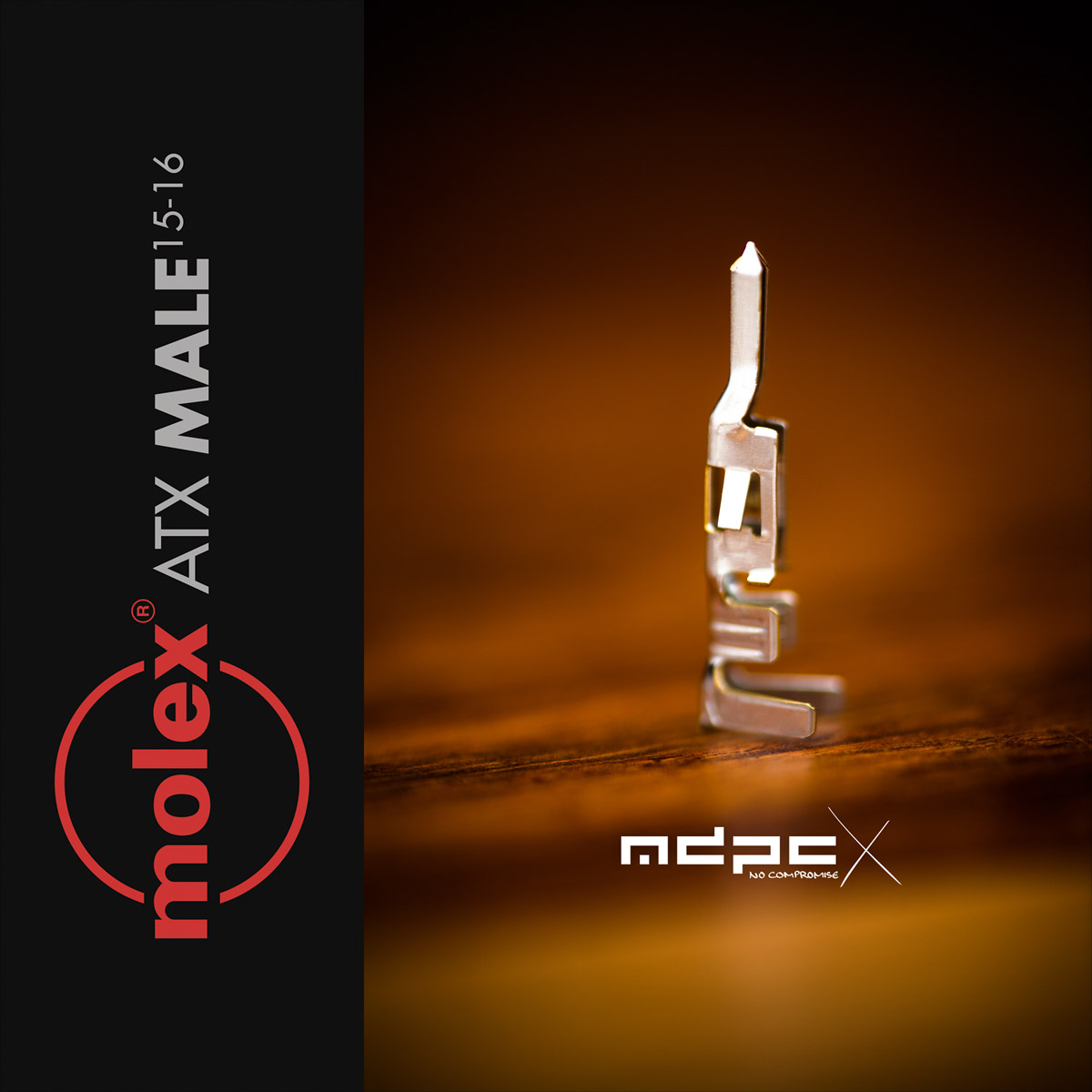

Crimp Terminal ATX 15-16AWG MALE
If you buy HOUSINGS, you need these: 50x ATX crimp terminals MALE Minifit-Jr for ATX, PCI-E and EPS, made for 16 AWG and 15 AWG (1.50mm²). MALE crimp terminals are always used for HOUSINGS. The difference to the standard Minifit-Jr AWG (17-18) MALE version can be seen in the second photo. The only difference is the length of the conductor "wings", which wrap around the conductor of the wire when crimped. Both size versions are 100% compatible with all housings and mating terminals.
Content: 50 piece (€0.09 / 1 piece)

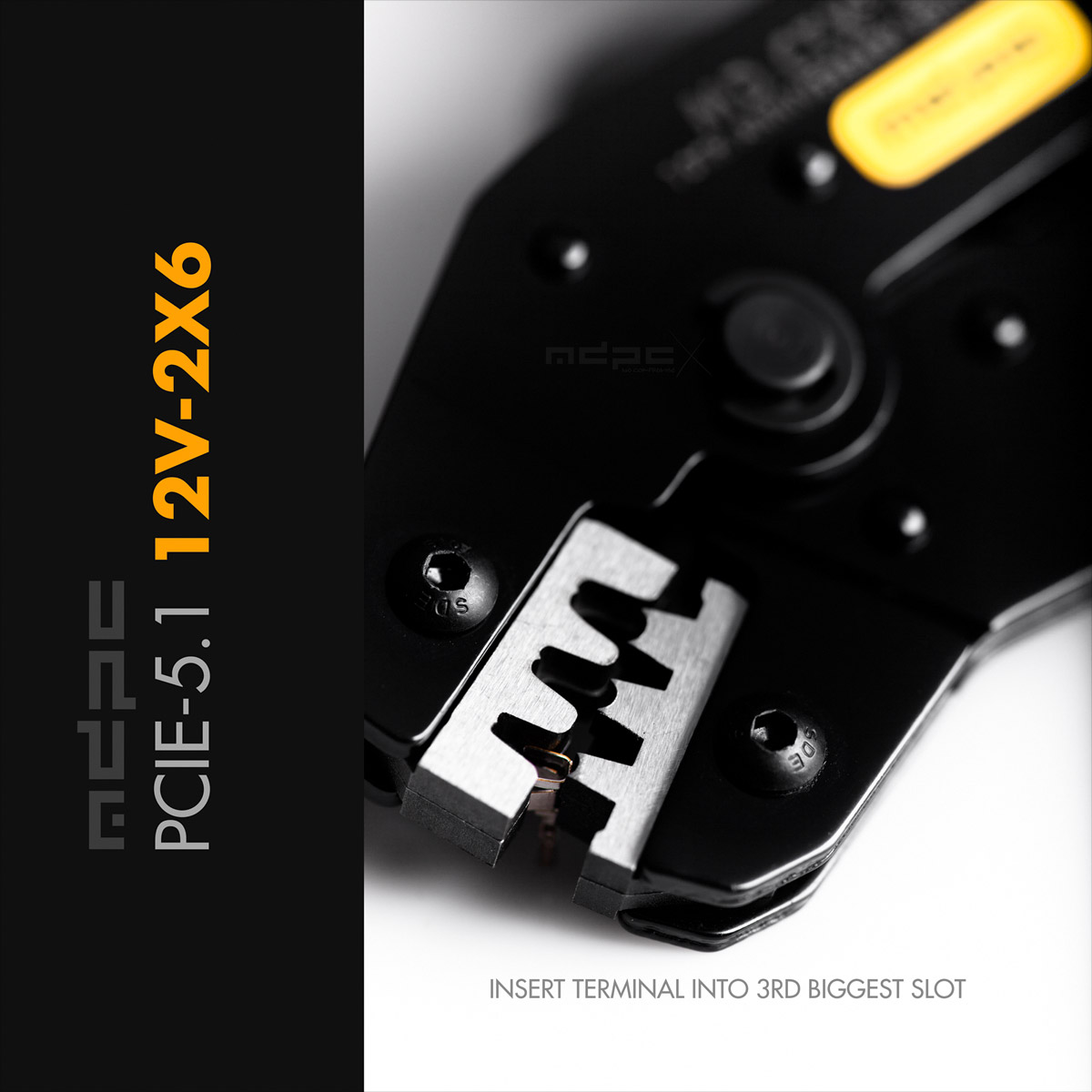

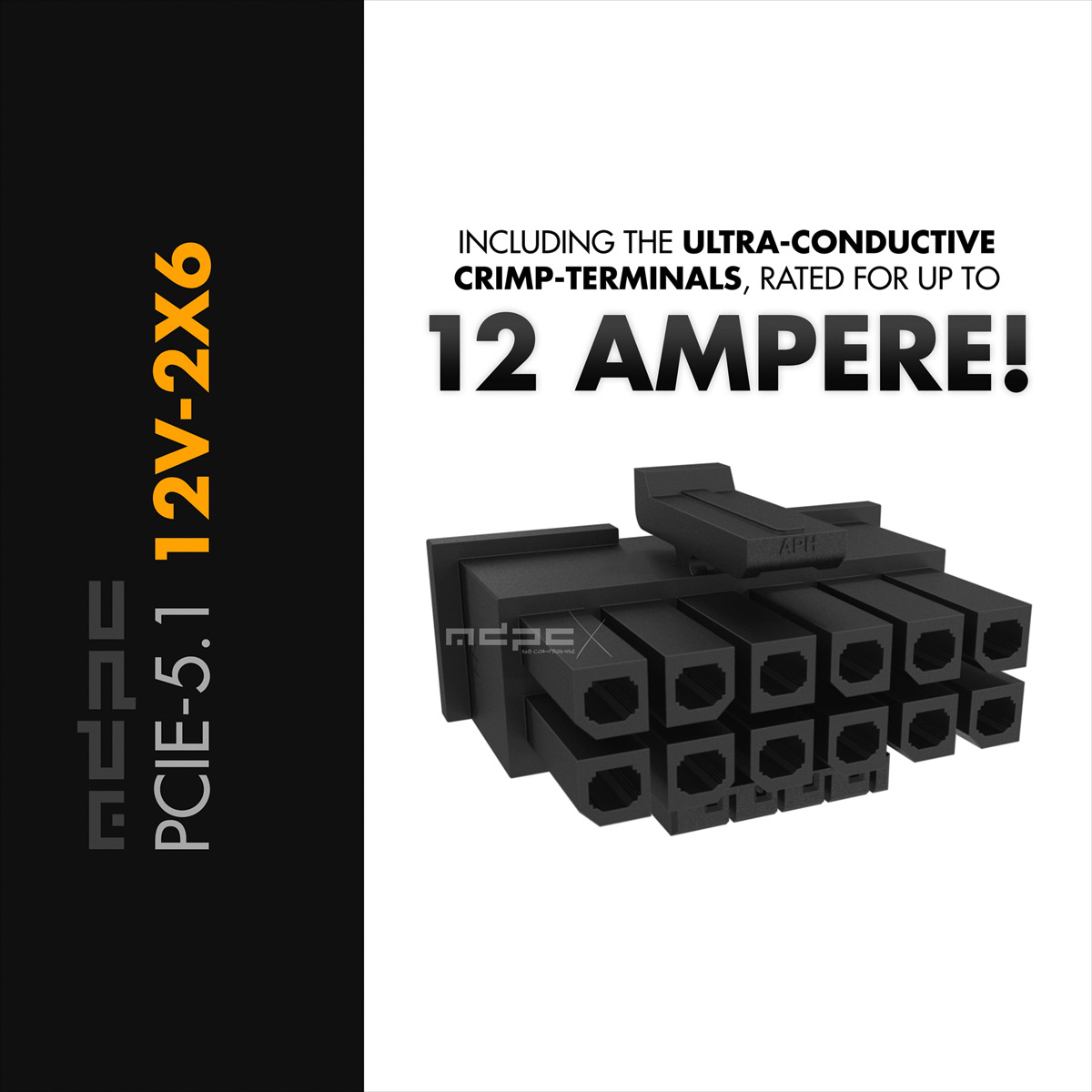

12v-2x6 Connector PCIe-5.1
Welcome to PCIe-5.1: This 12v-2x6 cable-end connector is compatible with the 12V-2x6 (PCIe-5.1) PCB-headers/sockets on your GPU and the previous 12VHPWR (PCIe-5.0) headers/sockets on the PCB of your GPU. The difference between the two names (12V-2x6 or 12VHPWR) refers to the PCB-headers/sockets on the card itself. The 12V-2x6 headers/sockets on the PCB must have "H++" stamped on them in order to identify the shorter signal pin position. The cable end connector still has "H+" ("H++" might be optional in the future) stamped on it, because there is no change in dimensions or distances as it happened with the revised PCB header/sockets. The connector is fully compatible with both PCB-header versions. So what's new with this cable end connector for PCIe-5.1 12v-2x6 in our offering?The difference is in the ampere rating for the crimp terminals: The included Amphenol crimp terminals are now rated for up to 12A per terminal! This massively exceeds the official PCIe-5.1 specification of 9.2A per crimp terminal.(Advice: For practice purposes or non-high-end-GPU, you can order a couple of the discounted 12VHPWR connector & 9.2A crimp terminal kits, found here: 12VHPWR). You can't have enough of a safety zone when it comes to such small connections with high currents. Make your own maximum safety (!) PCIe-5.1 custom cables, as shown in our PCIe-5.1 12V-2x6 and 12VHPWR custom cable guide. You don't need to sleeve the wires, but at least you fully control the process and perfect result. The original 12A high current Amphenol crimp terminals for 12v-2x6 connections feature the single-seam (not the potentially unsafe 2 seams) design and additionally a spring type design (not the potentially unsafe dimple design) in horizontal alignment and a maximum contact area / flat surface vertically - without any contact area reducing dimples! The 12v-2x6 connector features 12-pins for electrical power and 4-pins for side-band information. When you order one (1) connector, you will also get twice the amount (24) of needed electrical power crimp terminals and twice the amount (8) of needed signal / side-band crimp terminals, allowing you to learn and practice crimping these smaller than usual (compared to ATX and common PCI-Express) crimp terminals. Important knowledge about making custom cables with the new PCIe 5.1, 12v-2x6 connector standard: Have a look at our PCIe-5.1 12V-2x6 and 12VHPWR custom cable guide Due to the smaller sizes in every aspect, pin to pin distance (pitch) of 3.00 mm (regular ATX / PCIe = 4.20 mm), a narrower wire insertion slot width of only 2.7 mm and smaller sized crimp terminals, you are much more limited with your choice of wire. The maximum outer diameter of your wire for the power crimp terminals can not exceed 2.7 mm, including the crimp terminal material on top of your wire insulation! The signal / side band crimp terminals are used with 23-AWG or 26-AWG wire (see gallery image for crimping technique tips). For the power wires, we recommend wire with a maximum outer diameter of 2.0 mm or less, for example a very high quality 17 AWG wire, which typically handles a current of 12 to 15 ampere easily. A 16 AWG wire, as recommended in the PCIe 5.1 specs, can result in imperfect crimps, which is a potential risk for your hardware. 18 AWG would be too far away from original specs in terms of electrical capacities and shouldn't be used if you don't want to risk your hardware. The gallery shows how to crimp such a wire with our CTX-3 crimping tool. Insert the empty crimp terminal into the smallest slot, close the handles only to the first stop. Strip the wire on a length between 2.5 to 3.0 mm. Insert the stripped wire correctly into the rear of the crimp terminal (as described in the gallery of the CTX-3 crimp tool). Close the handles of the crimping tool until there is good physical resistance, but not as far as the crimping tool can close! Use the "pre-opening technique" for the crimp tool, by using the little lever on the inner side of the bottom handle, as described in the CTX-3 product description text. Insert the crimped wire into the rear of the connector. As always: The top of the crimp terminal faces to the top of the connector. The top of the connector is on the side where the retention lock is. If you want to sleeve the wires "shrinkless", with the wire going into the connector, as shown in our PCIe-5.1 12V-2x6 and 12VHPWR custom cable guide, you will use our MICRO sleeve, our 17-AWG wires (18 AWG would be too low in terms of electrical performance) and our transparent MICRO heat-shrink (to melt the sleeving perfectly). Removing / extracting the crimp terminals from the connector: Just pull with enough force in the direction of the wire. Before you re-insert the wire into the connector, make sure to re-bend the retention hooks on the terminal to its original position. Don't do this too often, as the fine structure of the hook might take damage. Enjoy the original PCI-Express Gen 5.1, 12v-2x6 16-pin connector and your custom PCIe 5 cables!
PCIe-5 Connector 12VHPWR
This original 12VHPWR connector by Amphenol is compatible with 12VHPWR (PCIe-5.0) and 12V-2x6 (PCIe-5.1) PCB-headers on your GPU. The difference between the two names refers to the PCB-header versions on the card itself. The connector is fully compatible with both versions. Make your own PCIe-5 custom cables, as shown in our PCIe-5 12VHPWR custom cable guide: You don't need to sleeve the cables, but you should at least make the cables yourself to fully control their perfect technical quality and lengths, so you don't depend on others! The original Amphenol 12VHPWR crimp terminals feature the single-seam (not the potentially unsafe 2 seams) design and additionally a spring type design (not the potentially unsafe dimple design) in horizontal alignment and a maximum contact area / flat surface vertically - without any contact area reducing dimples! The 12VHPWR connector features 12-pins for electrical power and 4-pins for side-band information. When you order one (1) connector, you will also get twice the amount (24) of needed electrical power crimp terminals and twice the amount (8) of needed signal / side-band crimp terminals, allowing you to learn and practice crimping these smaller than usual (compared to ATX and common PCI-Express) crimp terminals. Important knowledge about making custom cables with the new PCIe 5, 12VHPWR connector standard: Have a look at our PCIe-5 12VHPWR custom cable guide Due to the smaller sizes in every aspect, pin to pin distance (pitch) of 3.00 mm (regular ATX / PCIe = 4.20 mm), a narrower wire insertion slot width of only 2.7 mm and smaller sized crimp terminals, you are much more limited with your choice of wire. The maximum outer diameter of your wire for the power crimp terminals can not exceed 2.7 mm, including the crimp terminal material on top of your wire insulation! The signal / side band crimp terminals are used with 23-AWG or 26-AWG wire (see gallery image for crimping technique tips). For the power wires, we recommend wire with a maximum outer diameter of 2.0 mm or less, for example a very high quality 17 AWG wire. A 16 AWG wire, as recommended in the PCIe 5 specs, will often result in imperfect crimps, which is a potential risk for your hardware. 18 AWG would be too far away from original specs in terms of electrical capacities and shouldn't be used if you don't want to risk your hardware. The gallery shows how to crimp such a wire with our CTX-3 crimping tool. Insert the empty crimp terminal into the smallest slot, close the handles only to the first stop. Strip the wire on a length between 2.5 to 3.0 mm. Insert the stripped wire correctly into the rear of the crimp terminal (as described in the gallery of the CTX-3 crimp tool). Close the handles of the crimping tool until there is good physical resistance, but not as far as the crimping tool can close! Use the "pre-opening technique" for the crimp tool, by using the little lever on the inner side of the bottom handle, as described in the CTX-3 product description text. Insert the crimped wire into the rear of the connector. As always: The top of the crimp terminal faces to the top of the connector. The top of the connector is on the side where the retention lock is. If you want to sleeve the wires "shrinkless", with the wire going into the connector, as shown in our PCIe-5 12VHPWR custom cable guide, you will use our MICRO sleeve, our 17-AWG wires (18 AWG would be too low in terms of electrical performance) and our transparent MICRO heat-shrink (to melt the sleeving perfectly). Removing / extracting the crimp terminals from the connector: Just pull with enough force in the direction of the wire. Before you re-insert the wire into the connector, make sure to re-bend the retention hooks on the terminal to its original position. Don't do this too often, as the fine structure of the hook might take damage. Enjoy the original PCI-Express Gen 5, 12VHPWR 16-pin connector and your custom PCIe 5 cables!
nVidia FE 12-pin connector
Make your own custom cables for this 12-pin nVidia micro-fit connector, as you learn in our nVidia 12-pin micro-fit custom cable guide. This is the 12-pin connector for nVidia FE (founders edition) GPU. This Micro-Fit 3.0 12-pin connector can be used with the following nVidia FE models: 3060, 3060ti, 3070, 3070ti, 3080, 3080ti, 3090. One 12-pin Micro-Fit 3.0 connector comes with 24 crimp terminals, twice as many as you need per connector. This will allow you to re-crimp if things go wrong during crimping. Important knowledge about making custom cables with the 12-pin connector for nVidia FE (founders edition) Have a look at our nVidia 12-pin micro-fit custom cable guide Due to the smaller sizes in every aspect, pin to pin distance (pitch) of 3.00 mm (regular ATX / PCIe = 4.20 mm), a narrower wire insertion slot width of only 2.7 mm and smaller sized crimp terminals, you are much more limited with your choice of wire. The maximum outer diameter of your wire for the power crimp terminals can not exceed 2.7 mm, including the crimp terminal material on top of your wire insulation! The signal / side band crimp terminals are used with 23-AWG or 26-AWG wire (see gallery image for crimping technique tips). For the power wires, we recommend wire with a maximum outer diameter of 2.0 mm or less, for example a very high quality 17 AWG wire. A 16 AWG wire, as recommended in the PCIe 5 specs, will often result in imperfect crimps, which is a potential risk for your hardware. 18 AWG would be too far away from original specs in terms of electrical capacities and shouldn't be used if you don't want to risk your hardware. The gallery shows how to crimp such a wire with our CTX-3 crimping tool. Insert the empty crimp terminal into the smallest slot, close the handles only to the first stop. Strip the wire on a length between 2.5 to 3.0 mm. Insert the stripped wire correctly into the rear of the crimp terminal (as described in the gallery of the CTX-3 crimp tool). Close the handles of the crimping tool until there is good physical resistance, but not as far as the crimping tool can close! Use the "pre-opening technique" for the crimp tool, by using the little lever on the inner side of the bottom handle, as described in the CTX-3 product description text. Insert the crimped wire into the rear of the connector. As always: The top of the crimp terminal faces to the top of the connector. The top of the connector is on the side where the retention lock is. If you want to sleeve the wires "shrinkless", with the wire going into the connector, as shown in our PCIe-5 12VHPWR custom cable guide, you will use our MICRO sleeve, our 17-AWG wires (18 AWG would be too low in terms of electrical performance) and our transparent MICRO heat-shrink (to melt the sleeving perfectly). Removing / extracting the crimp terminals from the connector will work slightly different from what you have learned with regular ATX / PCIe: You only insert one tip of the extraction tool (you can also use a needle) on one outer side of the crimp terminal at a time. After insertion and removal of the extraction tool tip, it has permanently pushed the small retention hook on the side of the terminal inwards. This hook doesn't hold the terminal in place on this side anymore. Repeat the same procedure on the other side (other retention hook) and you can pull out the wire. Before you re-insert the wire into the connector, make sure to re-bend the retention hooks on the terminal to its original position. Don't do this too often, as the fine structure of the hook might take damage. Enjoy the original 12-pin connector for nVidia FE (founders edition) GPU 30xx (and Ti) series!

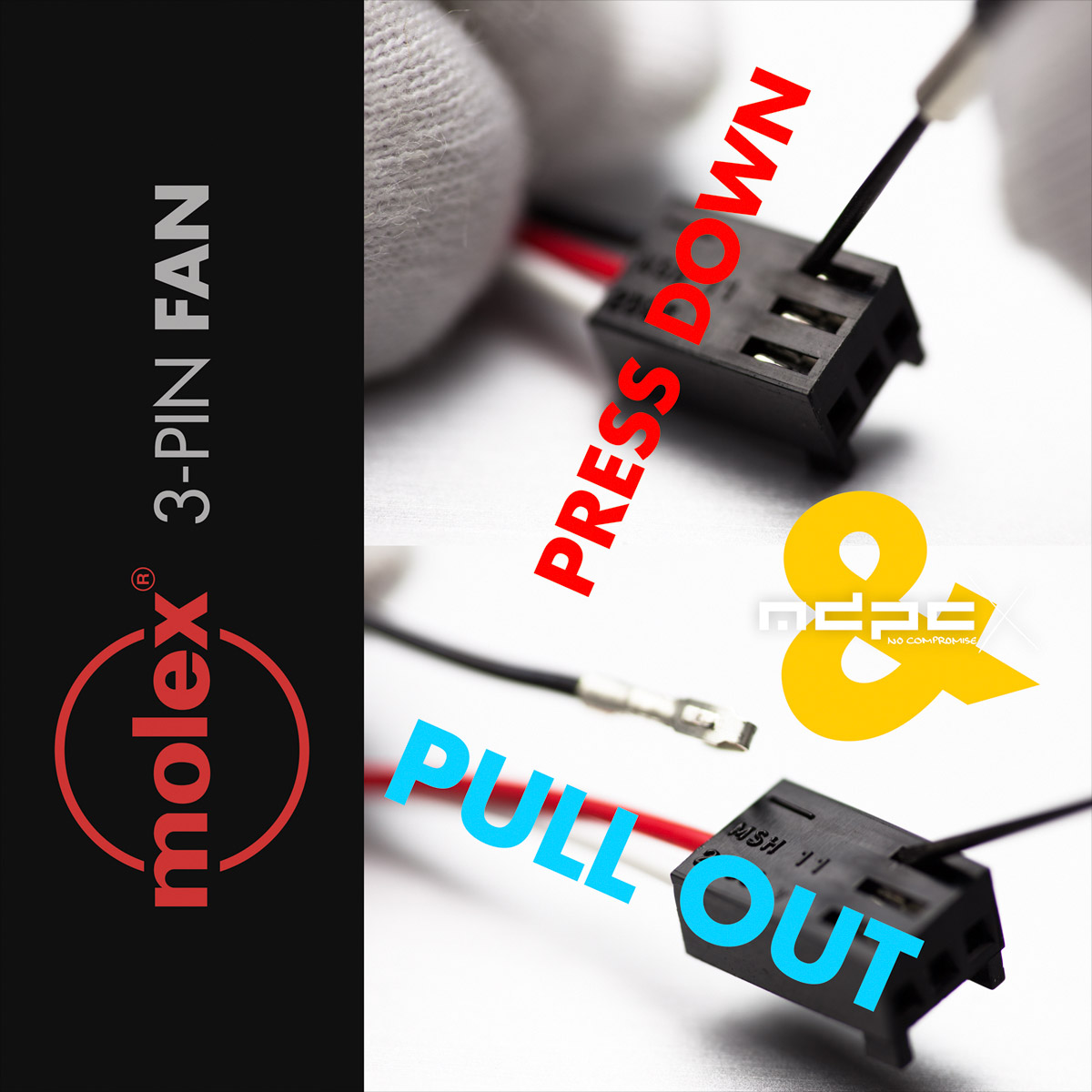

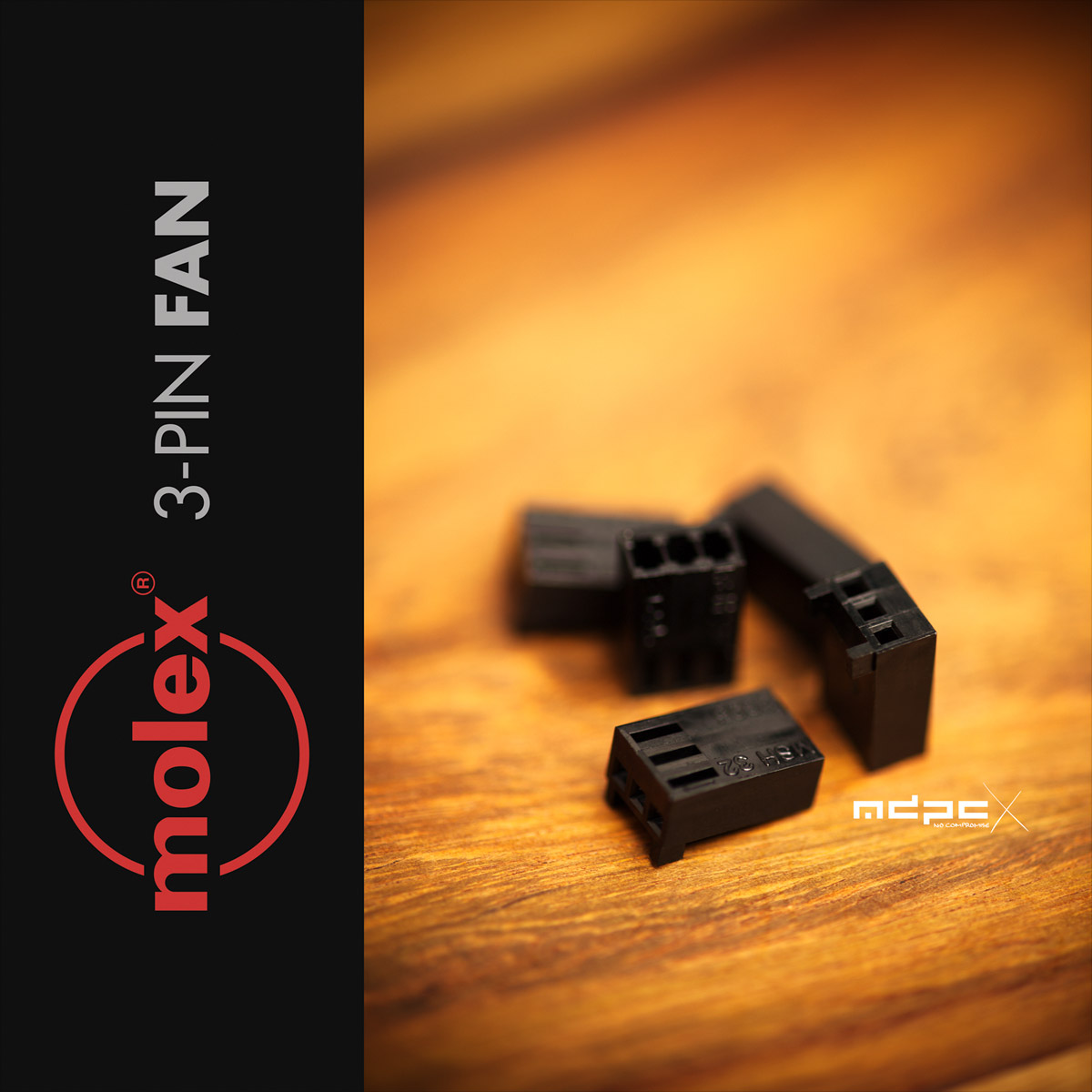

3-pin FAN Connector by MOLEX
3-pin FAN Connector by MOLEX: These are the original 3-pin FAN connectors manufactured in the USA by the MOLEX company. MOLEX typically only manufactures a darker blue shade and call it black, but our custom productions are always as black as technically possible. This is manufacturing precision at its best, which you also recognize in every aspect when you work with these 3-pin FAN connectors. Compared to all the no-name ones from China, this is just a different league. They always fit perfectly and go smoothly into the mating connectors. The special short-version guidance "wings" on these FAN connectors will not get in conflict with any heatshrink which is applied over the connector. If you want to own the highest quality in the world of connectors, this is it. You can use these 3-pin FAN connectors with existing crimp terminals already found on your wire, or you combine them with our original FAN crimp terminals. It is very easy to remove wires from FAN connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Press down the small "flap" on the top of the crimp terminal, which you access through the slots on the wide side of the connector, as shown on the second photo. While the "flap" is pressed down, you pull out the wire. Very simple!

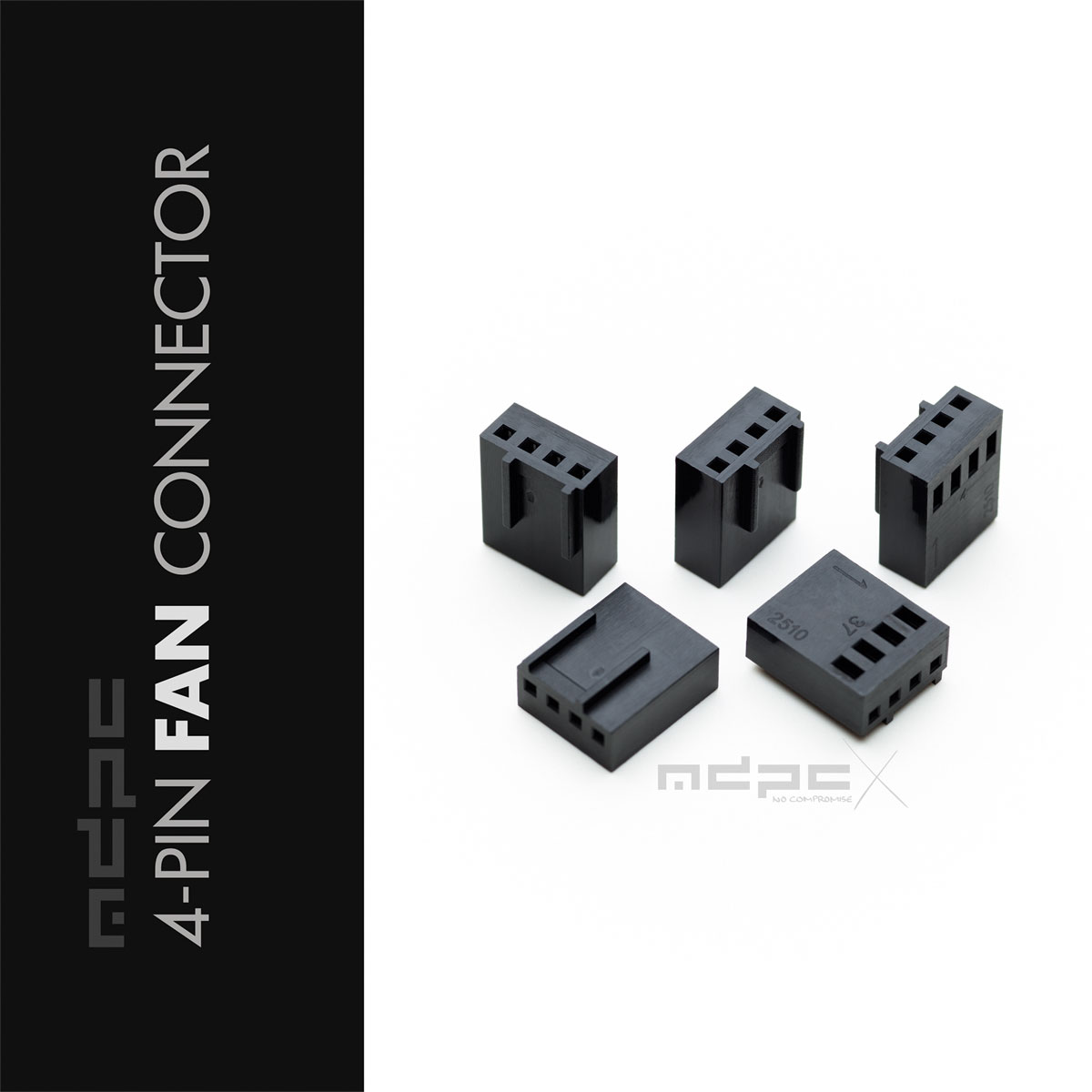

4-pin FAN Connector
This latest generation 4-pin fan connector is compatible to all fan connections on your PC motherboard. You can use these 4-pin FAN connectors with existing crimp terminals already found on your wire, or you combine them with our original FAN crimp terminals. It is very easy to remove wires from FAN connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Press down the small "flap" on the top of the crimp terminal, which you access through the slots on the wide side of the connector, as shown on the second photo. While the "flap" is pressed down, you pull out the wire. Very simple!

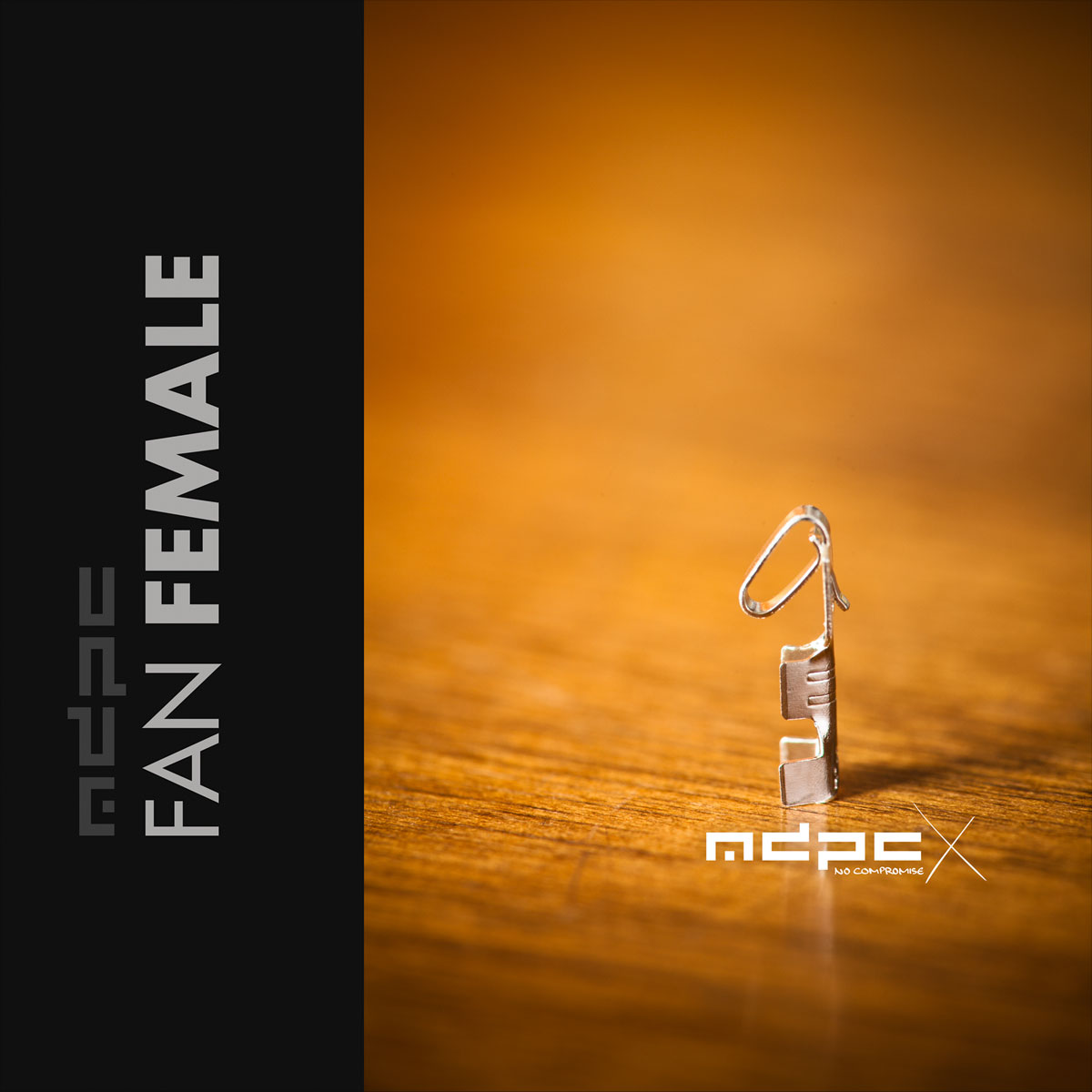

Crimp Terminal FAN
60x FAN FEMALE crimp terminals per 1 ordered unit for our fan CONNECTORS: These are the highest quality female crimp terminals for fan cables, fan connectors and devices which use PC motherboard onboard fan connectors for their function. You can use these FAN crimp terminals on all common wire sizes, which you find e. g. in PC / computer systems that connect to onboard fan connectors. Crimping of these female FAN crimp terminals on our 23AWG (0.25mm²) hookup wire or standard 26AWG (0.22 mm²) electrical wire will be perfect. MDPC-X recommends electrical wire with PVC insulation for crimping female FAN crimp terminals. You can find electrical wire here at MDPC-X and at some of our MDPC-X Stores around the world or in shops for electrical supplies. Combine these female FAN crimp terminals with our legendary Crimping Tool for FAN crimp terminals and you will have the full joy of shortening or building your own cables. A relatively small investment into absolute freedom in the world of creativity, cable sleeving and technology.
Content: 60 piece (€0.06 / 1 piece)

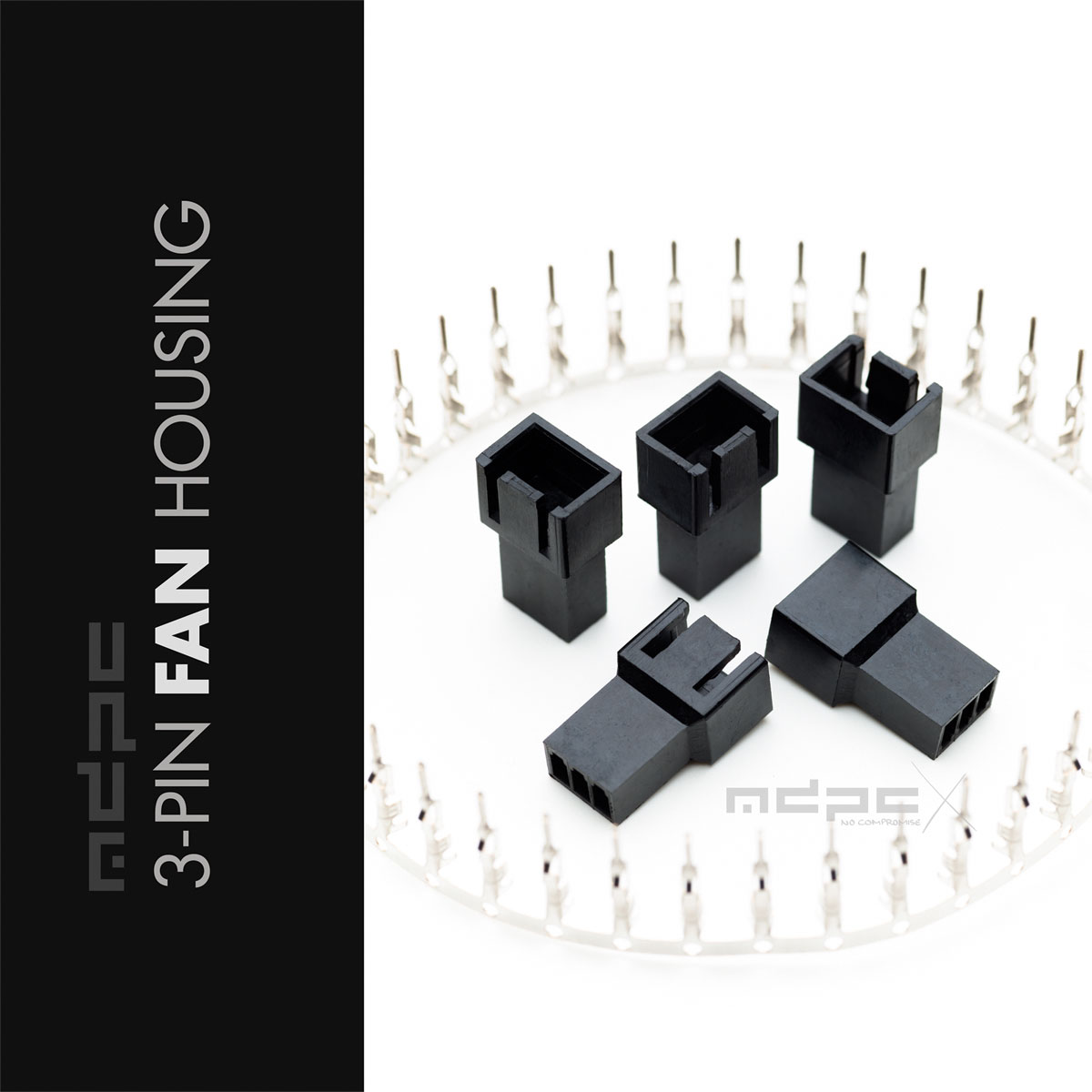

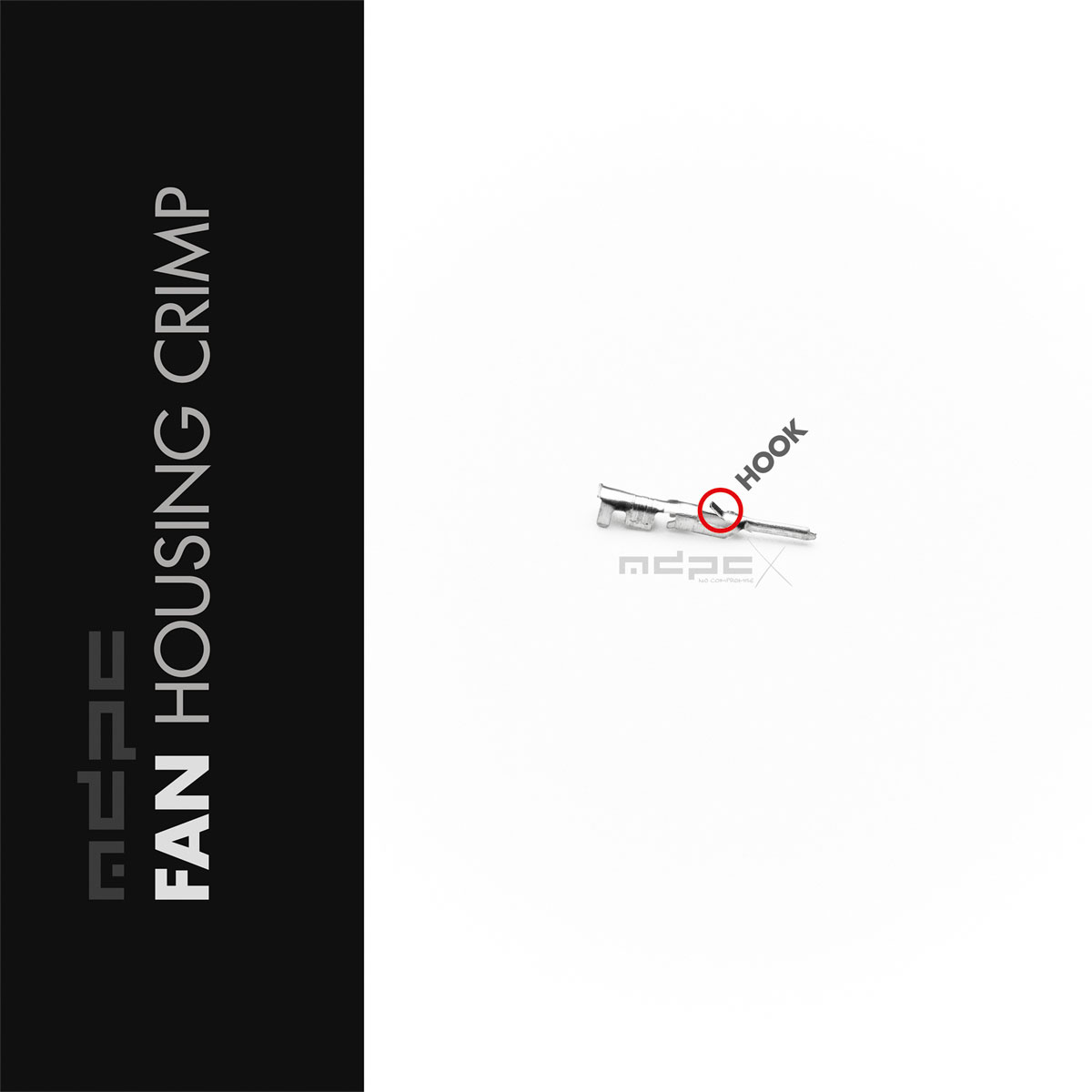

3-pin FAN HOUSING - 6 crimps
3-pin FAN Housing with 6 crimp terminals: This 3-pin fan housing can be used to extend fan cables and similar. It is compatible with 3-pin fan connectors. How to insert and extract the crimp terminals into and from your fan housing is shown in the additional gallery photos. We only offer the connectors in combination with the corresponding crimp terminals, to avoid any incompatibilities on your end. One connector needs 3 crimp terminals, but we add twice as much: Per connector you get 6 crimp terminals (e.g. 5 connectors come with 30 crimp terminals, 10 with 60 etc.). You crimp them in the smallest slot opening of our CTX-3 crimping tool. It works with wire ranging from 26 to 22 AWG and with a small trick (strip the wire longer, so you also crimp the "insulation crimp" onto the conductor too) you can also use them with our 17 AWG wire.

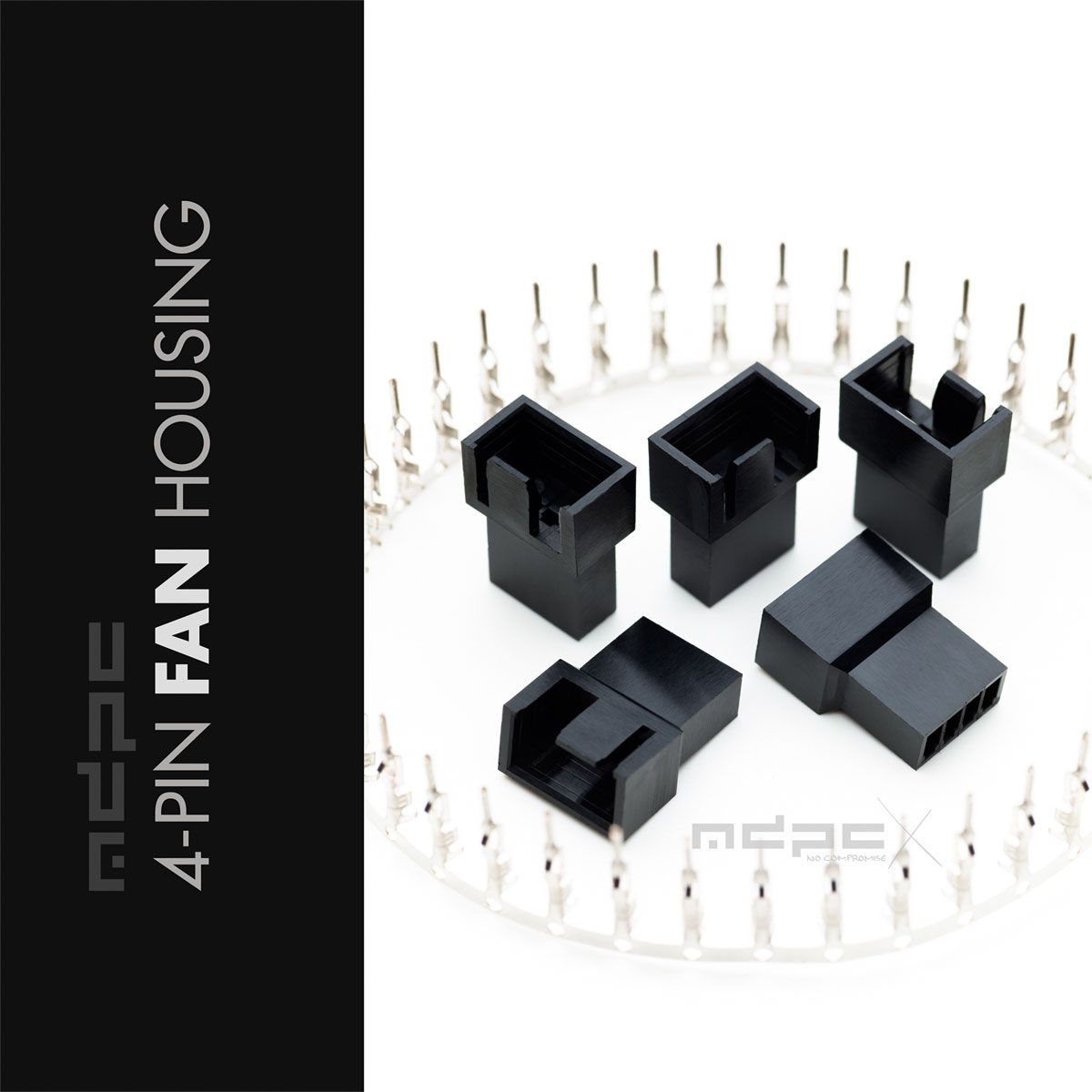

4-pin FAN HOUSING - 8 crimps
4-pin FAN Housing with 8 crimp terminals: This 4-pin fan housing can be used to extend fan cables and similar. It is compatible with 4-pin fan connectors (both types of locking ramps compatibility: Both ramps on outer positions or the "3-pin" positions) and also with 3-pin fan connectors! How to insert and extract the crimp terminals into and from your fan housing is shown in the additional gallery photos. We only offer the connectors in combination with the corresponding crimp terminals, to avoid any incompatibilities on your end. One connector needs 4 crimp terminals, but we add twice as much: Per connector you get 8 crimp terminals (e.g. 5 connectors come with 40 crimp terminals, 10 with 80 etc.). You crimp them in the smallest slot opening of our CTX-3 crimping tool. It works with wire ranging from 26 to 22 AWG and with a small trick (strip the wire longer, so you also crimp the "insulation crimp" onto the conductor too) you can also use them with our 17 AWG wire.

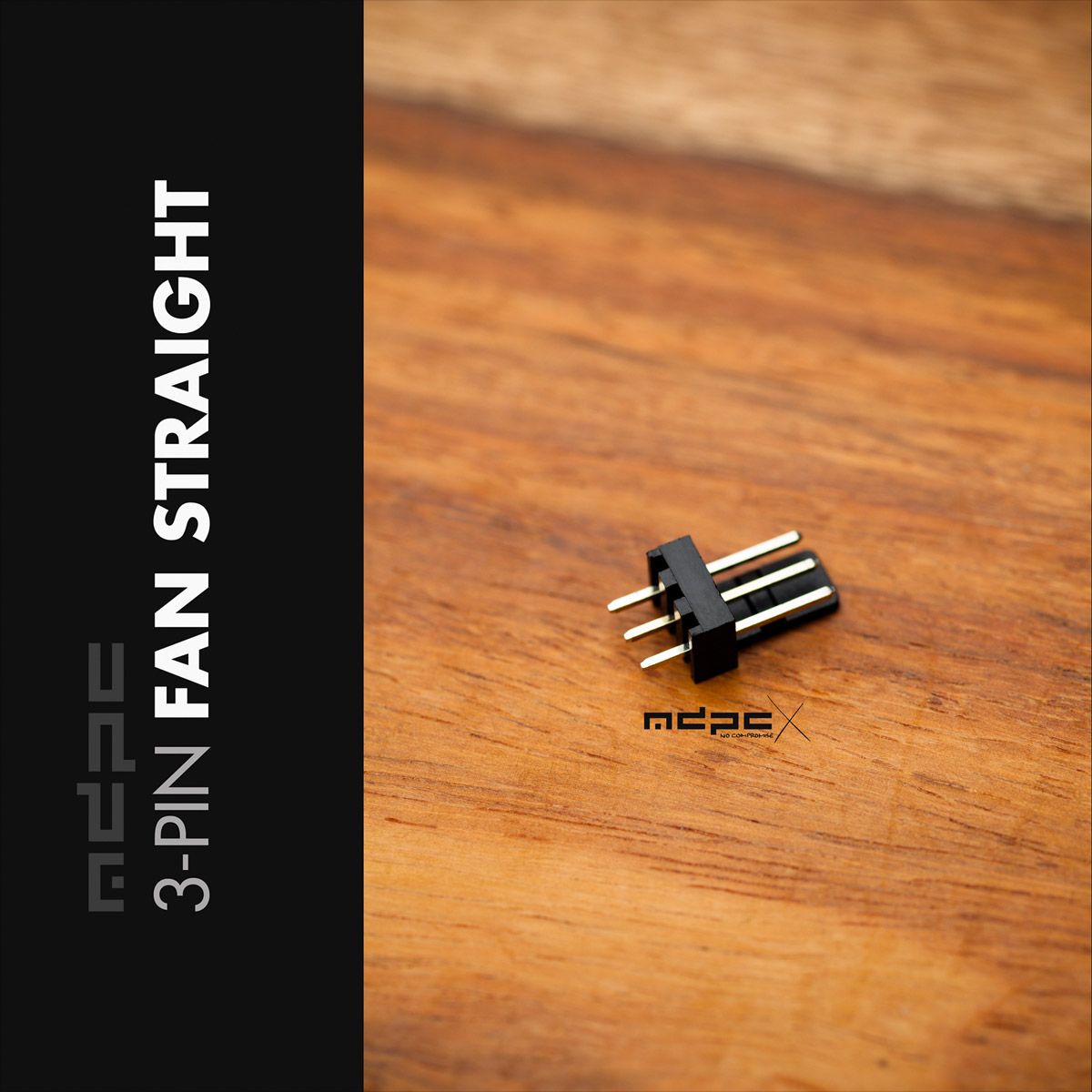

3-pin FAN Extension Connector STRAIGHT
3-pin FAN Extender connector STRAIGHT: With the help of this black 3-pin extension connector, you can extend all cables which use regular fan connectors. You typically solder your wires to the short ends of this extension connector. You can also use the DUPONT crimp terminals on the short ends instead of soldering wires to this fan extension connector. After this you can even solder the DUPONT to the metal pins.

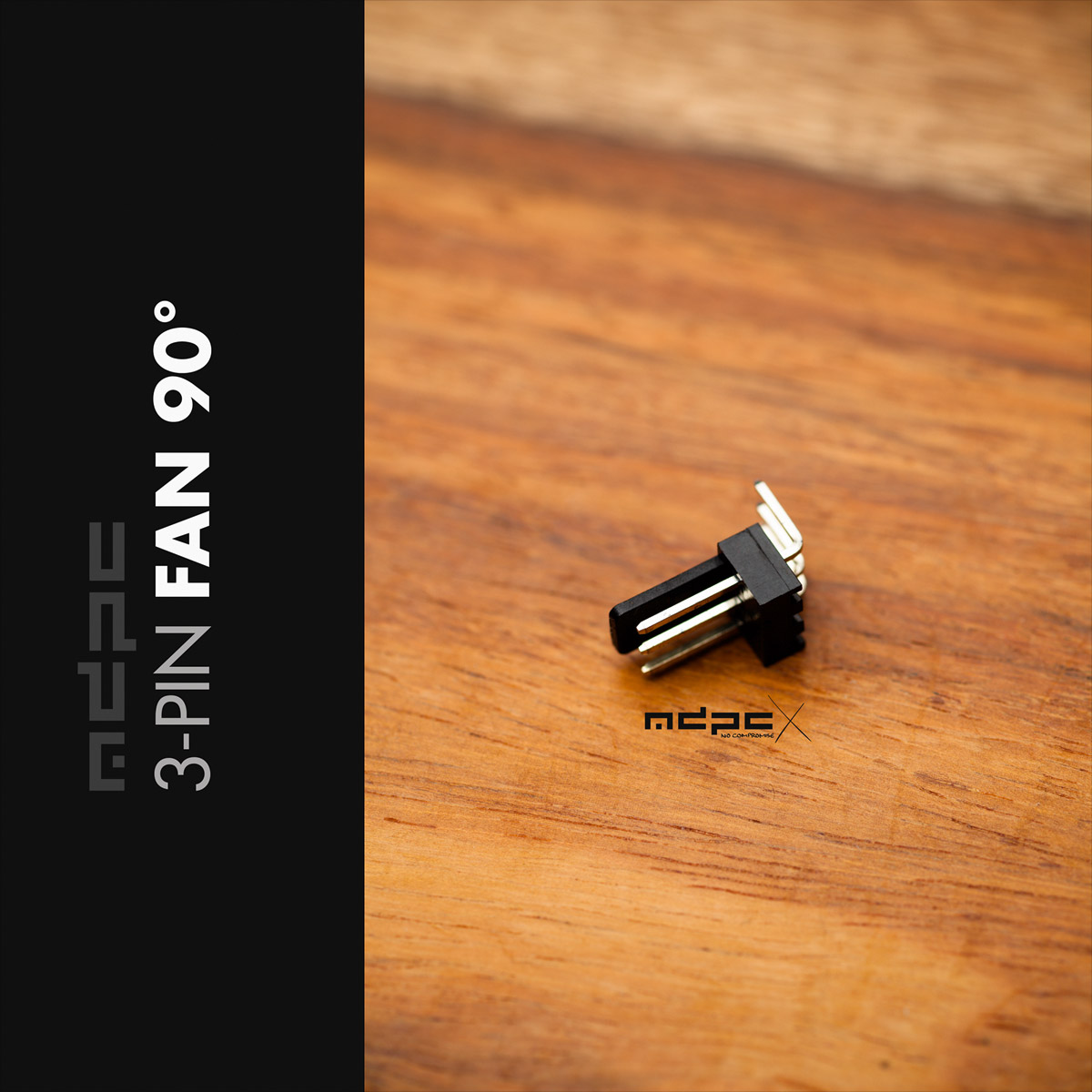

3-pin FAN Extension Connector 90°
3-pin FAN Extender connector 90° ANGLE: With the help of this black 90° angle 3-pin extension connector, you can extend all cables which use regular fan connectors. You typically solder your wires to the short ends of this extension connector. You can also use the DUPONT crimp terminals on the short ends instead of soldering wires to this fan extension connector. After this you can even solder the DUPONT to the metal pins.

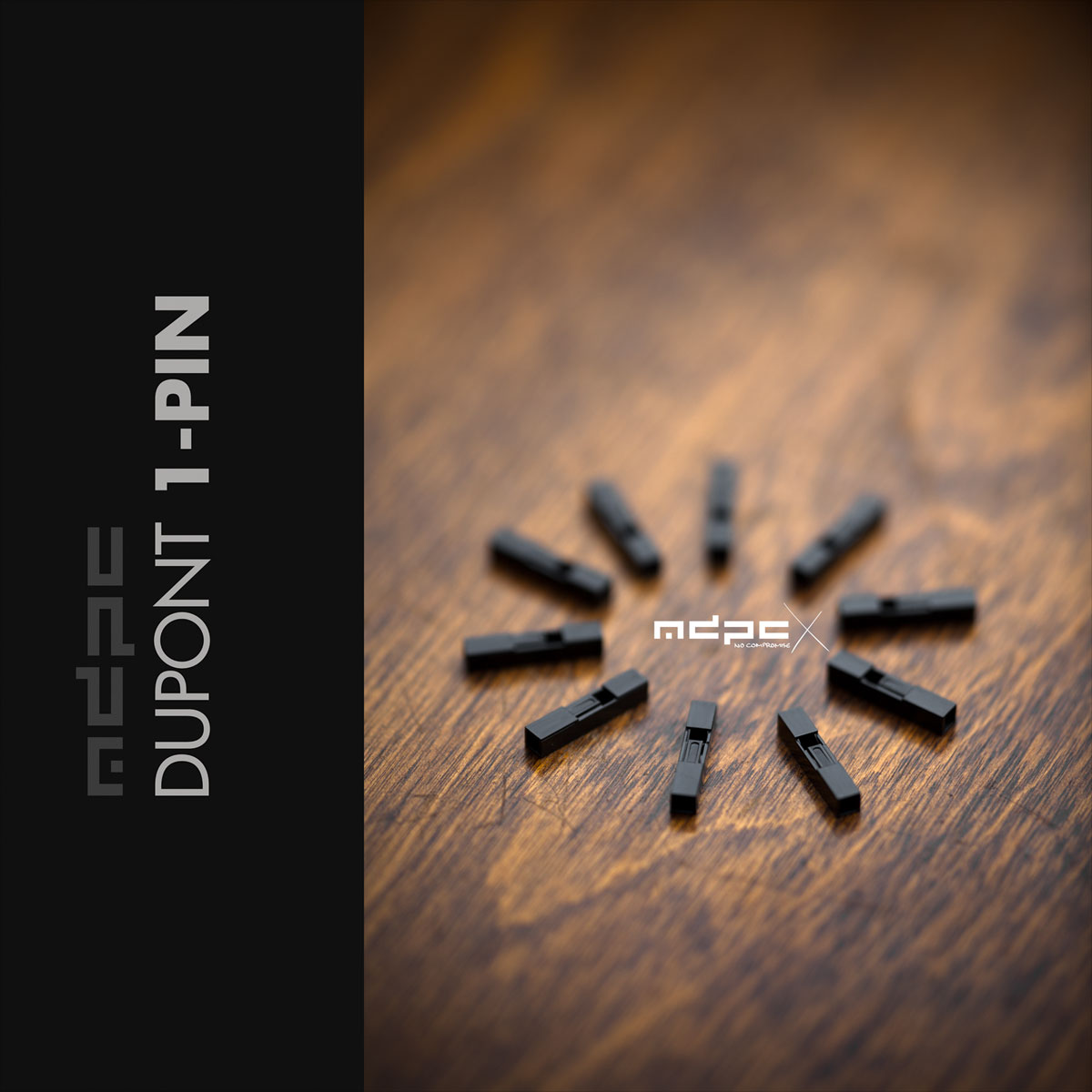

1-pin DUPONT Connector
1-pin DUPONT connectors are typically used for all internal motherboard sockets with a 2.54 mm grid. You can also get the DUPONT crimp terminals here at MDPC-X. Our SMALL size cable sleeves go over the 1-pin DUPONT connectors. You will typically use the 1-pin DUPONT connectors as internal frontpanel power / reset / LED connectors, but can also use them beautifully on regular fan connectors found on the motherboard. DUPONT connectors and DUPONT crimp terminals are also used in many other non-PC applications, like flipper automats, RC-models etc. The 1-pin DUPONT connectors are typically used with 26AWG (0.22 mm²) hookup wires - and of course with our more advanced 23AWG (0.25 mm²) hookup wire. It is very easy to remove wires from DUPONT connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Carefully pull up the small "flap" on the top of the DUPONT connector. While the "flap" is pulled up, you pull out the wire. Very simple!

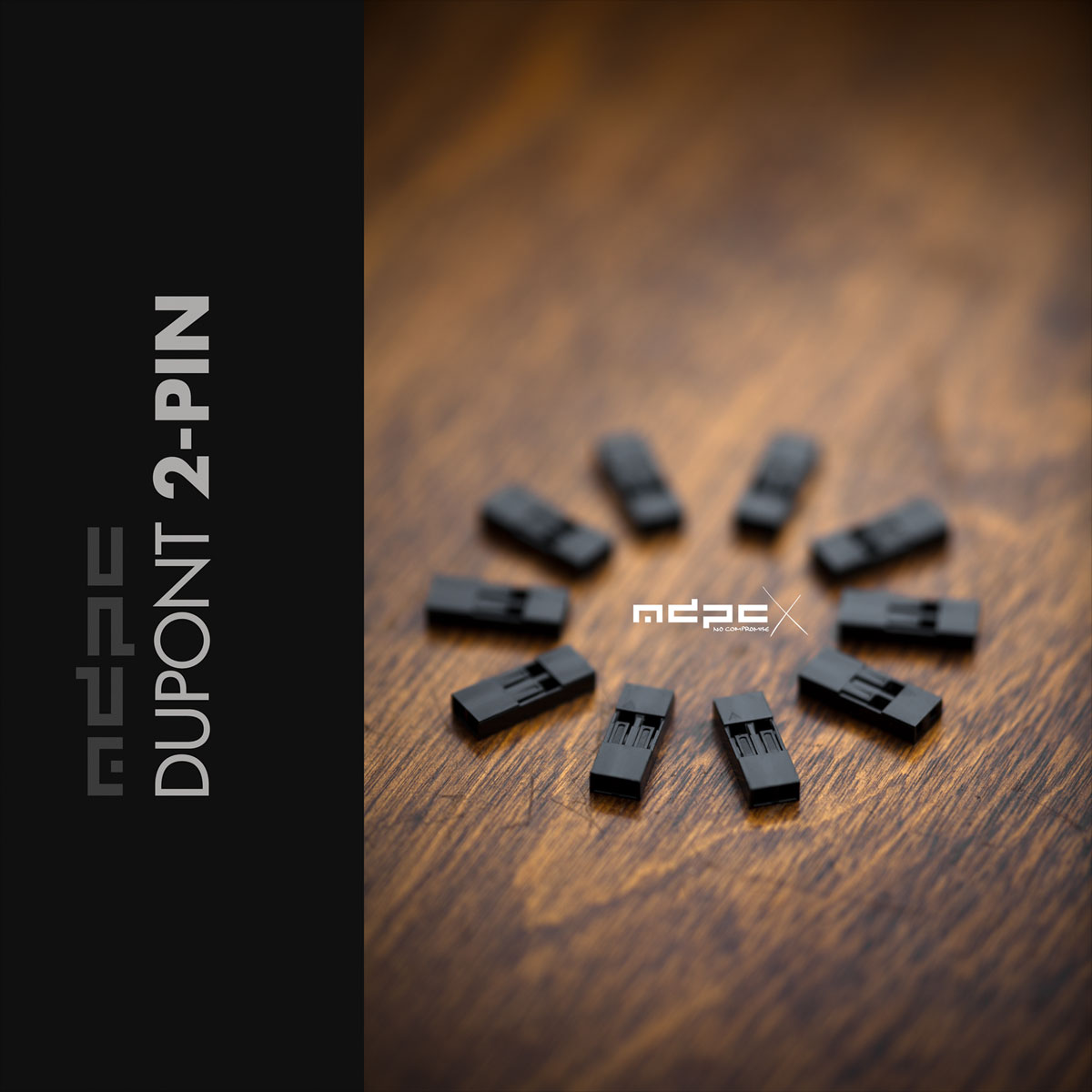

2-pin DUPONT Connector
2-pin DUPONT connectors are typically used for all internal motherboard sockets with a 2.54 mm grid. You can also get the DUPONT crimp terminals here at MDPC-X. Our SMALL size cable sleeves go over the 2-pin DUPONT connectors. You will typically use the 2-pin DUPONT connectors as internal frontpanel power / reset / LED connectors. DUPONT connectors and DUPONT crimp terminals are also used in many other non-PC applications, like flipper automats, RC-models etc. The 2-pin DUPONT connectors are typically used with 26AWG (0.22 mm²) hookup wires - and of course with our more advanced 23AWG (0.25 mm²) hookup wire. It is very easy to remove wires from DUPONT connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Carefully pull up the small "flap" on the top of the DUPONT connector. While the "flap" is pulled up, you pull out the wire. Very simple!

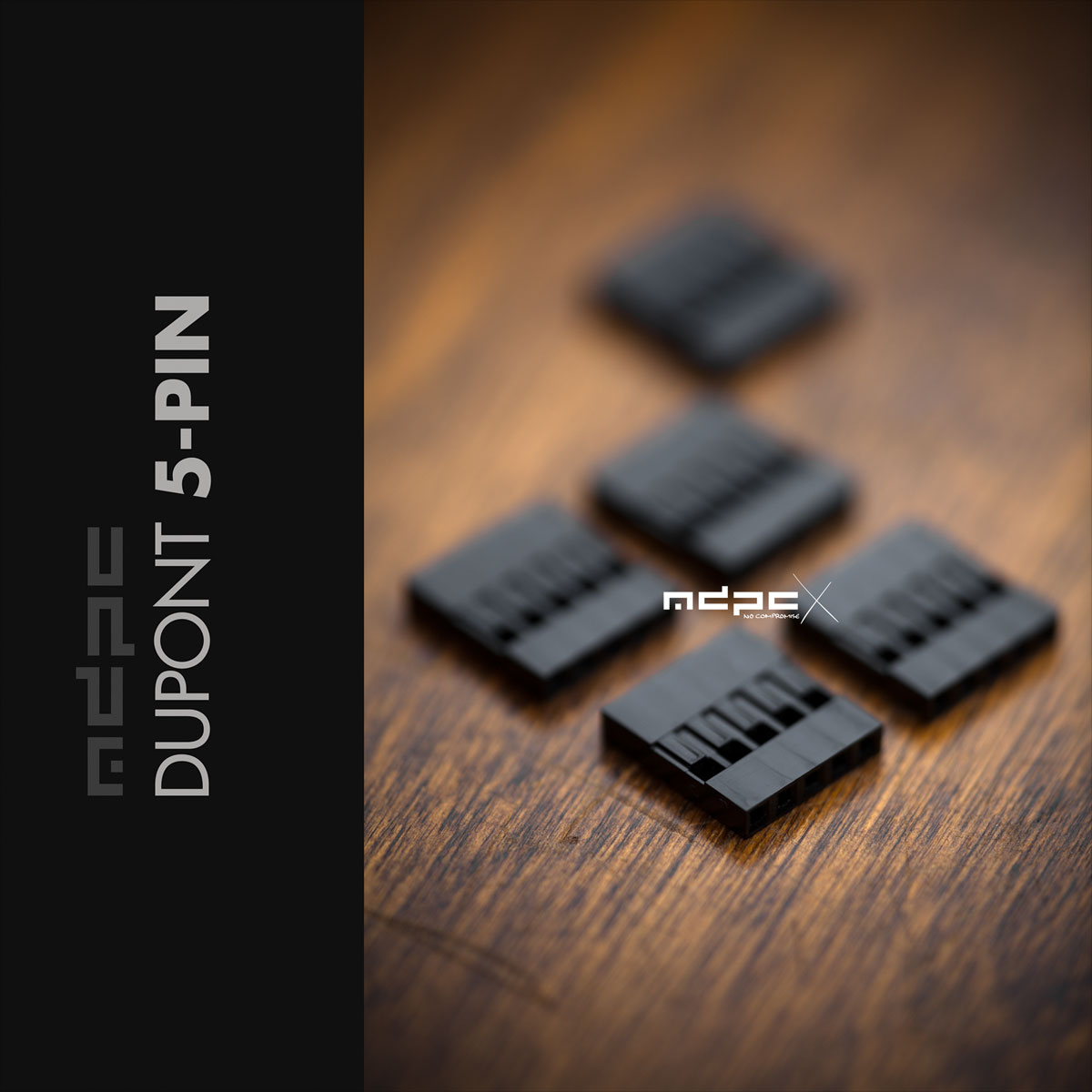

5-pin DUPONT Connector
5-pin DUPONT connectors are typically used for all internal motherboard sockets with a 2.54 mm grid. You can also get the DUPONT crimp terminals here at MDPC-X. Our MEDIUM and FP size cable sleeves go over the 5-pin DUPONT connectors. You will typically use the 5-pin DUPONT connectors as internal frontpanel power / reset / LED connectors. DUPONT connectors and DUPONT crimp terminals are also used in many other non-PC applications, like flipper automats, RC-models etc. The 5-pin DUPONT connectors are typically used with 26AWG (0.22 mm²) hookup wires - and of course with our more advanced 23AWG (0.25 mm²) hookup wire. It is very easy to remove wires from DUPONT connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Carefully pull up the small "flap" on the top of the DUPONT connector. While the "flap" is pulled up, you pull out the wire. Very simple!

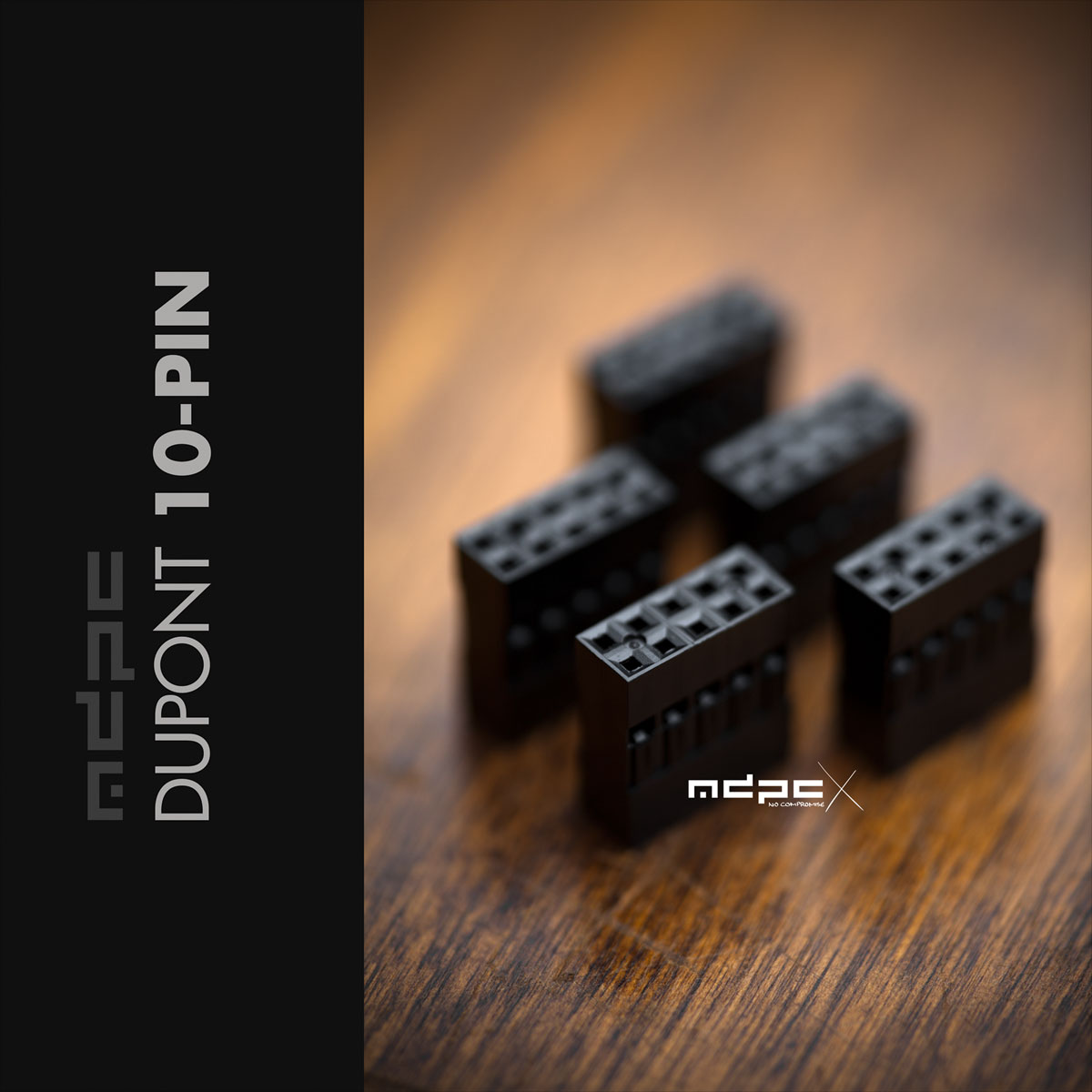

10-pin DUPONT Connector
10-pin DUPONT connectors have 2 rows with 5 slots. These 10-pin DUPONT connectors are typically used for all internal motherboard sockets with a 2.54 mm grid. You can also get the DUPONT crimp terminals here at MDPC-X. Our MEDIUM size cable sleeves go over the 10-pin DUPONT connectors. You will typically use the 10-pin DUPONT connectors as internal USB connectors, internal AUDIO connectors and similar ones. DUPONT connectors and DUPONT crimp terminals are also used in many other non-PC applications, like flipper automats, RC-models etc. The 10-pin DUPONT connectors are typically used with 26AWG (0.22 mm²) hookup wires - and of course with our more advanced 23AWG (0.25 mm²) hookup wire. It is very easy to remove wires from DUPONT connectors: You will only need a small screwdriver, scissor, knife or similar small device with a thin tip. Carefully pull up the small "flap" on the top of the DUPONT connector. While the "flap" is pulled up, you pull out the wire. Very simple!

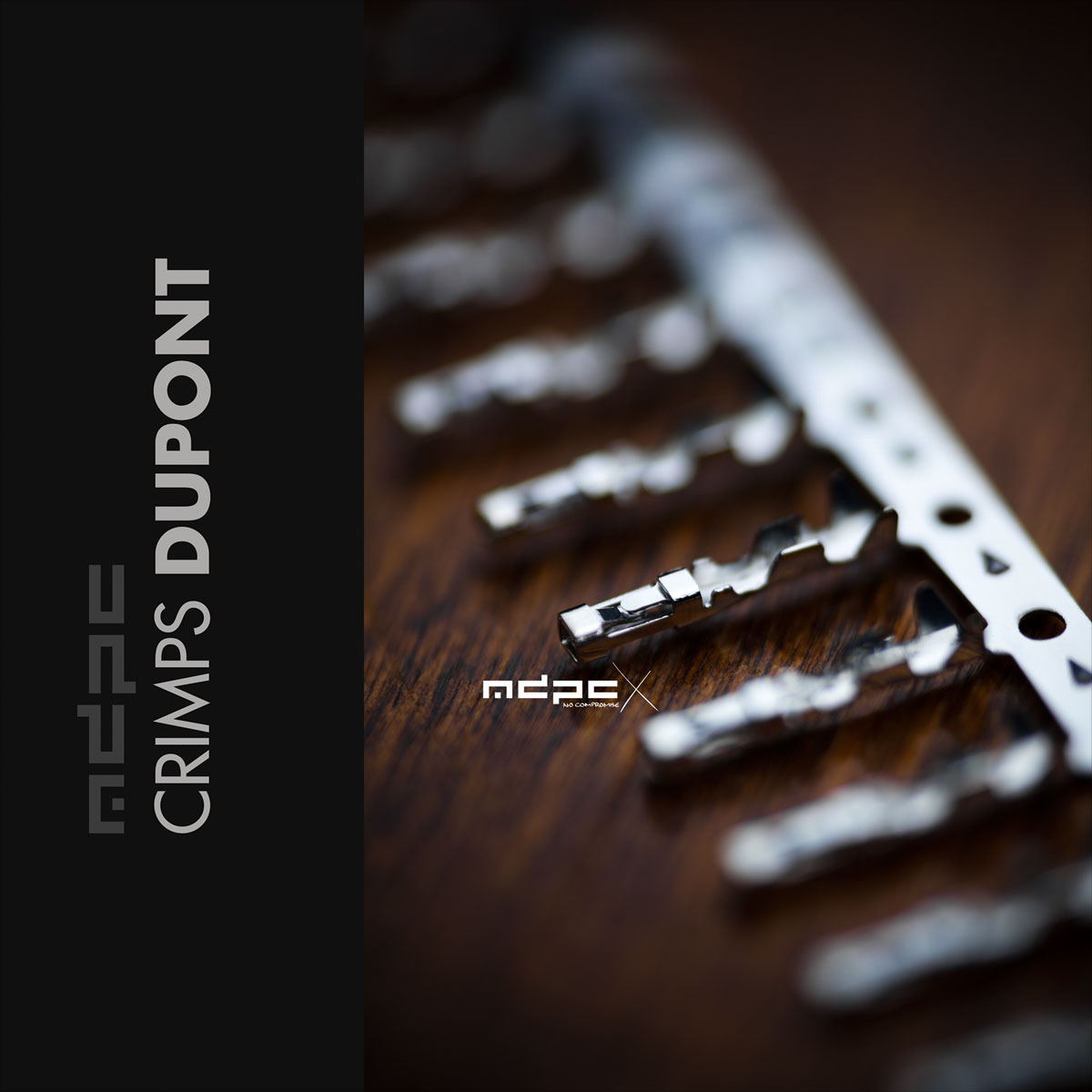

Crimp Terminal DUPONT
This offering includes 60x DUPONT crimp terminals per 1 ordered unit. DUPONT crimp terminals are typically used for all internal motherboard DUPONT connectors with a 2.54 mm grid. You can also get the DUPONT connectors here at MDPC-X. The following connectors are compatible with the DUPONT crimp terminals: Internal USB connectors, internal AUDIO connectors, internal front panel conenctors for Power, Reset, Power-LED, HDD-LED etc. You can even use them for onboard fan connectors. DUPONT crimp terminals and DUPONT connectors are also used in many other non-PC applications, like flipper automats, RC-models etc. Crimping DUPONT crimp terminals with our CTX³ Crimping Tool will be absolutely perfect on the typical hookup wires with 26AWG (0.22 mm²) - and of course with our more advanced 23AWG (0.25 mm²) hookup wire.
Content: 60 piece (€0.06 / 1 piece)
FAT4 "Molex" Connector
FAT4 "Molex" connector with 8 crimp terminals. People often call this connector "Molex" connector, which is wrong. A long time ago, the MOLEX company created the specification for this connector type, as they did to a thousand other connector types. The MOLEX company has stopped manufacturing this part a long time ago, as it officially became end of life. Somehow this connector type never died though and other companies had to continue making it. You can use them with different wire sizes (18 AWG, 0.75 mm², 17 AWG 1.00 mm² - and our very special 15 AWG 1.50 mm²). This 5 1/4" device power connector (that's what it was called officially) comes with 8 crimp terminals, twice as much as you need. The tool for de-pinning the "Molex" FAT4 connectors is our SMW "Molex" Pin Remover. To crimp the crimp terminals onto your wires, we highly recommend our MDPC CTX3 Crimping Tool. It will create absolutely perfect crimps.

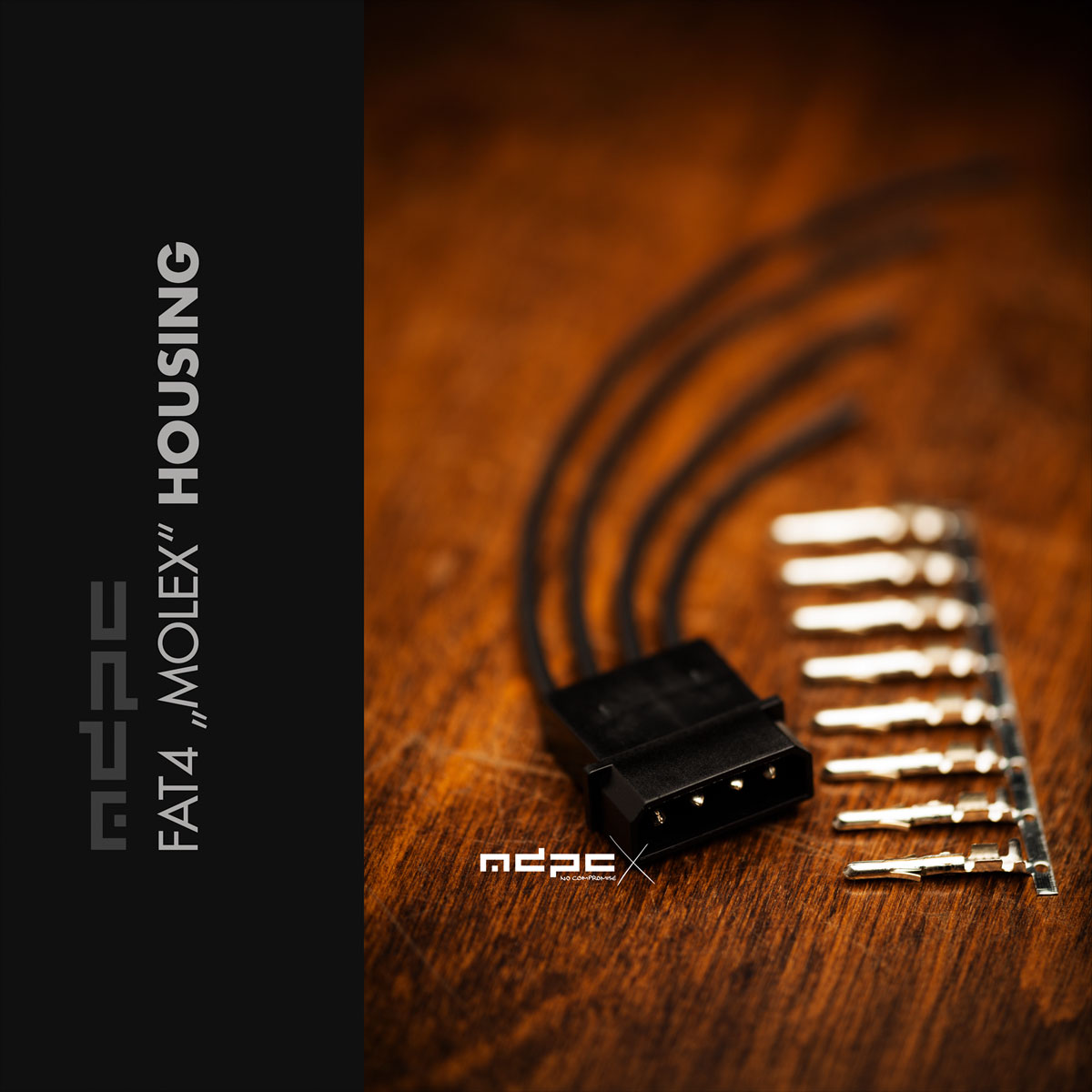

FAT4 "Molex" HOUSING
FAT4 "Molex" housing with 8 crimp terminals. People often call this housing a "Molex" housing, which is wrong. A long time ago, the MOLEX company created the specification for this housing type, as they did to a thousand other housing types. The MOLEX company has stopped manufacturing this part a long time ago, as it officially became end of life. Somehow this housing type never died though and other companies had to continue making it. You can use them with different wire sizes (18 AWG, 0.75 mm², 17 AWG 1.00 mm² - and our very special 15 AWG 1.50 mm²). This 5 1/4" device power housing (that's what it was called officially) comes with 8 crimp terminals, twice as much as you need. The tool for de-pinning the "Molex" FAT4 housing is our SMW "Molex" Pin Remover. To crimp the crimp terminals onto your wires, we highly recommend our MDPC CTX3 Crimping Tool. It will create absolutely perfect crimps.

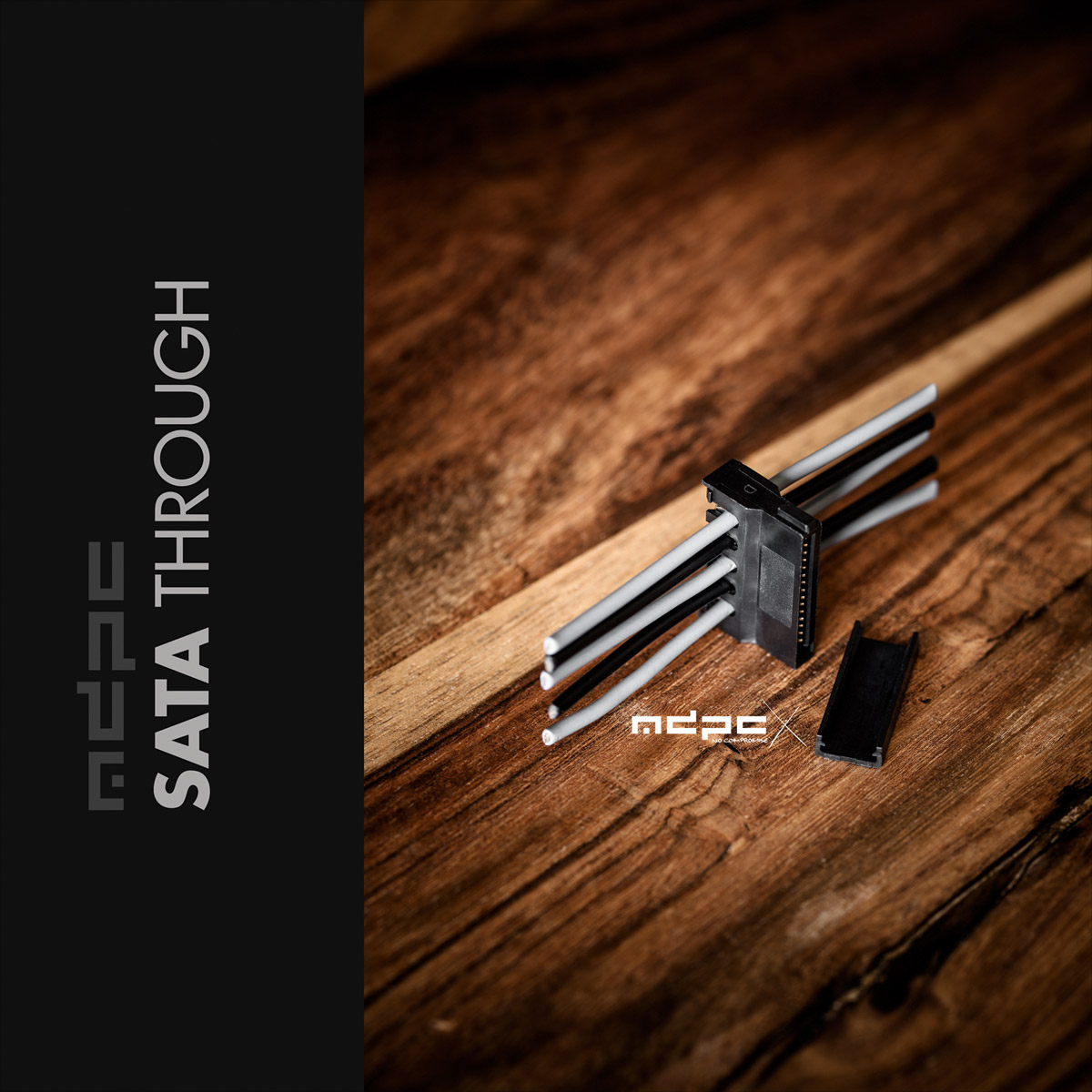

SATA Connector THROUGH
This is an extremely compact SATA THROUGH push-in connector, which has a depth of only 16mm including the cap. The THROUGH version is made for wires going through the connector, so you can install them in a row of multiple connectors. The cap of the THROUGH connector is open on both sides, for the pass through of the wire. For the last connector on the wire you can use the SATA END push-in connector or of course the SATA crimp connector. The wires (18 AWG, 0.75 mm², 17 AWG 1.00 mm²) are simply pressed down completely into the "blades" of the connector with a flat screwdriver or similar wide object, while you hold the connector stable on a surface. The "blades" of the connector cut through the wire-insulation and make contact to the wire core. You can see the procedure on the third photo in the product gallery.

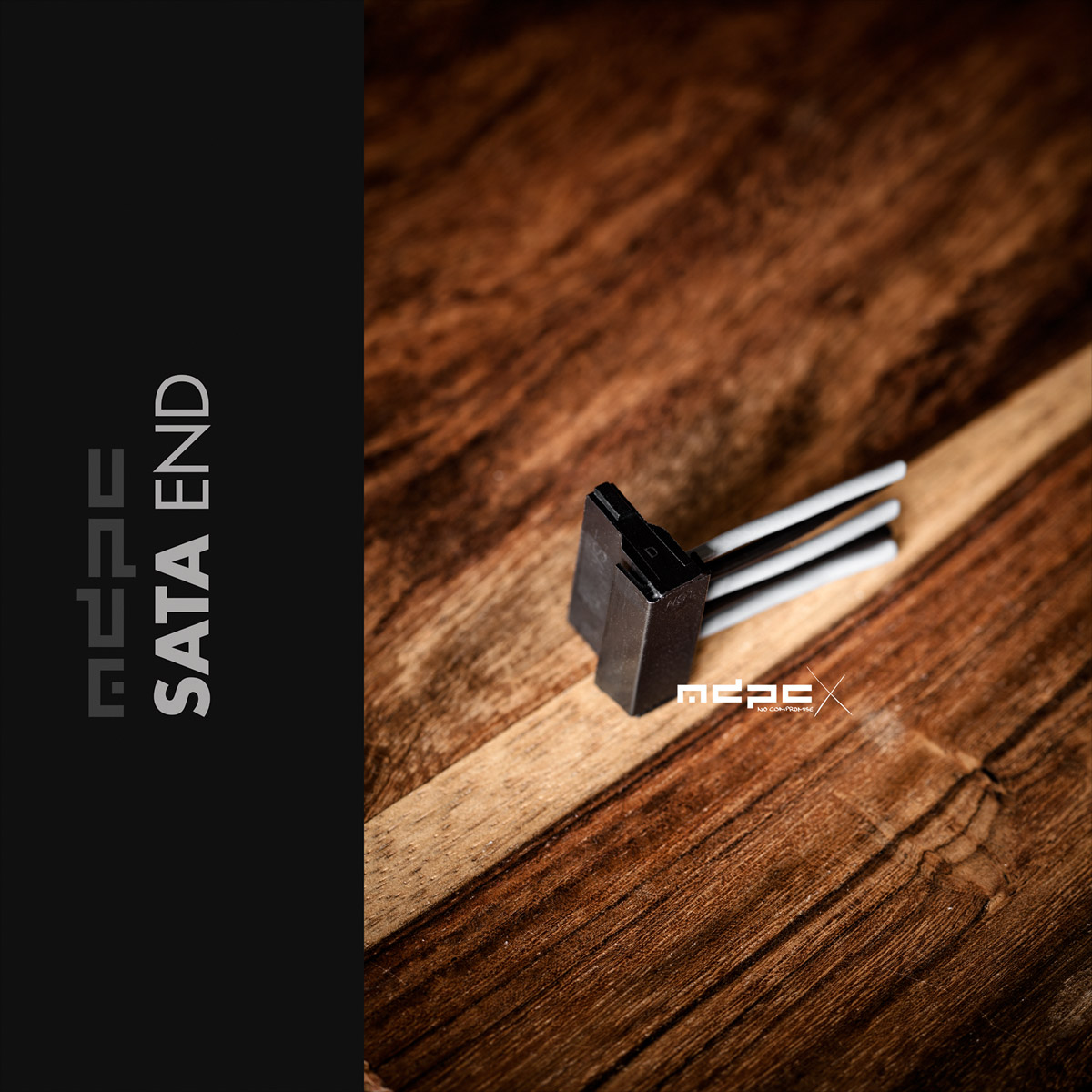

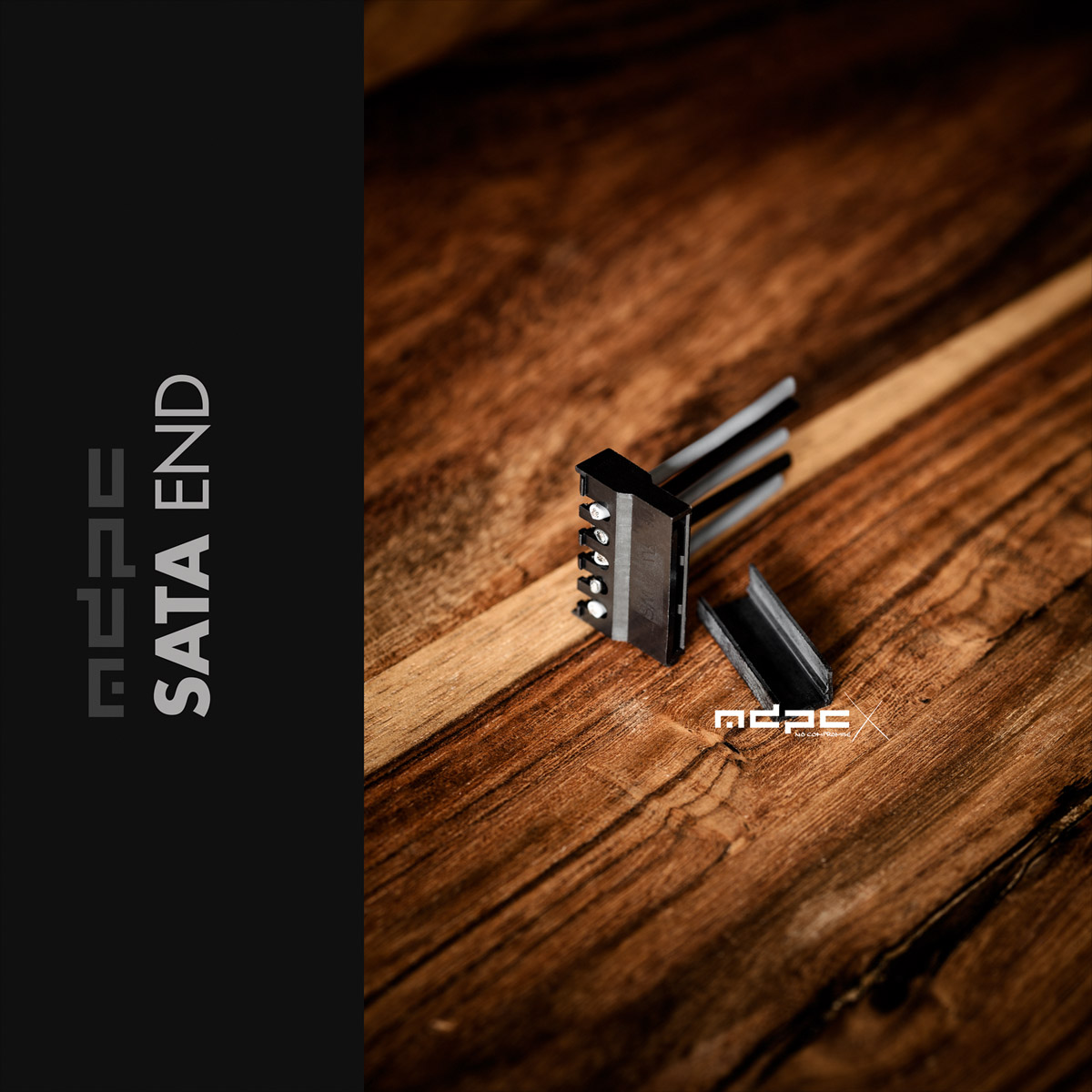

SATA Connector END
This is an extremely compact SATA END push-in connector, which has a depth of only 16mm including the cap. The cap of the END connector covers the open ends of the wires. The wires (18 AWG, 0.75 mm², 17 AWG 1.00 mm²) are simply pressed down completely into the "blades" of the connector with a flat screwdriver or similar wide object, while you hold the connector stable on a surface. The "blades" of the connector cut through the wire-insulation and make contact to the wire core. You can see the procedure on the third photo in the product gallery.

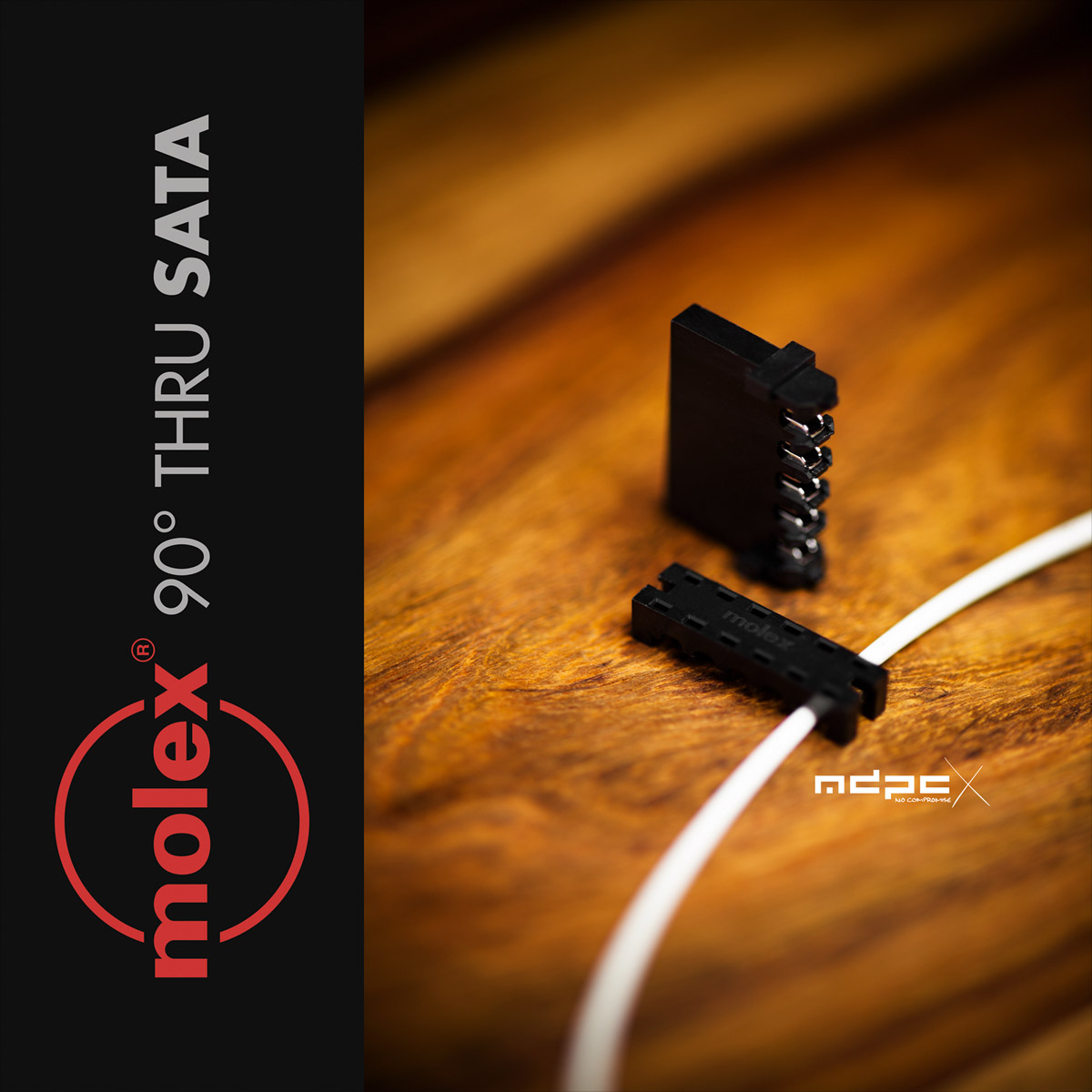

SATA Connector THROUGH by MOLEX
SATA Connector 90° THROUGH by MOLEX: This is the original 90° SATA connector THROUGH, manufactured in the USA by the MOLEX company. The THROUGH version is made for wires going through the connector, so you can install them in a row of multiple connectors. The cap of the THROUGH connector is open on both sides, for the pass through of the wire. For the last connector on the wire you can use the SATA crimp connector. The wires (18 AWG, 0.75 mm², 17 AWG 1.00 mm²) are simply pressed down completely into the "blades" of the connector with a flat screwdriver or similar wide object, while you hold the connector stable on a surface. The "blades" of the connector cut through the wire-insulation and make contact to the wire core. You can see the procedure on the second photo in the product gallery. A different league in the world of connectors. The highest precision connectivity with 100% specification matching, by the company which makes the specifications - the MOLEX company. Enjoy the original!

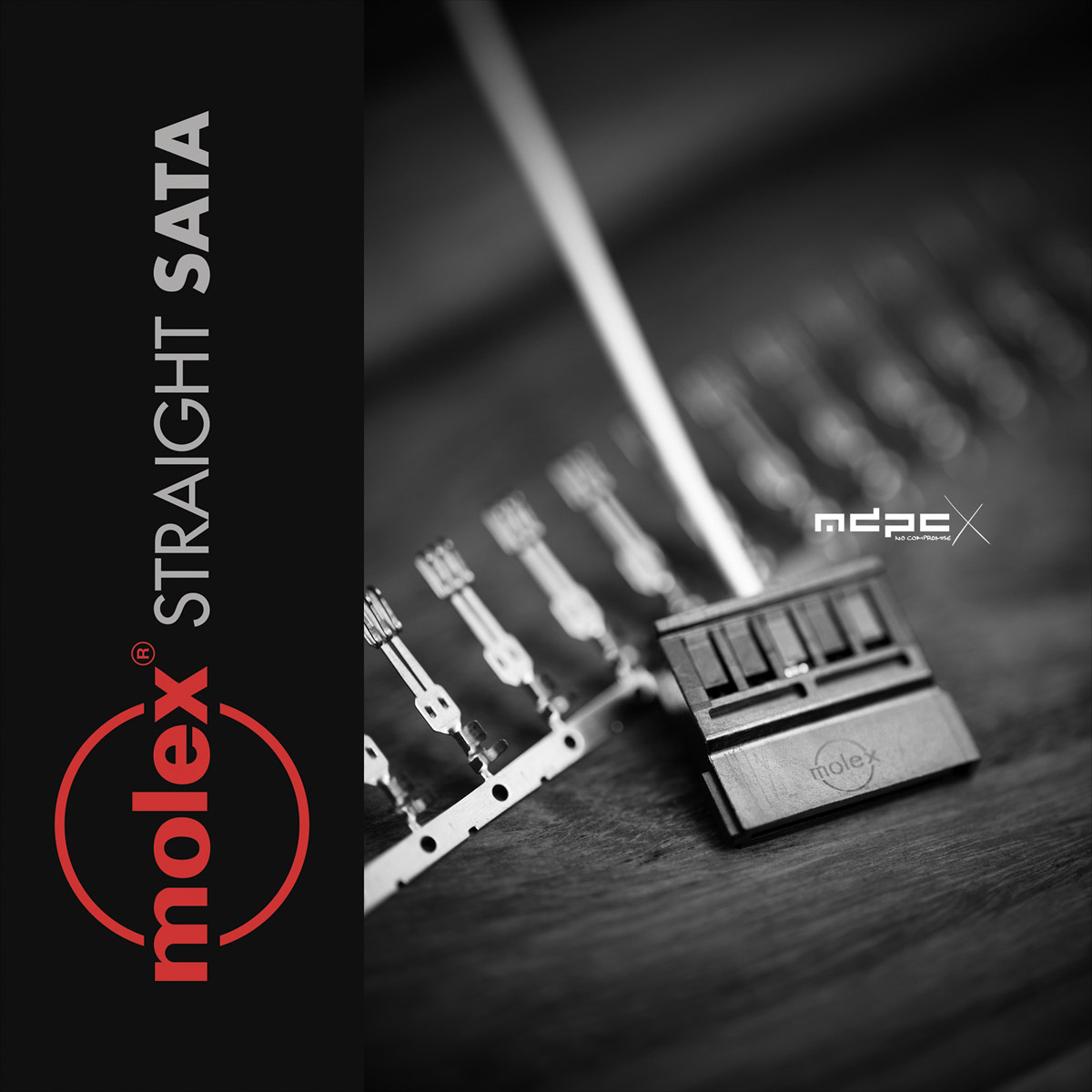

SATA Crimp Connector by MOLEX
SATA Crimp Connector by MOLEX with straight wire insertion (including 10 crimp terminals): This is the original SATA crimp connector, manufactured in the USA by the MOLEX company. The highest precision connectivity with 100% specification matching, by the company which makes the specifications - the MOLEX company. This is just a different league. You have to use these SATA crimp connectors in combination with the supplied crimp terminals and 18 AWG, 17 AWG or our special 15 AWG wire. We supply 10 original MOLEX crimp terminals with 1 connector, even that you will only need 5 terminals. You have to crimp these terminals onto your wire with the Crimping Tool. Enjoy the original!

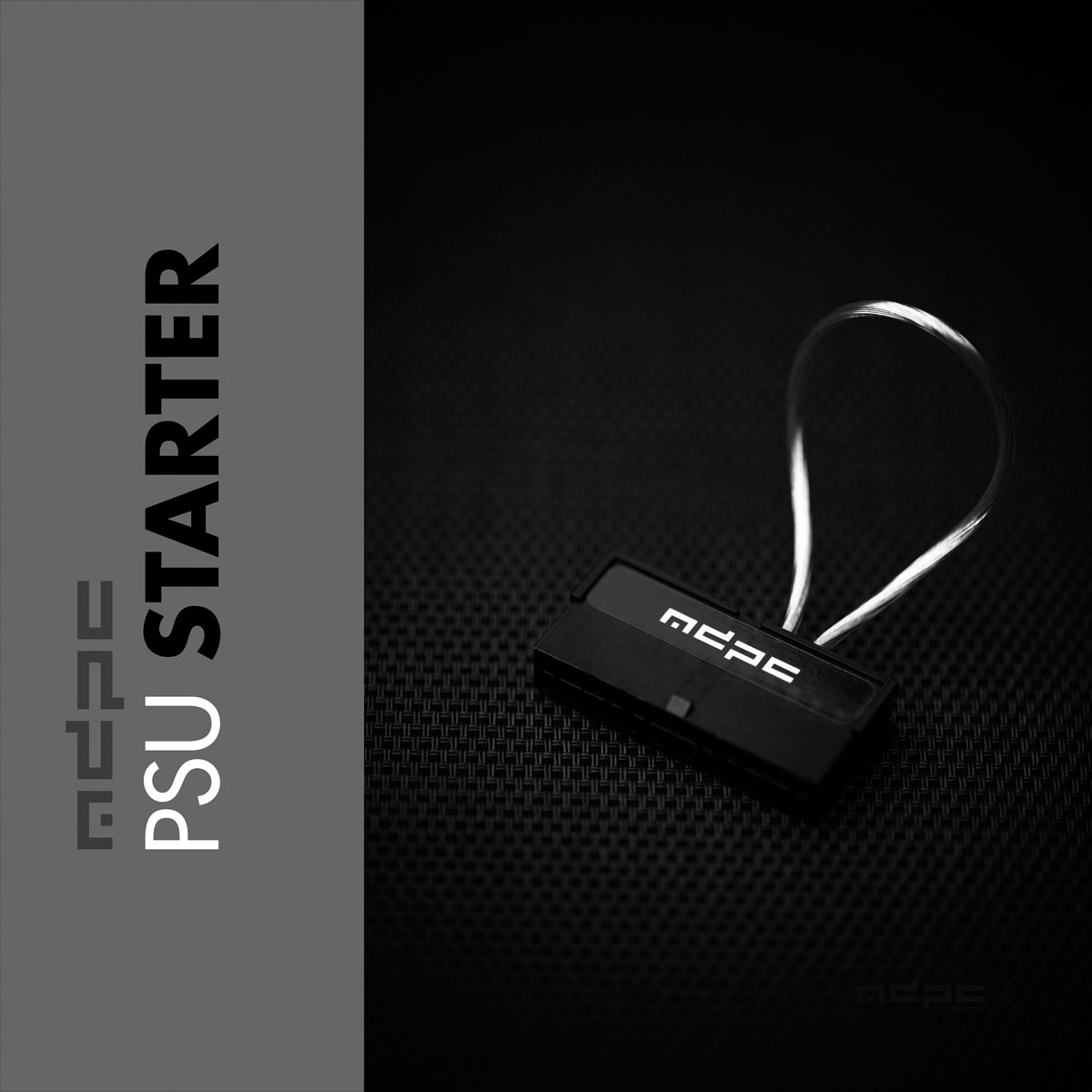

PSU Jump-Starter
The official MDPC-X PSU-Starter combines the best in quality: 24-pin ATX Housing, original 15-16 AWG crimp terminals by MOLEX (compatible with every 24-pin ATX connector), long MDPC-X 15 AWG silver wire and the white MDPC-X logo. This PSU jump starter is assembled in-house and crimped with the MDPC-X CTX3 crimper. Enjoy the maximum in quality, even when it comes to a simple PSU jump starter. With the PSU-Starter you can start and run your PC power-supply, without having it connected to your motherboard. The 24-pin ATX connector of your power-supply is simply connected to the PSU-Starter and then you can turn the power supply on. A power supply jump start is often used for testing purposes and especially for powering a liquid cooling pump in order to fill your liquid cooling loop.
