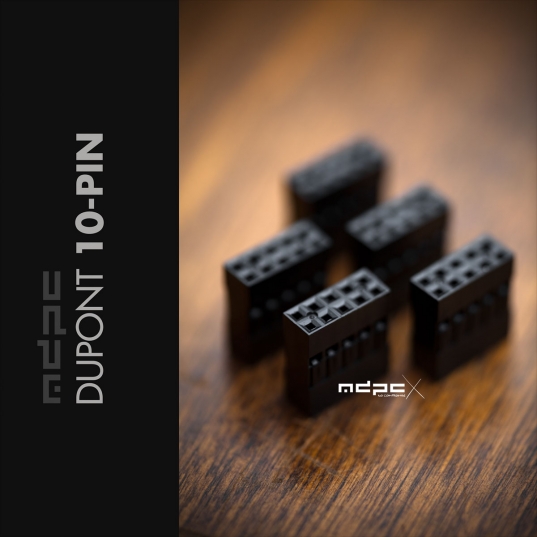

10-pin DUPONT connectors have 2 rows with 5 slots. These 10-pin DUPONT connectors are typically used for all internal motherboard sockets with a 2.54 mm grid. You can also get the DUPONT crimp terminals here at MDPC-X.
Our MEDIUM size cable sleeves go over the 10-pin DUPONT connectors. You will typically use the 10-pin DUPONT connectors as internal USB connectors, internal AUDIO connectors and similar ones. DUPONT connectors and DUPONT crimp terminals are also used in many other non-PC applications, like flipper automats, RC-models etc.
The 10-pin DUPONT connectors are typically used with 26AWG (0.22 mm²) hookup wires - and of course with our more advanced 23AWG (0.25 mm²) hookup wire.
It is very easy to remove wires from DUPONT connectors:
- You will only need a small screwdriver, scissor, knife or similar small device with a thin tip.
- Carefully pull up the small "flap" on the top of the DUPONT connector.
- While the "flap" is pulled up, you pull out the wire. Very simple!
