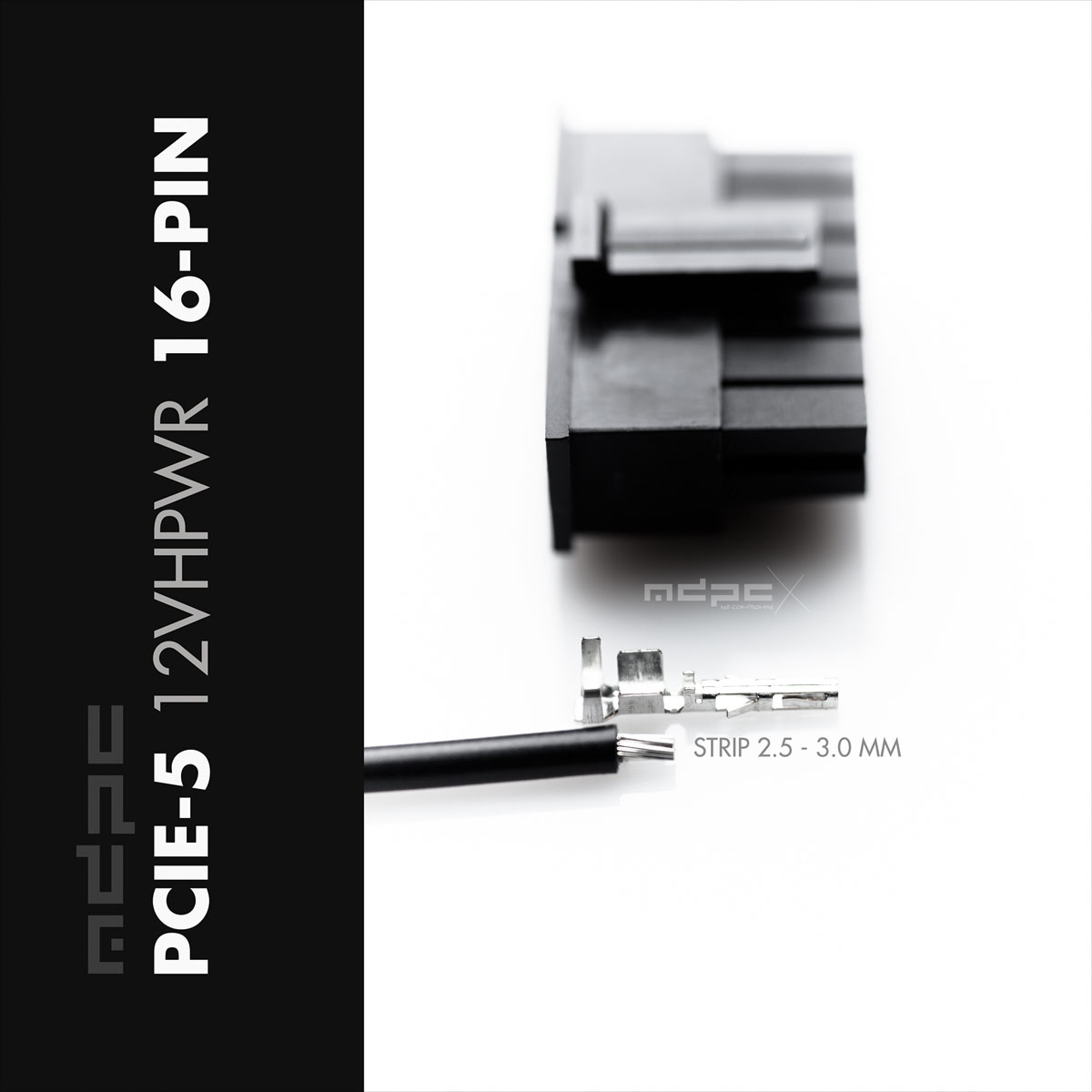

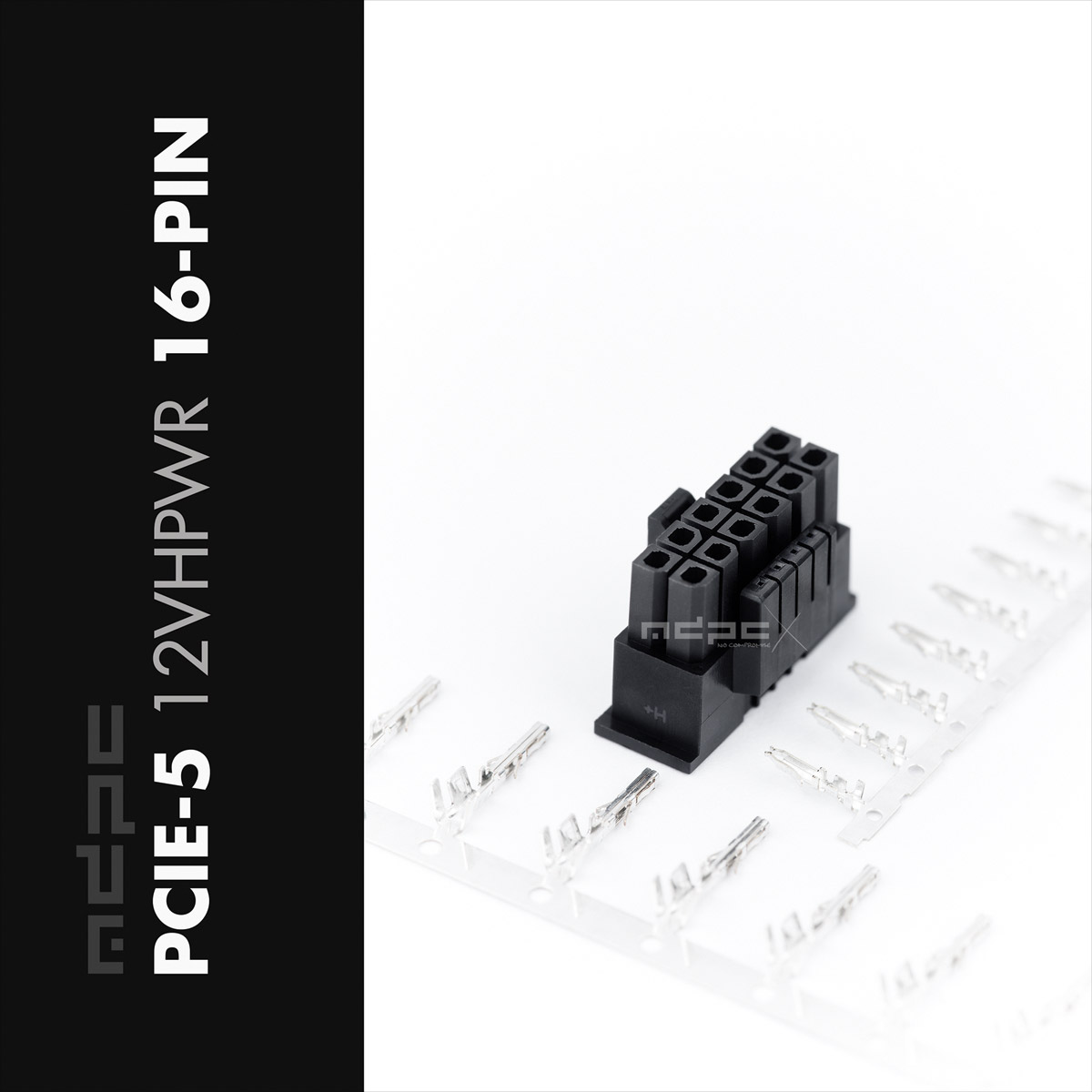

This original 12VHPWR connector by Amphenol is compatible with 12VHPWR (PCIe-5.0) and 12V-2x6 (PCIe-5.1) PCB-headers on your GPU. The difference between the two names refers to the PCB-header versions on the card itself. The connector is fully compatible with both versions. Make your own PCIe-5 custom cables, as shown in our PCIe-5 12VHPWR custom cable guide: You don't need to sleeve the cables, but you should at least make the cables yourself to fully control their perfect technical quality and lengths, so you don't depend on others! The original Amphenol 12VHPWR crimp terminals feature the single-seam (not the potentially unsafe 2 seams) design and additionally a spring type design (not the potentially unsafe dimple design) in horizontal alignment and a maximum contact area / flat surface vertically - without any contact area reducing dimples! The 12VHPWR connector features 12-pins for electrical power and 4-pins for side-band information. When you order one (1) connector, you will also get twice the amount (24) of needed electrical power crimp terminals and twice the amount (8) of needed signal / side-band crimp terminals, allowing you to learn and practice crimping these smaller than usual (compared to ATX and common PCI-Express) crimp terminals. Important knowledge about making custom cables with the new PCIe 5, 12VHPWR connector standard: Have a look at our PCIe-5 12VHPWR custom cable guide Due to the smaller sizes in every aspect, pin to pin distance (pitch) of 3.00 mm (regular ATX / PCIe = 4.20 mm), a narrower wire insertion slot width of only 2.7 mm and smaller sized crimp terminals, you are much more limited with your choice of wire. The maximum outer diameter of your wire for the power crimp terminals can not exceed 2.7 mm, including the crimp terminal material on top of your wire insulation! The signal / side band crimp terminals are used with 23-AWG or 26-AWG wire (see gallery image for crimping technique tips). For the power wires, we recommend wire with a maximum outer diameter of 2.0 mm or less, for example a very high quality 17 AWG wire. A 16 AWG wire, as recommended in the PCIe 5 specs, will often result in imperfect crimps, which is a potential risk for your hardware. 18 AWG would be too far away from original specs in terms of electrical capacities and shouldn't be used if you don't want to risk your hardware. The gallery shows how to crimp such a wire with our CTX-3 crimping tool. Insert the empty crimp terminal into the smallest slot, close the handles only to the first stop. Strip the wire on a length between 2.5 to 3.0 mm. Insert the stripped wire correctly into the rear of the crimp terminal (as described in the gallery of the CTX-3 crimp tool). Close the handles of the crimping tool until there is good physical resistance, but not as far as the crimping tool can close! Use the "pre-opening technique" for the crimp tool, by using the little lever on the inner side of the bottom handle, as described in the CTX-3 product description text. Insert the crimped wire into the rear of the connector. As always: The top of the crimp terminal faces to the top of the connector. The top of the connector is on the side where the retention lock is. If you want to sleeve the wires "shrinkless", with the wire going into the connector, as shown in our PCIe-5 12VHPWR custom cable guide, you will use our MICRO sleeve, our 17-AWG wires (18 AWG would be too low in terms of electrical performance) and our transparent MICRO heat-shrink (to melt the sleeving perfectly). Removing / extracting the crimp terminals from the connector: Just pull with enough force in the direction of the wire. Before you re-insert the wire into the connector, make sure to re-bend the retention hooks on the terminal to its original position. Don't do this too often, as the fine structure of the hook might take damage. Enjoy the original PCI-Express Gen 5, 12VHPWR 16-pin connector and your custom PCIe 5 cables!

As thin as possible! Made for MICRO sleeving: Choose our black EXTREME wire 17-AWG / 1.00 mm² with an outer diameter of only 1.7 mm if the last fraction of a millimeter matters for your project. This EXTREME wire is the ultimate choice when it comes to minimizing the outer diameter, while keeping up a maximum of electrical performance. In case you want to create custom sleeved cables for the PCIe-5 12VHPWR connectors, this wire will make it as easy as possible in combination with our MICRO sleeve. This wire is slightly stiffer than our regular 17 AWG wire. Highest quality tinned copper stranded conductors, a very beautiful high gloss and high heat resistant insulation free of prints and markings, 100% made in Germany! Use black wire for all dark shade cable sleevings, to support the darkness of these. Technical Data: Stranded wire Tinned copper Black Copolymer Insulation -45°C to 125°C temperature range. Once braided with MDPC-X cable sleeving it is resistant from -58°C to +155°C. Short term peaks of 215°C can then also be handled without structural degradation Constant operating voltage: 900V, Test voltage 2.500V Electrical resistance per kilometer: max 18.5 Ohm Attention: Hook-up wire is a relatively heavy item. It can quickly raise the weight based shipping cost to the next level.

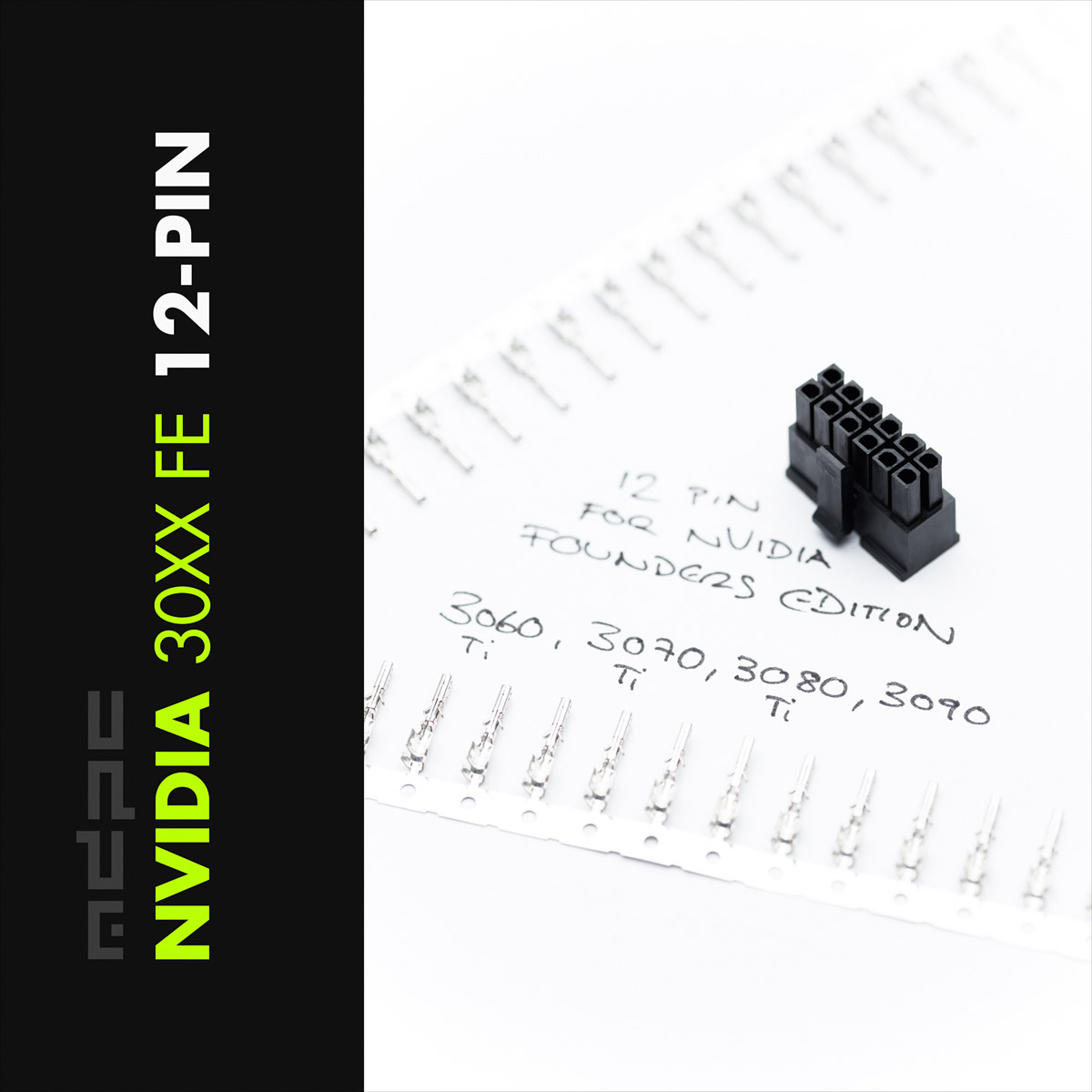

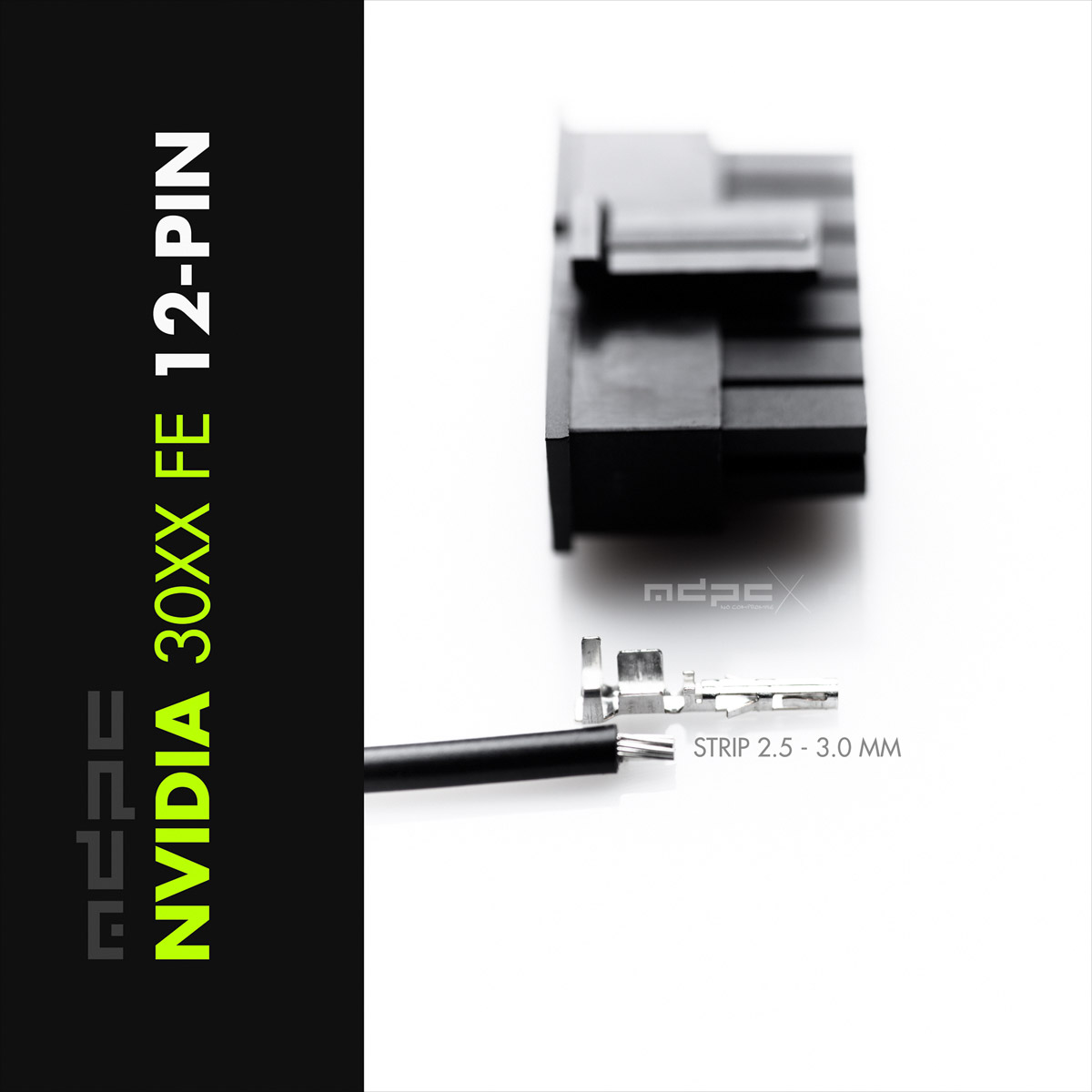

Make your own custom cables for this 12-pin nVidia micro-fit connector, as you learn in our nVidia 12-pin micro-fit custom cable guide. This is the 12-pin connector for nVidia FE (founders edition) GPU. This Micro-Fit 3.0 12-pin connector can be used with the following nVidia FE models: 3060, 3060ti, 3070, 3070ti, 3080, 3080ti, 3090. One 12-pin Micro-Fit 3.0 connector comes with 24 crimp terminals, twice as many as you need per connector. This will allow you to re-crimp if things go wrong during crimping.   Important knowledge about making custom cables with the 12-pin connector for nVidia FE (founders edition) Have a look at our nVidia 12-pin micro-fit custom cable guide Due to the smaller sizes in every aspect, pin to pin distance (pitch) of 3.00 mm (regular ATX / PCIe = 4.20 mm), a narrower wire insertion slot width of only 2.7 mm and smaller sized crimp terminals, you are much more limited with your choice of wire. The maximum outer diameter of your wire for the power crimp terminals can not exceed 2.7 mm, including the crimp terminal material on top of your wire insulation! The signal / side band crimp terminals are used with 23-AWG or 26-AWG wire (see gallery image for crimping technique tips). For the power wires, we recommend wire with a maximum outer diameter of 2.0 mm or less, for example a very high quality 17 AWG wire. A 16 AWG wire, as recommended in the PCIe 5 specs, will often result in imperfect crimps, which is a potential risk for your hardware. 18 AWG would be too far away from original specs in terms of electrical capacities and shouldn't be used if you don't want to risk your hardware. The gallery shows how to crimp such a wire with our CTX-3 crimping tool. Insert the empty crimp terminal into the smallest slot, close the handles only to the first stop. Strip the wire on a length between 2.5 to 3.0 mm. Insert the stripped wire correctly into the rear of the crimp terminal (as described in the gallery of the CTX-3 crimp tool). Close the handles of the crimping tool until there is good physical resistance, but not as far as the crimping tool can close! Use the "pre-opening technique" for the crimp tool, by using the little lever on the inner side of the bottom handle, as described in the CTX-3 product description text. Insert the crimped wire into the rear of the connector. As always: The top of the crimp terminal faces to the top of the connector. The top of the connector is on the side where the retention lock is. If you want to sleeve the wires "shrinkless", with the wire going into the connector, as shown in our PCIe-5 12VHPWR custom cable guide, you will use our MICRO sleeve, our 17-AWG wires (18 AWG would be too low in terms of electrical performance) and our transparent MICRO heat-shrink (to melt the sleeving perfectly). Removing / extracting the crimp terminals from the connector will work slightly different from what you have learned with regular ATX / PCIe: You only insert one tip of the extraction tool (you can also use a needle) on one outer side of the crimp terminal at a time. After insertion and removal of the extraction tool tip, it has permanently pushed the small retention hook on the side of the terminal inwards. This hook doesn't hold the terminal in place on this side anymore. Repeat the same procedure on the other side (other retention hook) and you can pull out the wire. Before you re-insert the wire into the connector, make sure to re-bend the retention hooks on the terminal to its original position. Don't do this too often, as the fine structure of the hook might take damage. Enjoy the original 12-pin connector for nVidia FE (founders edition) GPU 30xx (and Ti) series!

As thin as possible! Made for MICRO sleeving: Choose our grey EXTREME wire 17-AWG / 1.00 mm² with an outer diameter of only 1.7 mm if the last fraction of a millimeter matters for your project. This EXTREME wire is the ultimate choice when it comes to minimizing the outer diameter, while keeping up a maximum of electrical performance. In case you want to create custom sleeved cables for the PCIe-5 12VHPWR connectors, this wire will make it as easy as possible in combination with our MICRO sleeve. This wire is slightly stiffer than our regular 17 AWG wire. Highest quality tinned copper stranded conductors, a very beautiful high gloss and high heat resistant insulation free of prints and markings, 100% made in Germany! You can use grey wire for all medium grey shade cable sleevings, to support the final looks. It can also be used to slightly darken the brightest colors. Technical Data: Stranded wire Tinned copper Grey Copolymer Insulation -45°C to 125°C temperature range. Once braided with MDPC-X cable sleeving it is resistant from -58°C to +155°C. Short term peaks of 215°C can then also be handled without structural degradation Constant operating voltage: 900V, Test voltage 2.500V Electrical resistance per kilometer: max 18.5 Ohm Attention: Hook-up wire is a relatively heavy item. It can quickly raise the weight based shipping cost to the next level.
