4-pin FAN Connector

60x FAN FEMALE crimp terminals per 1 ordered unit for our fan CONNECTORS: These are the highest quality female crimp terminals for fan cables, fan connectors and devices which use PC motherboard onboard fan connectors for their function. You can use these FAN crimp terminals on all common wire sizes, which you find e. g. in PC / computer systems that connect to onboard fan connectors. Crimping of these female FAN crimp terminals on our 23AWG (0.25mm²) hookup wire or standard 26AWG (0.22 mm²) electrical wire will be perfect. MDPC-X recommends electrical wire with PVC insulation for crimping female FAN crimp terminals. You can find electrical wire here at MDPC-X and at some of our MDPC-X Stores around the world or in shops for electrical supplies. Combine these female FAN crimp terminals with our legendary Crimping Tool for FAN crimp terminals and you will have the full joy of shortening or building your own cables. A relatively small investment into absolute freedom in the world of creativity, cable sleeving and technology.

If you want to bundle 2 of these wires into one sleeve, choose MICRO sleeve. If you want to bundle 3 or more wires, choose XTC sleeve. Black hookup wire is perfect to slightly tone down light cable sleeving colors. It's typically used with black sleeving and carbon sleevings, which include black. Stranded 23 AWG hook-up wire Black, of course 100% tinned copper, no markings and coming as a beautiful large inner diameter ring to prevent spiral shaping as much as technically possible. Stranded 23 AWG hook-up wire comes with an outer diameter of only 1.30 mm. Maximized conductor size for lowest resistance, minimized outer diameter: This is the uncompromising MDPC-X 23 AWG hook-up wire Black, of course 100% made in Germany. What's better than a high cross-sectional diameter? An even higher one! The bigger the cross-sectional diameter, the lower the electrical resistance. Heating issues at high load? Not anymore! 28 AWG or 26 AWG is the typical size in the PC industry for cooling fans and the internal wiring of internal Audio, Front-Panel, USB, Fan, LED etc. ... until now. MDPC-X raises the bar to a far bigger conductor size of 23 AWG, because we can. The outer diameter of only 1.30 mm allows you to use 23 AWG now in the same way as you used 28/28/24 AWG before - without any troubles getting the wires into the connectors. It is the perfect wire for all our small crimp terminals (fans, internal 2.54 grid, "duPont" etc.). This wire will not be exceeded anymore in electrical performance for these smaller connections. This is the maximum - ahead of the industry. Technical Data: This wire comes in rings of 10 meter lengths Tinned copper conductor in PVC insulation according to VDE 0812 -30°C to 80°C PVC insulation, flame resistant according to VDE 0482-332-1-2. Once braided with MDPC-X cable sleeving it is resistant from -58°C to +155°C. Short term peaks of 215°C can then also be handled without structural degradation Constant operating voltage: 600V, Test voltage 1.200V Electrical resistance per kilometer: max 79.9 Ohm Attention: Hook-up wire is a relatively heavy item. It can quickly raise the weight based shipping cost to the next level.

New since 23rd May 2023: This is the custom CTX-4 MDPC-X crimping tool for our 15th anniversary of MDPC-X. The CTX-4 replaces our CTX-3 crimper. This unique crimping-tool is specifically optimized to create the ideal crimp-terminal shapes for your custom sleeved cables. This MDPC-X crimping tool is specifically made for the following wire sizes: Biggest Opening: 16-15 AWG (European: ~1.2 mm² to 1.5 mm²) 2nd biggest opening: 20-18-17 AWG (European: ~0.5 mm², 0.75 mm², 1.0mm²) 3rd and 4th opening: 23-26 AWG (European: ~0.14 to 0.25 mm²) CTX-4 | Optimized for no compromise Based on our experiences with crimping tool optimizations since 2007 (CT-1, CT-2 and CTX-3), the CTX-4 is the latest and likely final MDPC-X crimper for (open barrell) crimp terminals like the ones used for ATX, PCIe, Dupont, Fan, Fat-4, Mini-Fit, Micro-Fit, 12VHPWR etc. The jaws of the CTX-4 feature a short 4th position, which is ideal for shorter than normal crimp terminals: 12VHPWR signal pins and similar very small and short crimp terminals. The 2 openings for 16-15 AWG (~1.2 to 1.5 mm²) and 20-18-17 AWG (~0.5, 0.75 to 1.0 mm²) wires and terminals feature the unique MDPC-X anvil designs. These special openings create perfect crimp terminal shapes for custom sleeved cables: There's maximum pressure force on the conductor section BUT the insulation section of your wire and crimp-terminal stays in a fully round shape, not squeezed wider than high! This ideal roundness of your wire and terminal will keep the weave structure of the cable sleeving in a perfectly symmetrical condition during the whole sleeving process. After fabrication, each tool is tested for this specific performance in both openings and the 2 individual test-crimp-terminals are provided with your tool. Enjoy the ease of creating your own uncompromising custom cables with everything from MDPC-X! Crimping guide and tutorial for the MDPC-X crimping tool: Please have a look at the image gallery of this crimping tool. It gives you a full understanding about the procedures and important details of crimp terminal positioning. You open the crimping tool by "closing" it. Just press the handles together and the ratchet mechanism will release the lock. Place the crimp terminal into one of the 4 slots with the matching size for terminal and wire. The front of the crimp terminal must stick out of the jaws-rear far enough (the images explain it best). This is the most important aspect! Close the tool a little bit until it squeezes down the rear-wings of the crimp terminal (the so called "insulation holders"). Now push the uninsulated wire into the rear of the crimp terminal until the insulation stops at the narrow part in the middle of the crimp terminal (the so called "wire core holder"). The images show exactly what is meant. Insulation holder of the terminal is fully over the insulation, wire holder is completely over the uninsulated wire core. Now fully close the tool and it will "open" again when fully squeezed together. Done! You can always "pre-open" the tool by pushing the small lever (on the inside of the bottom handle) towards the front of the tool, while slightly pressing the handles together. If you experience that the front of a crimp terminal turns upwards or downwards, just place a finger underneath the crimp terminal front, which sticks out of the tool. Easy!

If you want to bundle 2 of these wires into one sleeve, choose MICRO sleeve. If you want to bundle 3 or more wires, choose XTC sleeve. White hookup wire is perfect to maximize the intensity of all medium and light cable sleeving colors. Professionals often use White hookup wire for all cables. Stranded 23 AWG hook-up wire White, of course 100% tinned copper, no markings and coming as a beautiful large inner diameter ring to prevent spiral shaping as much as technically possible. Stranded 23 AWG hook-up wire comes with an outer diameter of only 1.30 mm. Maximized conductor size for lowest resistance, minimized outer diameter: This is the uncompromising MDPC-X 23 AWG hook-up wire White, of course 100% made in Germany. This light color is typically used as the base for the lightest color shades in our cable sleeving spectrum. What's better than a high cross-sectional diameter? An even higher one! The bigger the cross-sectional diameter, the lower the electrical resistance. Heating issues at high load? Not anymore! 28 AWG or 26 AWG is the typical size in the PC industry for cooling fans and the internal wiring of internal Audio, Front-Panel, USB, Fan, LED etc. ... until now. MDPC-X raises the bar to a far bigger conductor size of 23 AWG, because we can. The outer diameter of only 1.30 mm allows you to use 23 AWG now in the same way as you used 28/28/24 AWG before - without any troubles getting the wires into the connectors. It is the perfect wire for all our small crimp terminals (fans, internal 2.54 grid, "duPont" etc.). This wire will not be exceeded anymore in electrical performance for these smaller connections. This is the maximum - ahead of the industry. Technical Data: This wire comes in rings of 10 meter lengths Tinned copper conductor in PVC insulation according to VDE 0812 -30°C to 80°C PVC insulation, flame resistant according to VDE 0482-332-1-2. Once braided with MDPC-X cable sleeving it is resistant from -58°C to +155°C. Short term peaks of 215°C can then also be handled without structural degradation Constant operating voltage: 600V, Test voltage 1.200V Electrical resistance per kilometer: max 79.9 Ohm Attention: Hook-up wire is a relatively heavy item. It can quickly raise the weight based shipping cost to the next level.

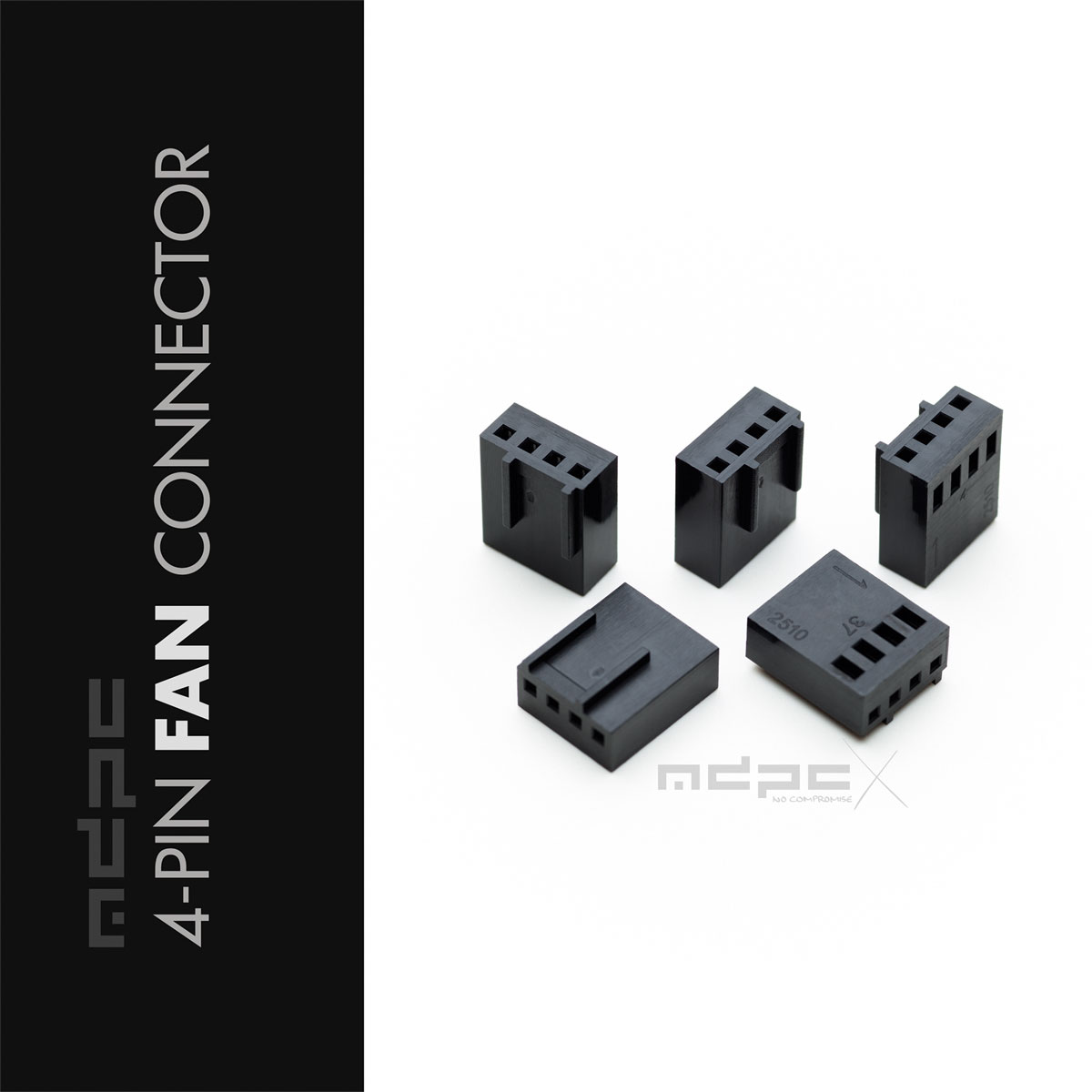

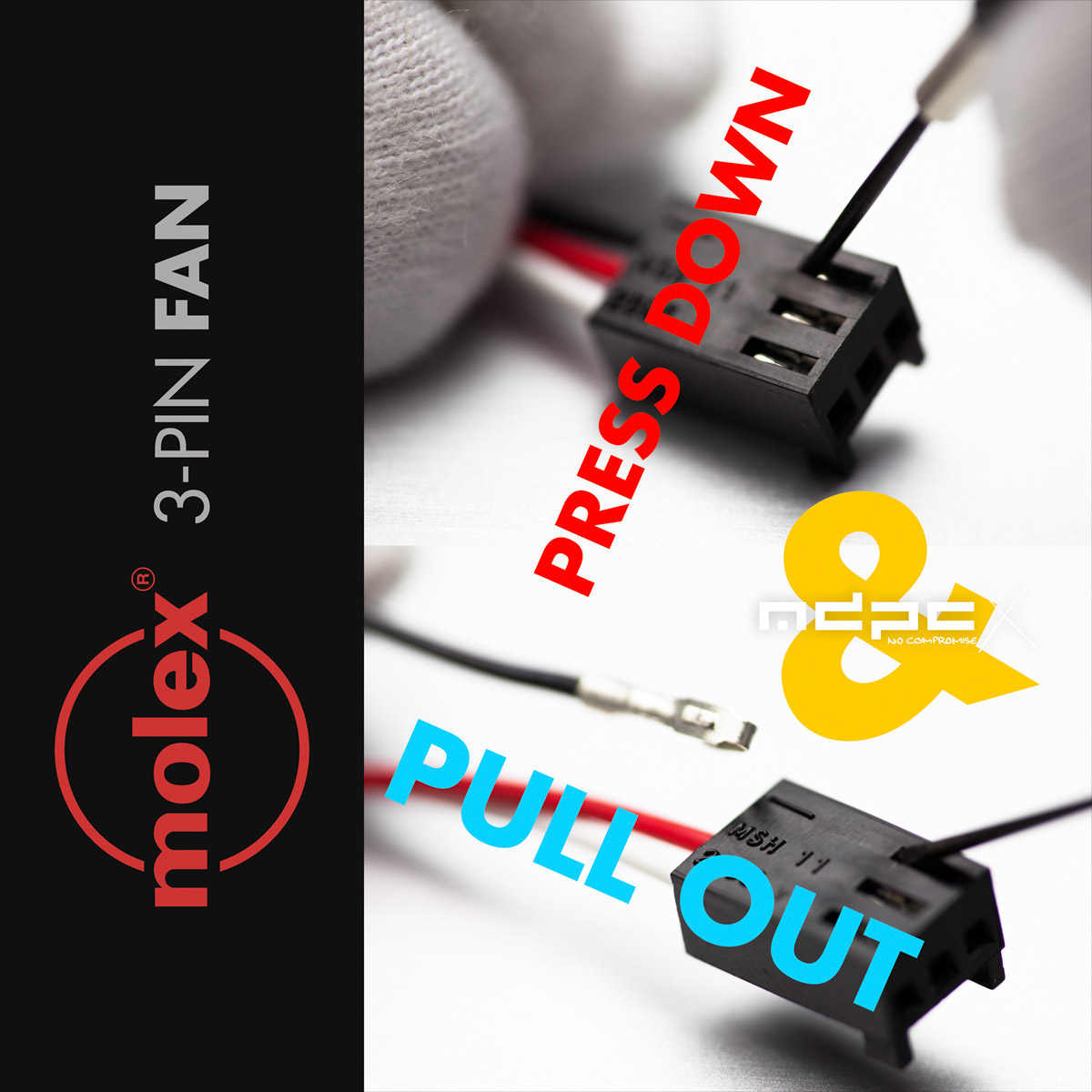

4-pin FAN Housing with 8 crimp terminals: This 4-pin fan housing can be used to extend fan cables and similar. It is compatible with 4-pin fan connectors (both types of locking ramps compatibility: Both ramps on outer positions or the "3-pin" positions) and also with 3-pin fan connectors! How to insert and extract the crimp terminals into and from your fan housing is shown in the additional gallery photos. We only offer the connectors in combination with the corresponding crimp terminals, to avoid any incompatibilities on your end. One connector needs 4 crimp terminals, but we add twice as much: Per connector you get 8 crimp terminals (e.g. 5 connectors come with 40 crimp terminals, 10 with 80 etc.). You crimp them in the smallest slot opening of our CTX-3 crimping tool. It works with wire ranging from 26 to 22 AWG and with a small trick (strip the wire longer, so you also crimp the "insulation crimp" onto the conductor too) you can also use them with our 17 AWG wire.
